Special Tool(s): Assembly

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the Center Support Bearing Installer, press a new bearing on the center support assembly.

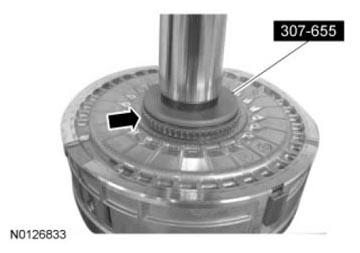

    Fig 1: Pressing Bearing On Center Support Assembly By Using Required Tools
    G07483382Courtesy of FORD MOTOR CO.
  2. Inspect the center support alignment lugs to be sure they are installed securely in the center support. If the center support alignment lugs are loose, use grease to hold them in place.

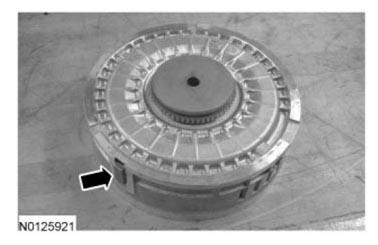

    Fig 2: Locating Center Support Alignment Lug
    G07483383Courtesy of FORD MOTOR CO.
