In-Vehicle Repair: Flexplate: Removal

WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - TORQSHIFT6 article.

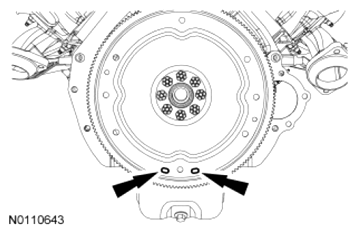

  2. Rotate the engine clockwise until the 2 slotted holes on the flexplate are at the 6 o'clock position as shown in illustration.
    Fig 1: Locating Flexplate Slotted Holes
    G07479588Courtesy of FORD MOTOR CO.
  3. Remove the 8 bolts and the flexplate.
    • Discard the 8 flexplate bolts.
