Pinpoint Test A: Shift Solenoid

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the TRANSAXLE INTERNAL HARNESS CONNECTOR illustration preceding these pinpoint tests.

NOTE: Refer to the TRANSAXLE VEHICLE HARNESS CONNECTOR illustration preceding these pinpoint tests.

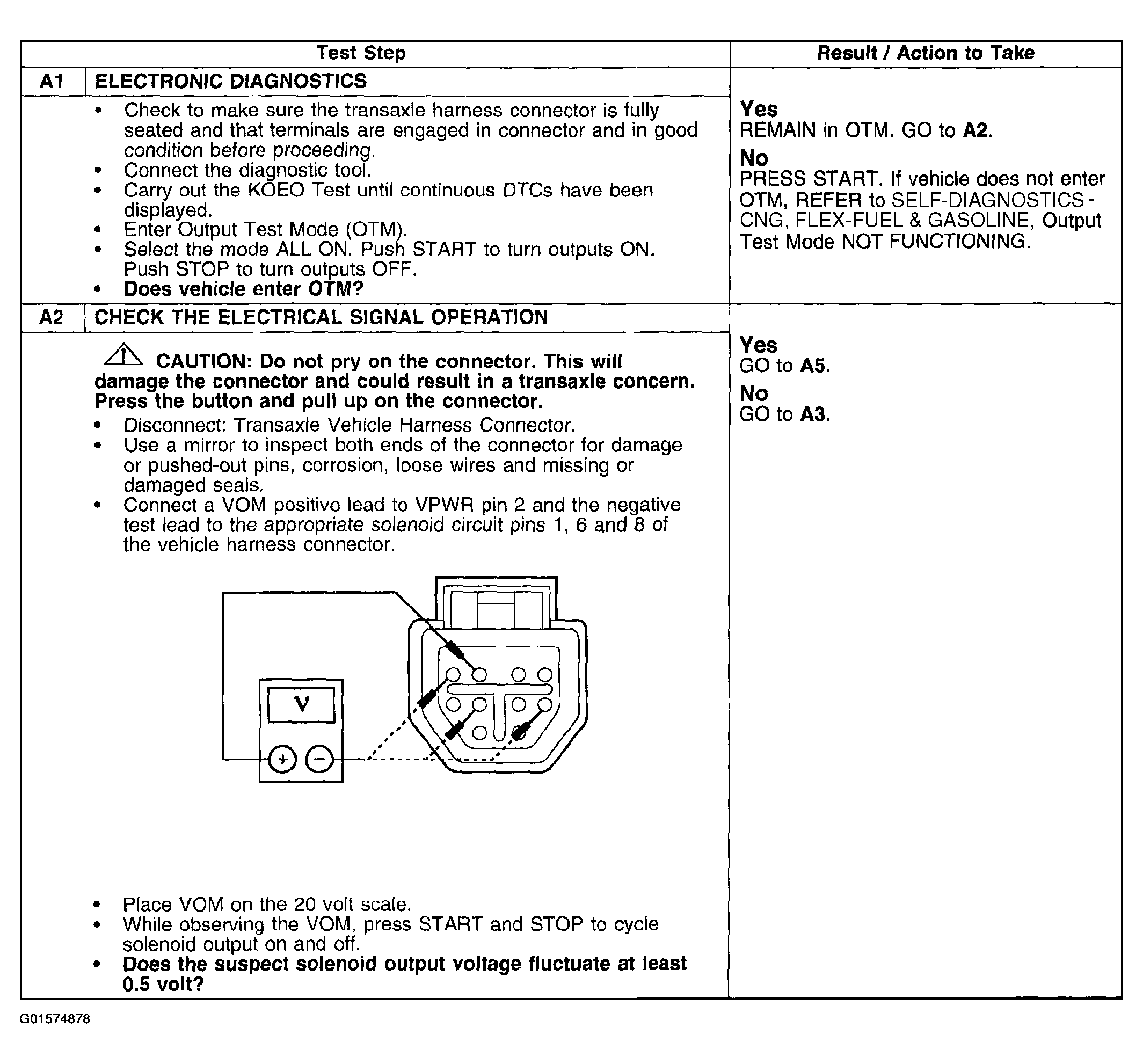

Fig 1: Pinpoint Test A: Shift Solenoid (Steps A1-A2)

Courtesy of FORD MOTOR CO.

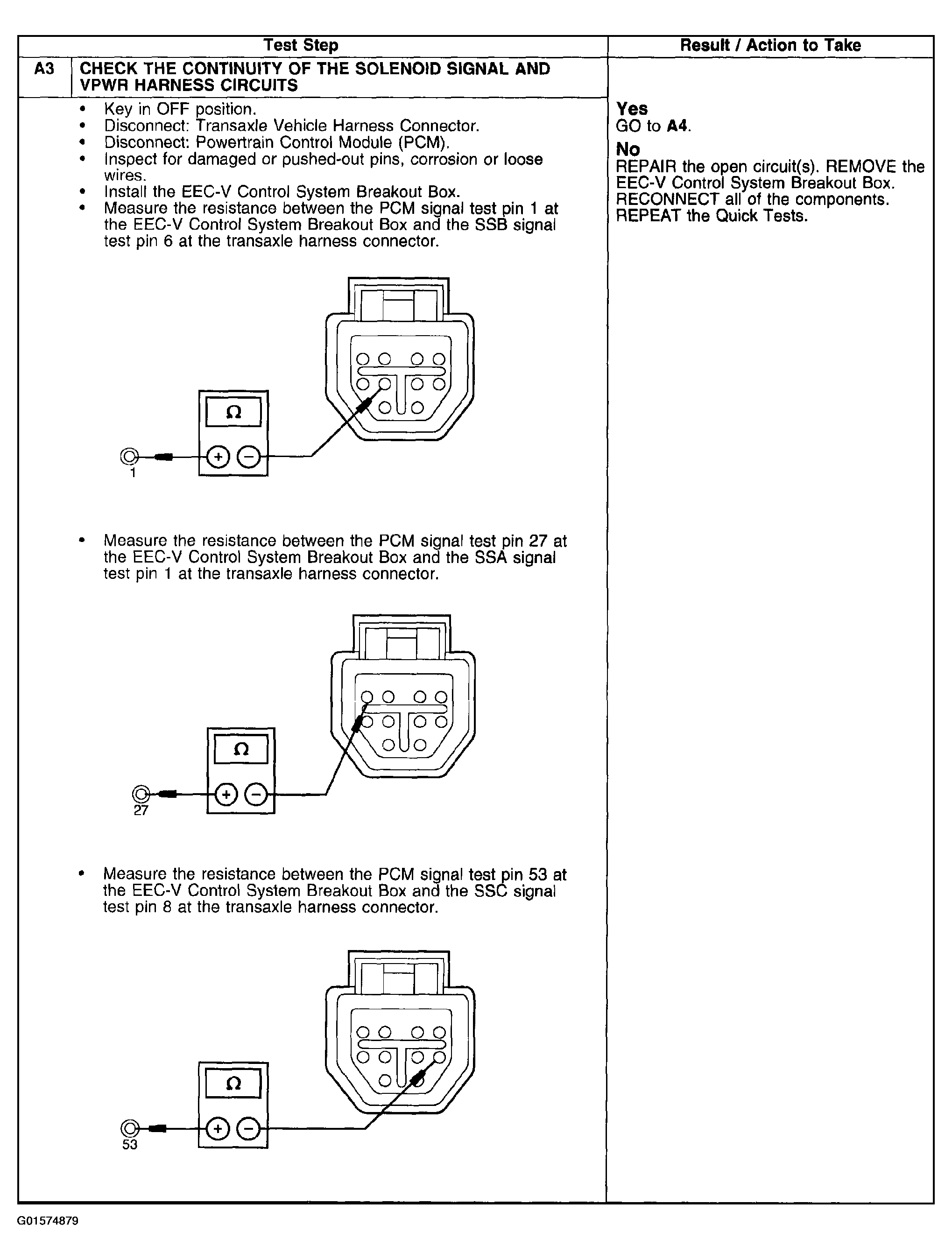

Fig 2: Pinpoint Test A: Shift Solenoid (Steps A3)

Courtesy of FORD MOTOR CO.

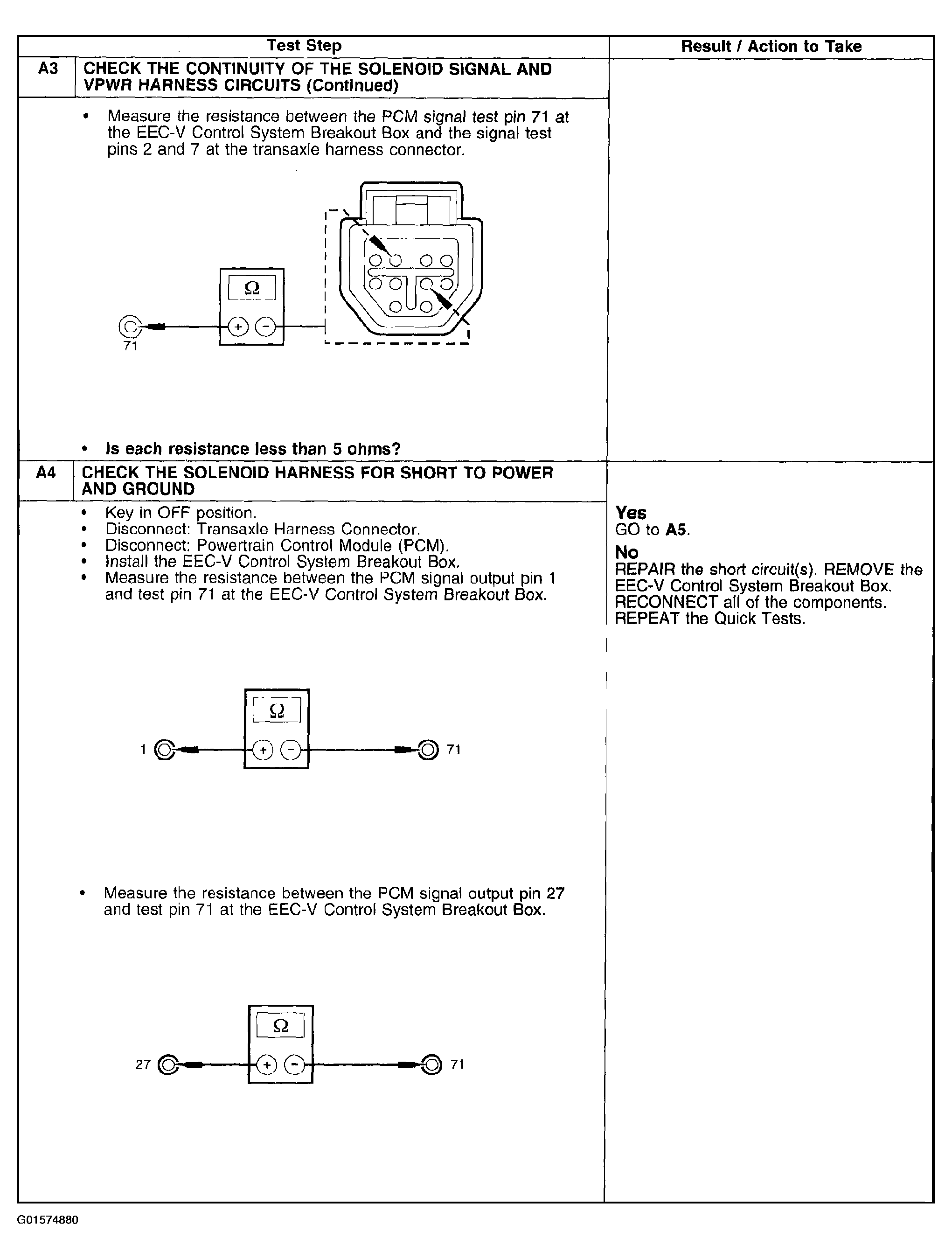

Fig 3: Pinpoint Test A: Shift Solenoid (Steps A3 Cont.-A4)

Courtesy of FORD MOTOR CO.

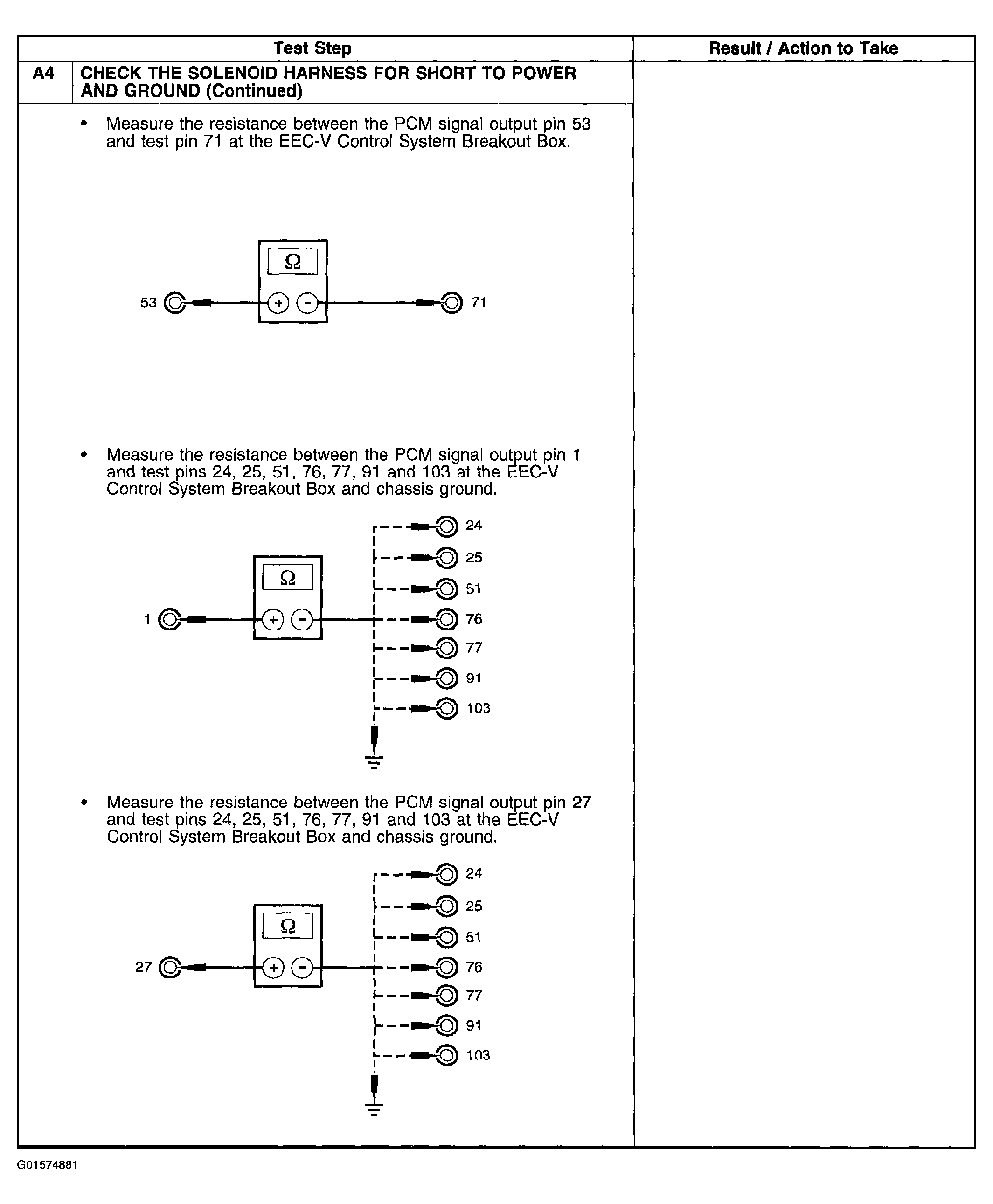

Fig 4: Pinpoint Test A: Shift Solenoid (Steps A4 Cont.)

Courtesy of FORD MOTOR CO.

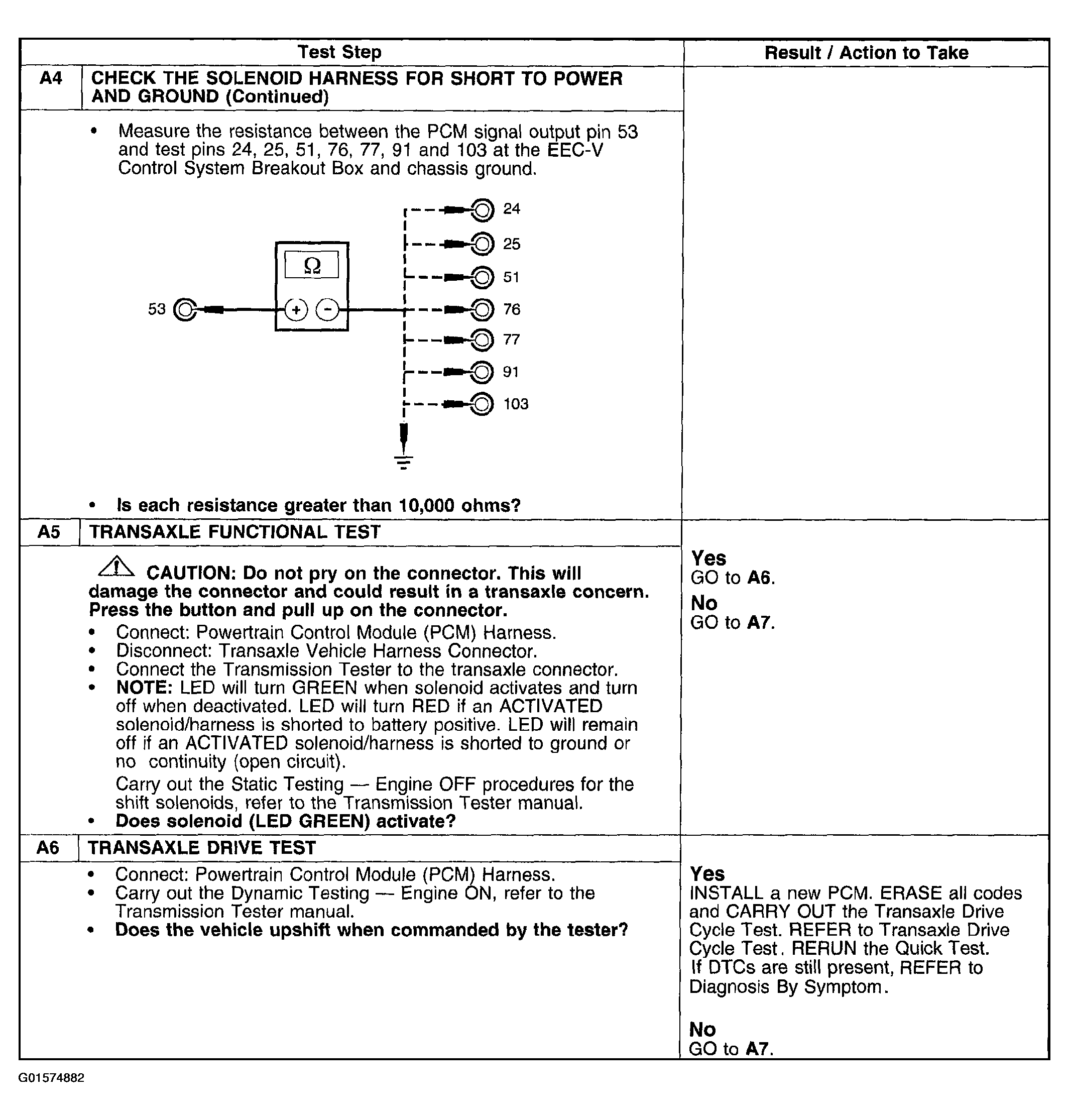

Fig 5: Pinpoint Test A: Shift Solenoid (Steps A4 Cont.-A6)

Courtesy of FORD MOTOR CO.

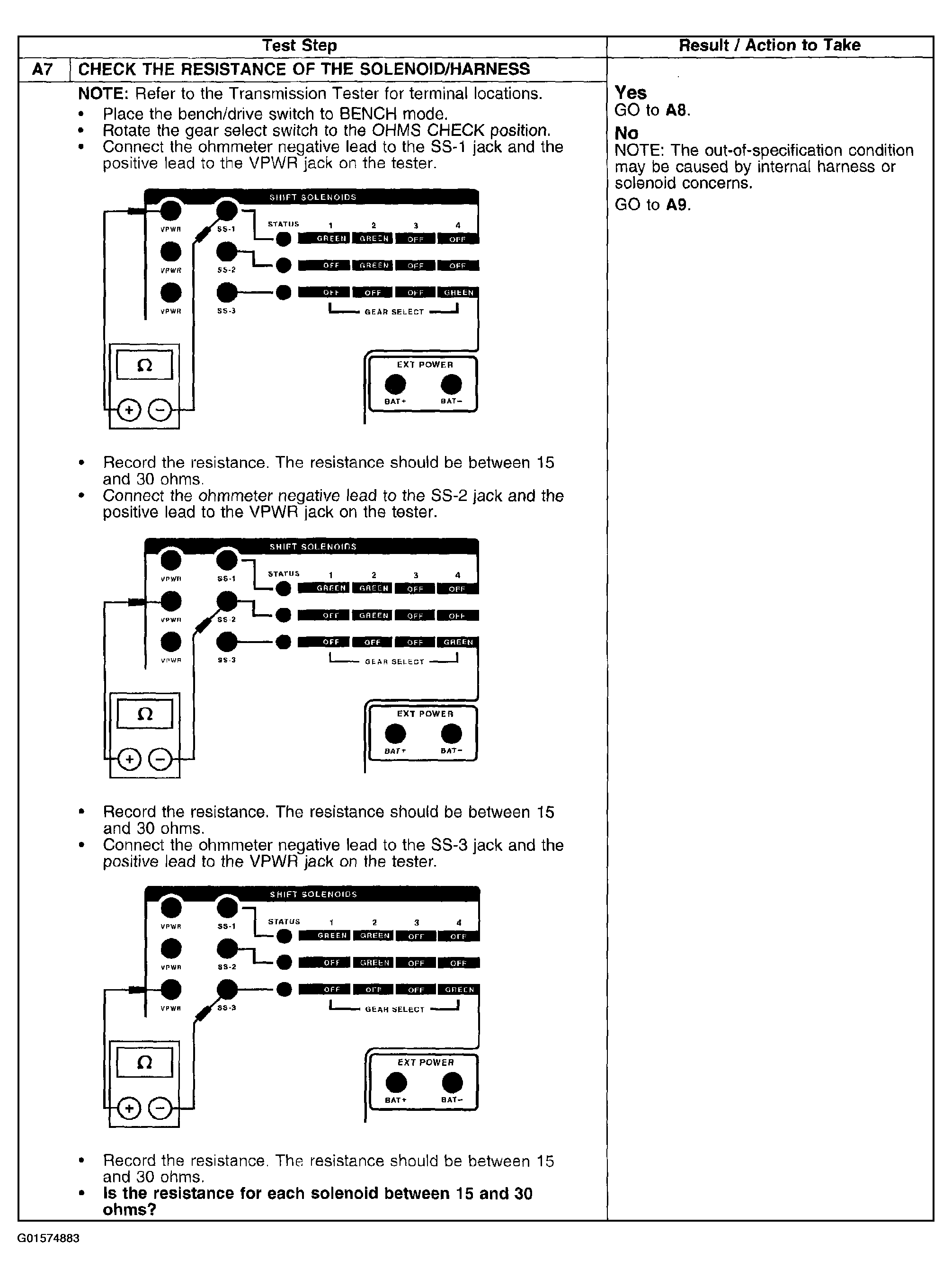

Fig 6: Pinpoint Test A: Shift Solenoid (Steps A7)

Courtesy of FORD MOTOR CO.

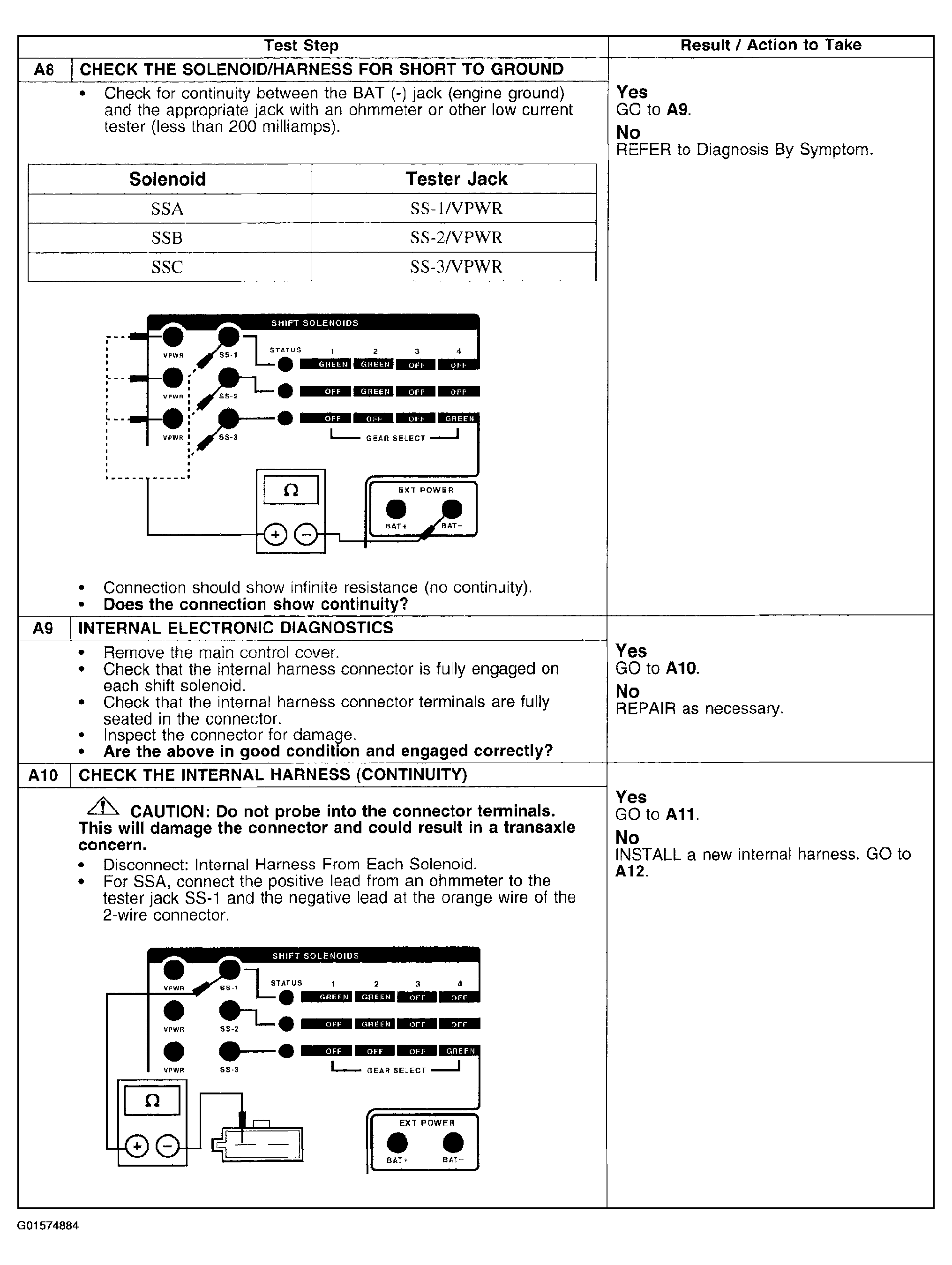

Fig 7: Pinpoint Test A: Shift Solenoid (Steps A8-A10)

Courtesy of FORD MOTOR CO.

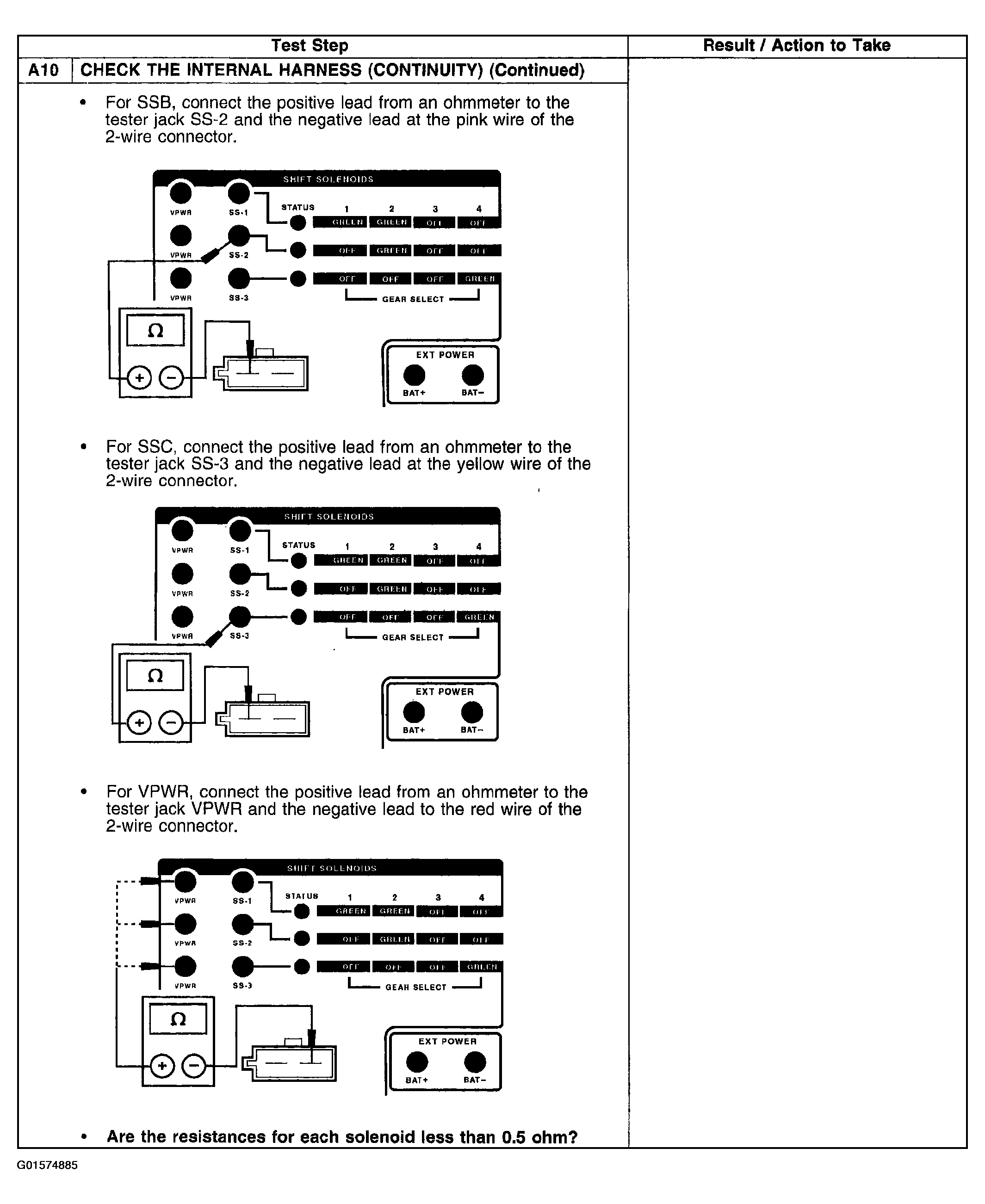

Fig 8: Pinpoint Test A: Shift Solenoid (Steps A10 Cont.)

Courtesy of FORD MOTOR CO.

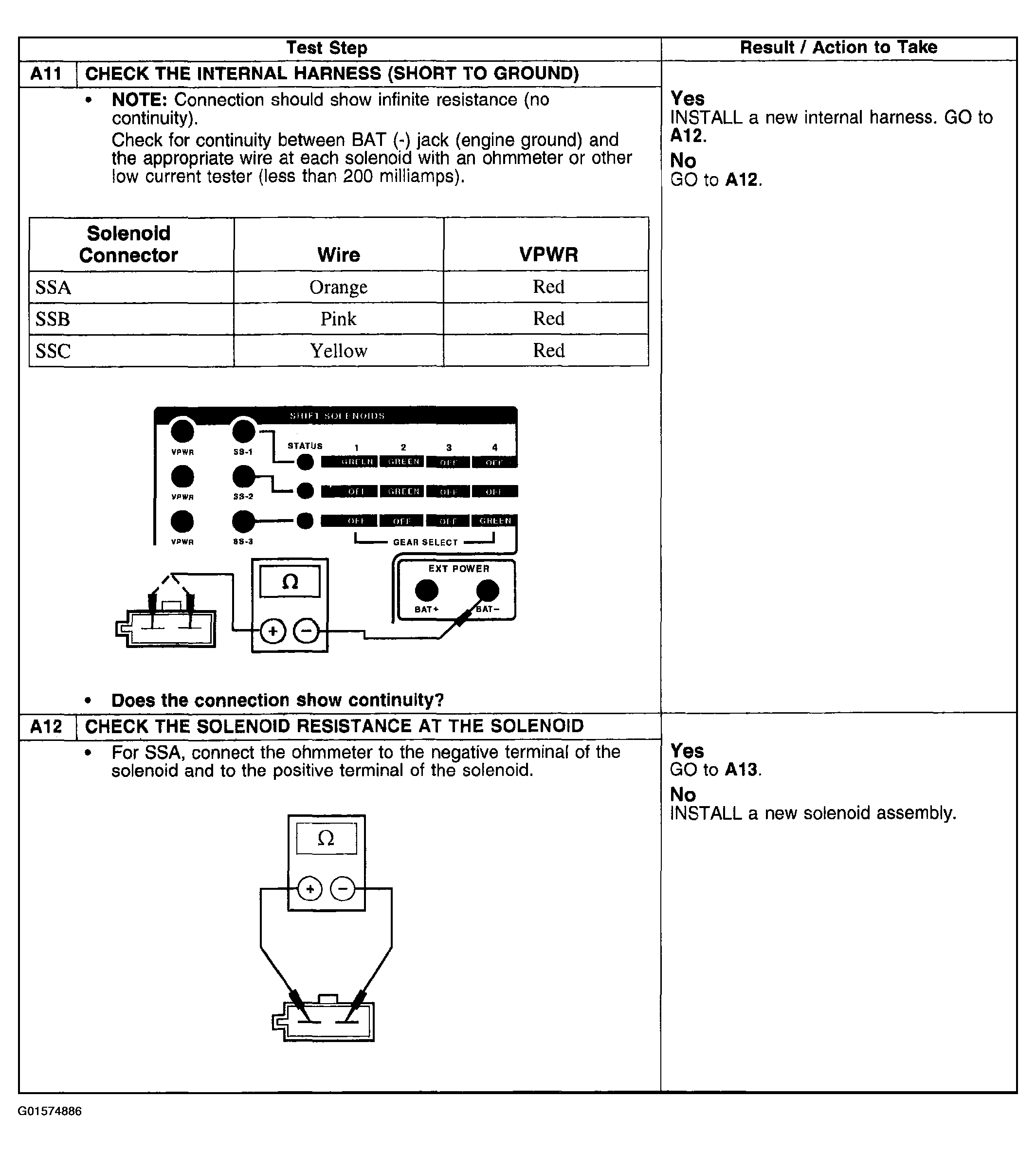

Fig 9: Pinpoint Test A: Shift Solenoid (Steps A11)

Courtesy of FORD MOTOR CO.

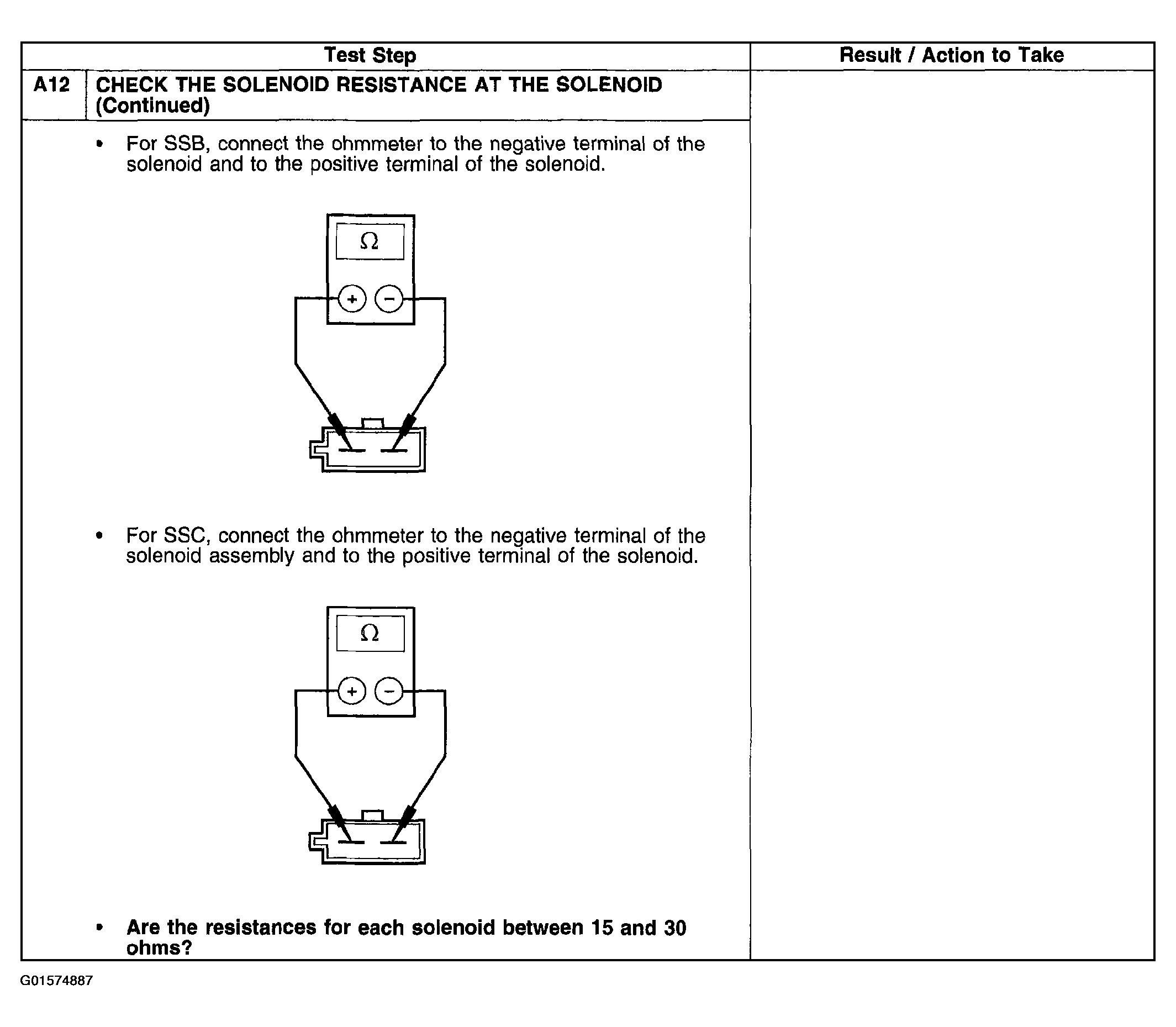

Fig 10: Pinpoint Test A: Shift Solenoid (Steps A12)

Courtesy of FORD MOTOR CO.

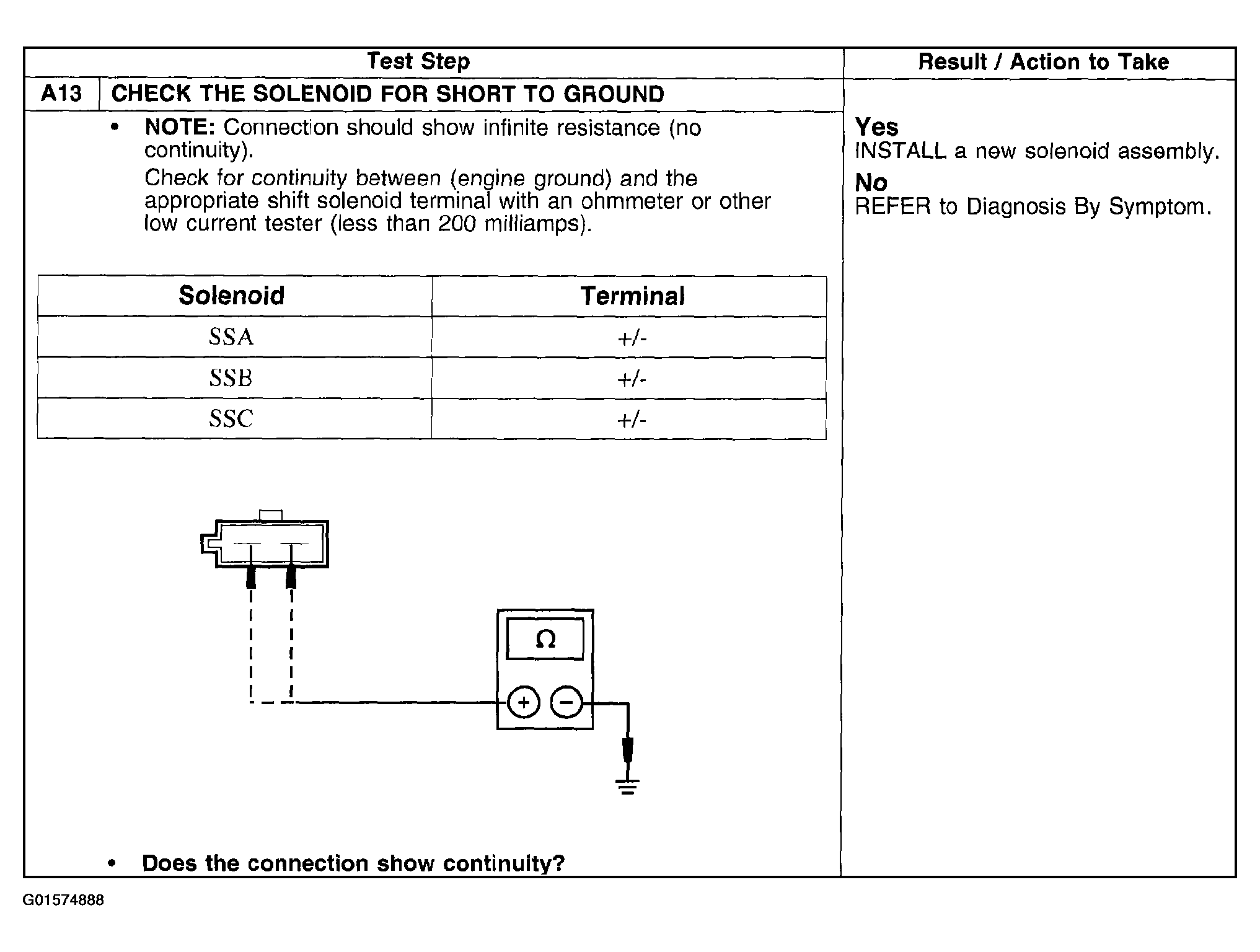

Fig 11: Pinpoint Test A: Shift Solenoid (Steps A13)

Courtesy of FORD MOTOR CO.
