Transaxle Internal Harness Connector

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

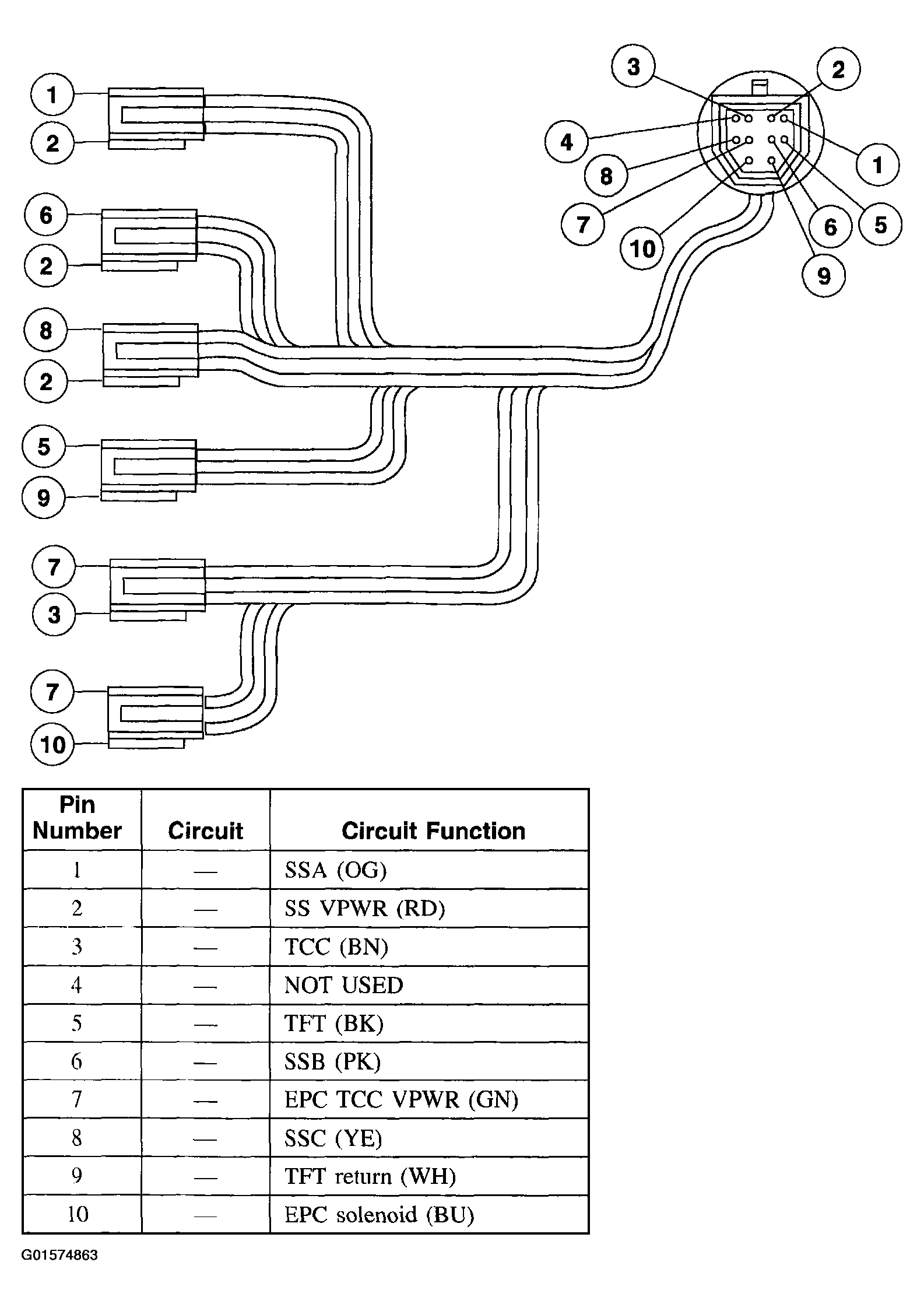

Fig 1: Identifying Transaxle Internal Harness Connector
G01574863Courtesy of FORD MOTOR CO.
