Recommended Procedure (Without Scan Tool)

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install a "T" (manufactured locally out of common fittings) into the Manifold Absolute Pressure (MAP) sensor line that comes from the intake manifold. See Fig 1. Make sure the MAP sensor is hooked up for this test. Connect a 0-30 psi gauge to "T" that is temporarily installed in the cab. Route the hose so that it is not crimped and does not come in contact with any hot surface. Operate vehicle as described in RECOMMENDED PROCEDURE.

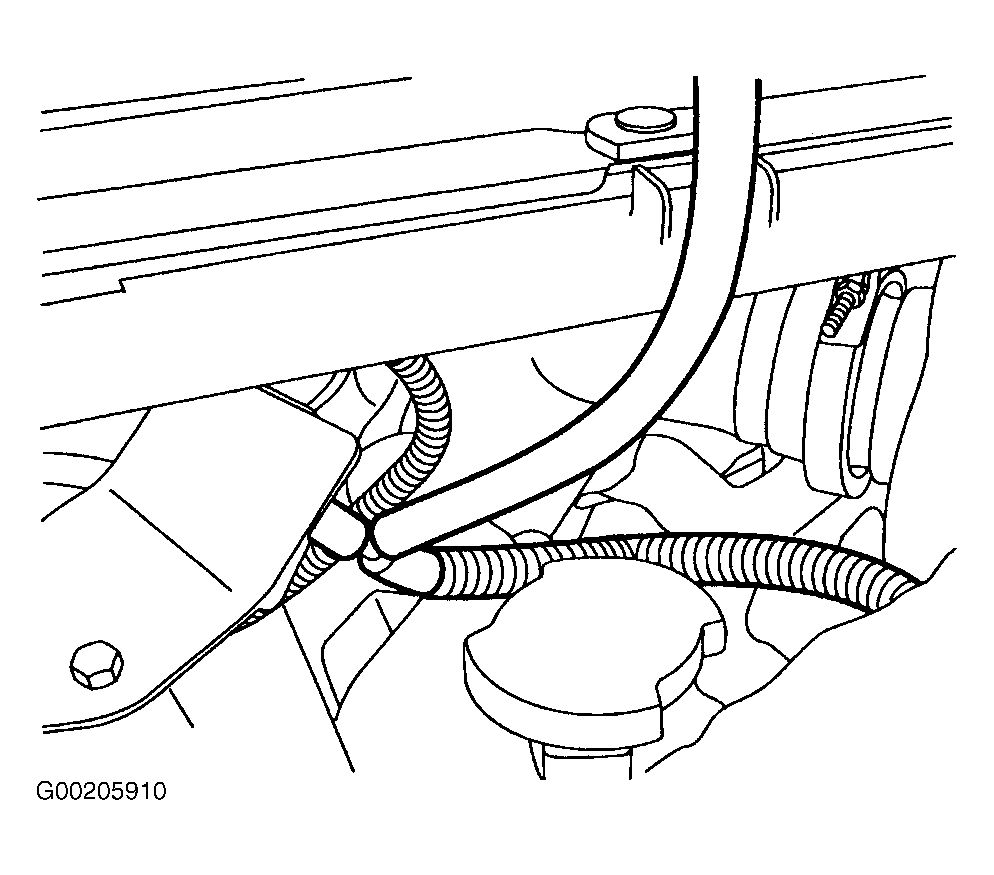

Fig 1: Installing "T" Fitting In MAP Sensor Hose
G00205910Courtesy of FORD MOTOR CO.
