Component Locations: Notes

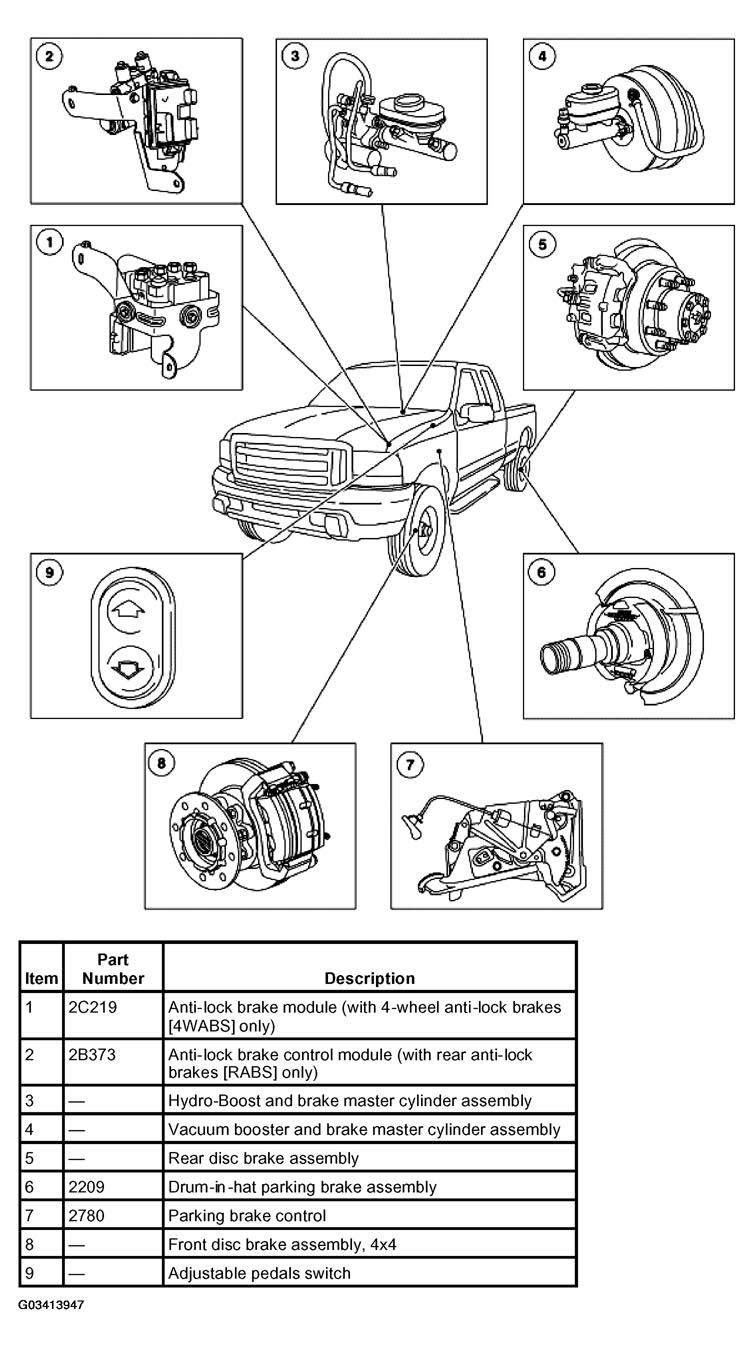

Fig 1: Identifying Brake System Component Location

Courtesy of FORD MOTOR CO.

The power brake booster (2005) may be the vacuum or the Hydro-Boost type.

The braking system is a front to rear split hydraulic system.

The front wheel brakes utilize a dual piston brake caliper and disc brake system. For additional information, refer to DISC - EXCURSION, F250-F550 SUPER DUTY PICKUP .

The rear brakes utilize a dual piston brake caliper and disc brake system. For additional information, refer to DISC - EXCURSION, F250-F550 SUPER DUTY PICKUP .

The parking brake system is a mechanical system that activates a shoe-and-drum system within the rear disc brake rotor (2C026).

The anti-lock brake system may be either 3-channel or 4 -channel four wheel (4WABS). For additional information, refer to ANTI-LOCK CONTROL - 4-WHEEL .
