Installation (Left Manifold)

  1. To install, reverse removal procedure. Lightly oil all bolt and stud threads before installing. A slight warpage, causing misalignment, may be corrected by elongating bolt holes as necessary. DO NOT elongate lower front bolt hole on cylinder No. 5.

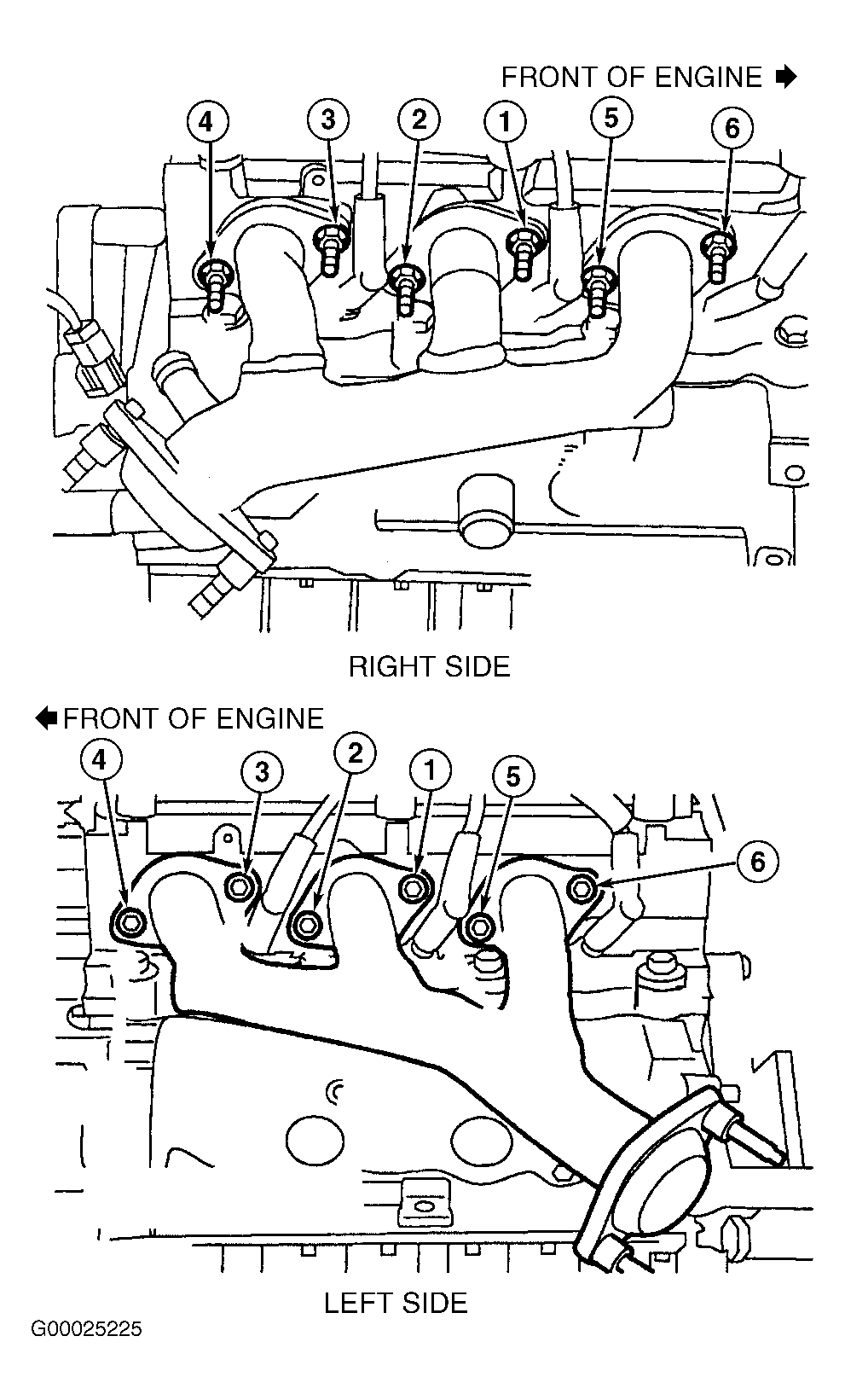

  2. Tighten bolts to specification. See Figure. See TORQUE SPECIFICATIONS . If oxygen sensor is removed, apply anti-seize to threads before installing. DO NOT allow anti-seize to contact any area except threads of oxygen sensor.
