Solenoid Valve Body Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Shift solenoids SSA, SSB and SSC may also be known as SS1, SS2 and SS3.

The solenoid valve body assembly contains Electronic Pressure Control (EPC) solenoid, Shift Solenoid "A" (SSA), Shift Solenoid "B" (SSB), Shift Solenoid "C" (SSC) and Torque Converter Clutch (TCC) solenoid. The shift solenoids are used for electronic shift scheduling. See SHIFT SOLENOID OPERATION table.
When shift solenoid is always off, failure could be due to the PCM and/or vehicle wiring malfunction, and/or solenoid stuck in on position electrically, hydraulically or mechanically. For shift symptoms, see Fig 1 and Fig 3 .
When shift solenoid is always on, failure could be due to the PCM and/or vehicle wiring malfunction, and/or solenoid stuck in off position electrically, hydraulically or mechanically. For shift symptoms, see Fig 2 and Fig 4 .

SHIFT SOLENOID OPERATION

Gearshift Lever Position

SSA

SSB

SSC

"P"

Off

"R"

Off

"N"

Off

"OD"

1st Gear

Off

2nd Gear

Off

3rd Gear

Off

4th Gear

Off

"D"

1st Gear

Off

2nd Gear

Off

3rd Gear

Off

"2"

2nd Gear

Off

3rd Gear ⁽¹⁾

Off

"1"

1st Gear

Off

2nd Gear ⁽²⁾

Off

⁽¹⁾	Transaxle will not downshift from higher gear until vehicle speed drops below calibrated speed.

⁽²⁾	Transaxle will not allow hydraulically.

Fig 1: Shift Solenoid Always Off Failure Charts (Sable & Taurus)

Courtesy of FORD MOTOR CO.

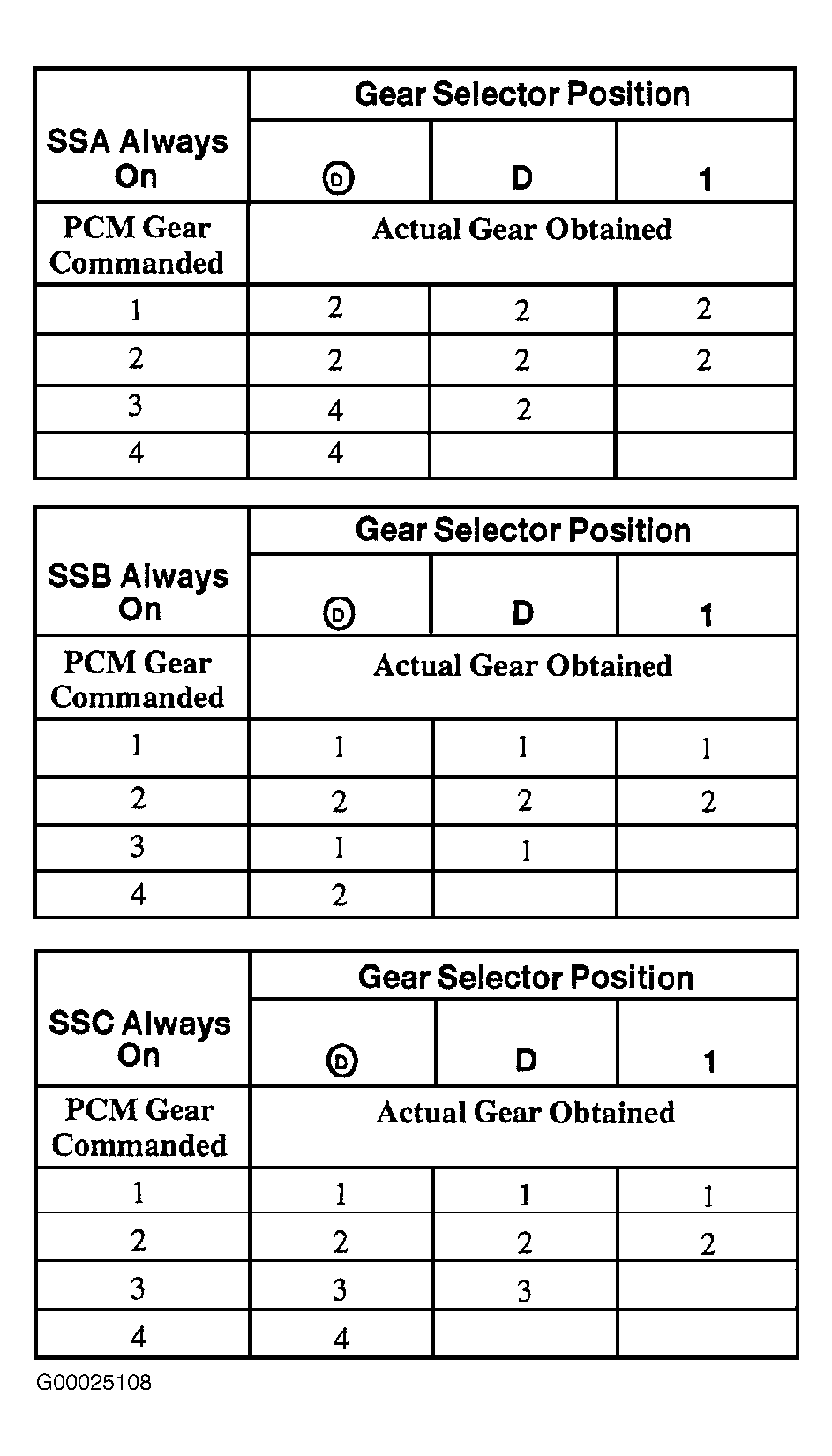

Fig 2: Shift Solenoid Always On Failure Charts (Sable & Taurus)

Courtesy of FORD MOTOR CO.

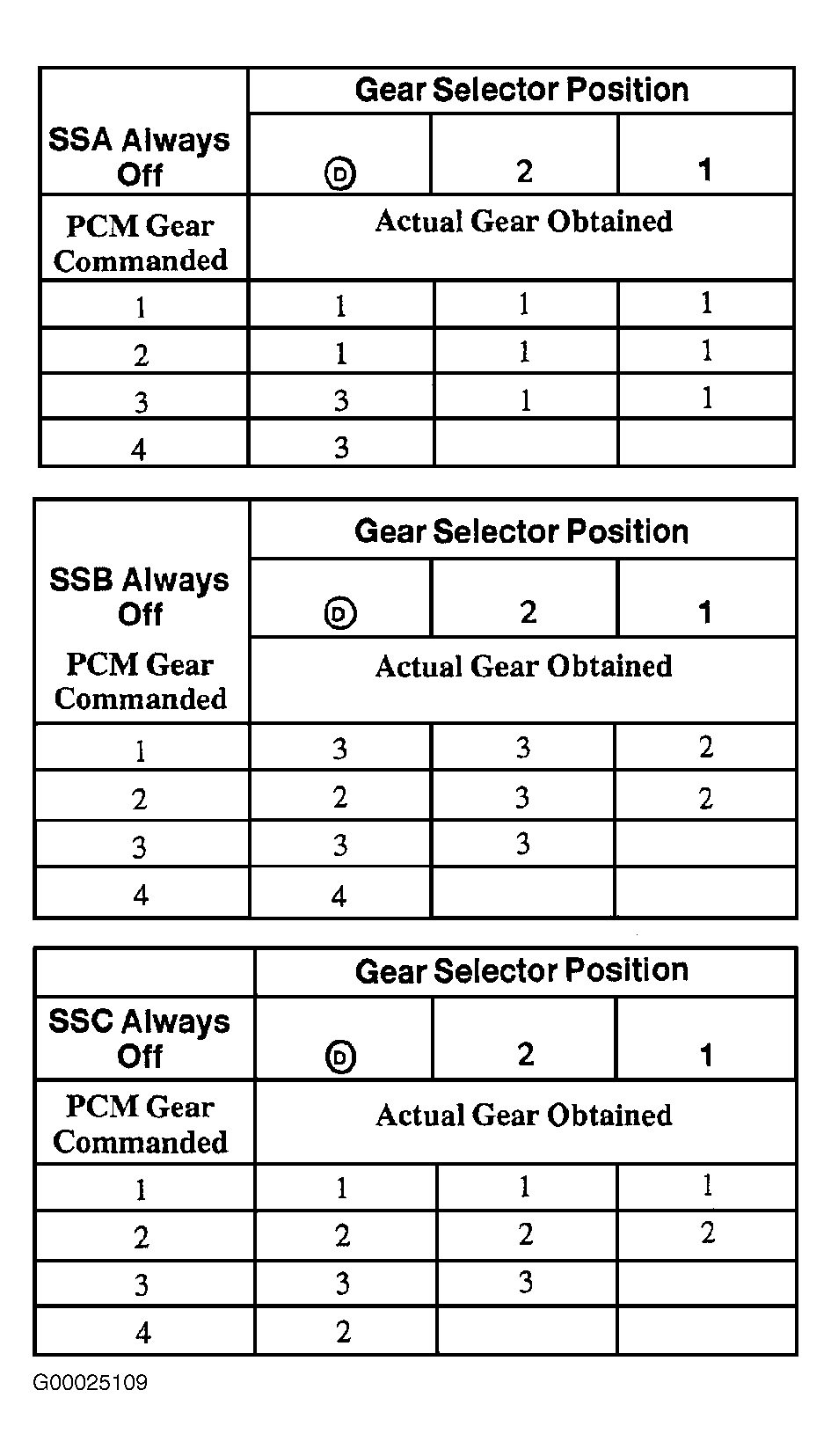

Fig 3: Shift Solenoid Always Off Failure Charts (Windstar)

Courtesy of FORD MOTOR CO.

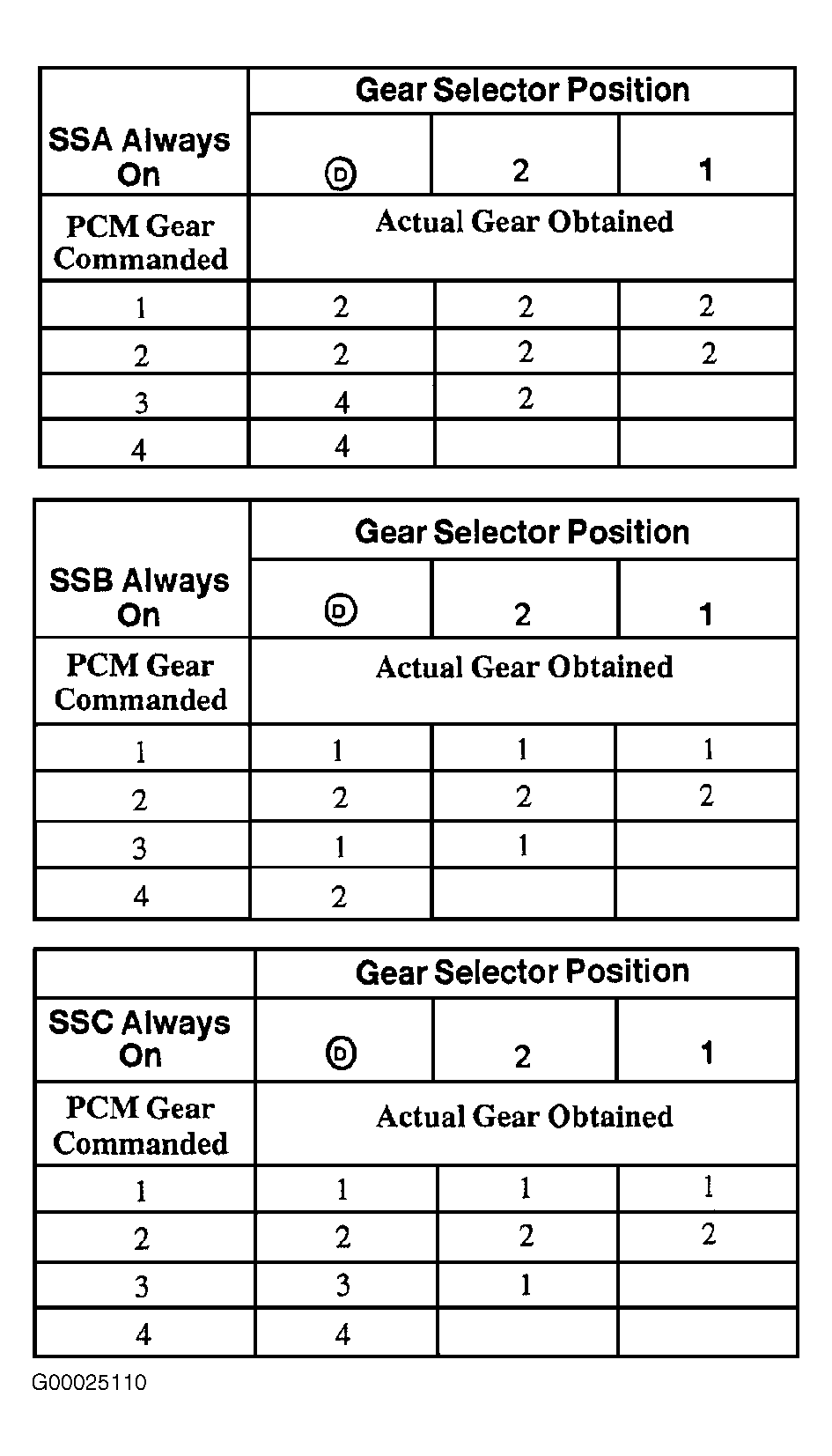

Fig 4: Shift Solenoid Always On Failure Charts (Windstar)

Courtesy of FORD MOTOR CO.
