Crankshaft & Main Bearing Removal

WARNING: This page is about a different variant/trim than selected.

Loosen lower cylinder block bolts in 2 steps, in sequence. See Fig 1. Remove and discard lower cylinder block retaining bolts No. 1-16. Remove lower cylinder block from upper cylinder block.

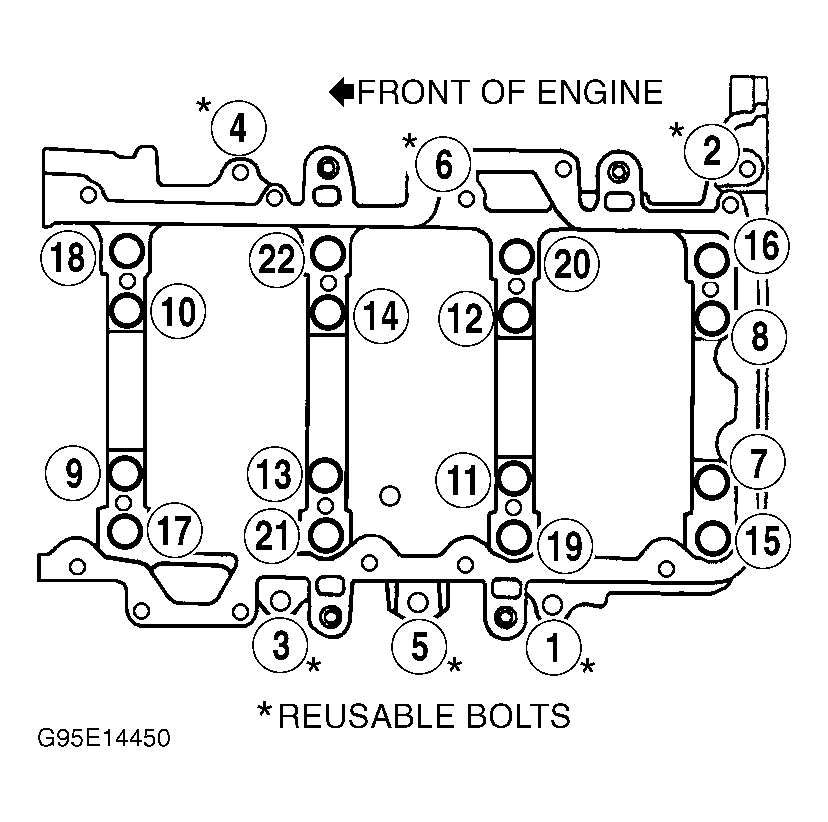

Fig 1: Lower Cylinder Block Bolt Loosening Sequence
Courtesy of FORD MOTOR CO.
Remove crankshaft bearings and crankshaft. Ensure crankshaft journal diameter, taper and out-of-round are within specification. See CRANKSHAFT, MAIN & CONNECTING ROD BEARINGS table under ENGINE SPECIFICATIONS.
