FEM Diagnostic Trouble Code (DTC) Index

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
FEM DIAGNOSTIC TROUBLE CODE (DTC) INDEX

DTC Description Source Action
C1924 VAPS Solenoid Actuator Output Circuit Short to Ground FEM Go To PINPOINT TEST A .
C1925 VAPS Solenoid Actuator Return Circuit Failure FEM Go To PINPOINT TEST B .
U1027 SCP (J1850) Invalid or Missing Data for Engine rpm PCM GO to MODULE CONFIGURATION Section 418-01.
U1041 SCP (J1850) Invalid or Missing Data for Vehicle Speed ABS GO to MODULE CONFIGURATION .
U1059 SCP (J1850) Invalid or Missing Data for Transmission / Transaxle / PRNDL PCM GO to MODULE CONFIGURATION .
U1218 SCP (J1850) Invalid or Missing Data for External Lamps ICM GO to MODULE CONFIGURATION .
U1222 SCP (J1850) Invalid or Missing Data for Interior Lamps ICM GO to MODULE CONFIGURATION .
U1227 SCP (J1850) Invalid or Missing Data for Body Status Request ICM GO to MODULE CONFIGURATION .

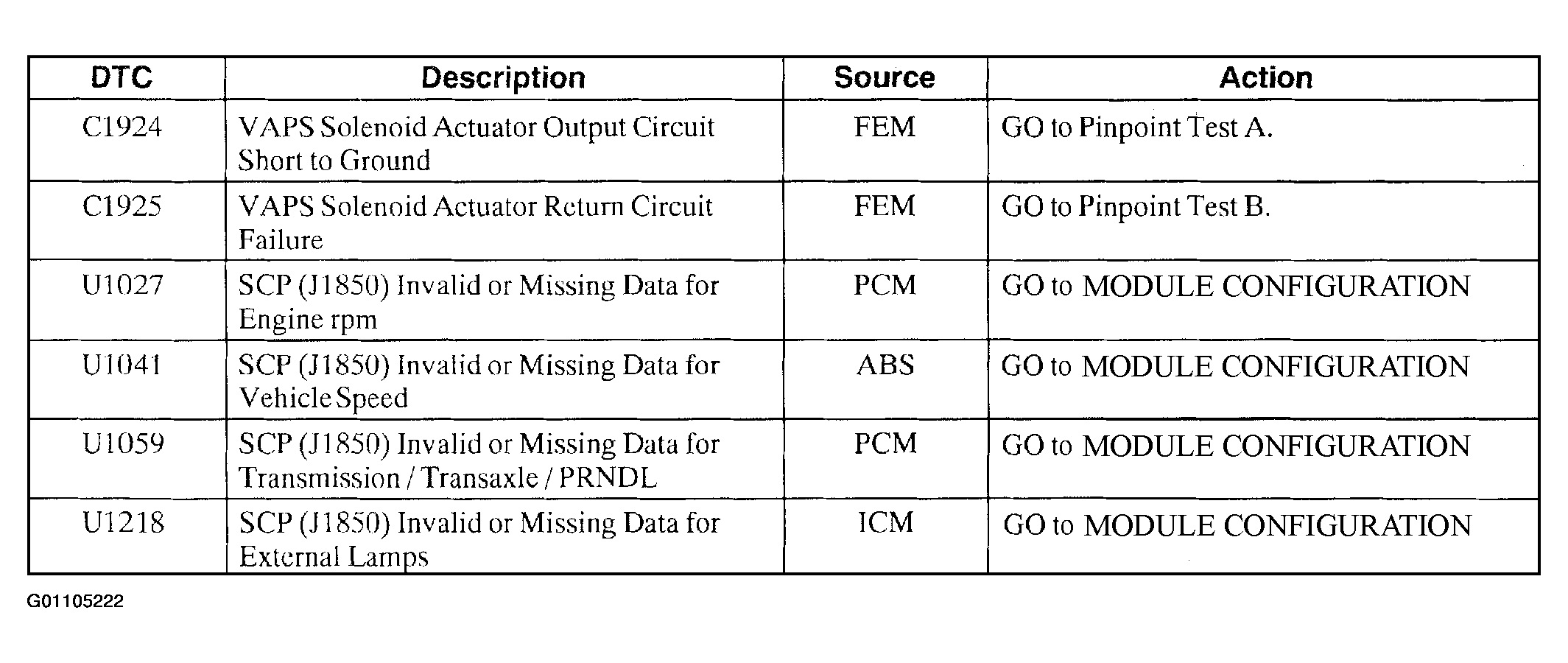

Fig 1: FEM Diagnostic Trouble Code (DTC) Index (C1924-C1925 & U1027-U1218)
G01105222Courtesy of FORD MOTOR CO.

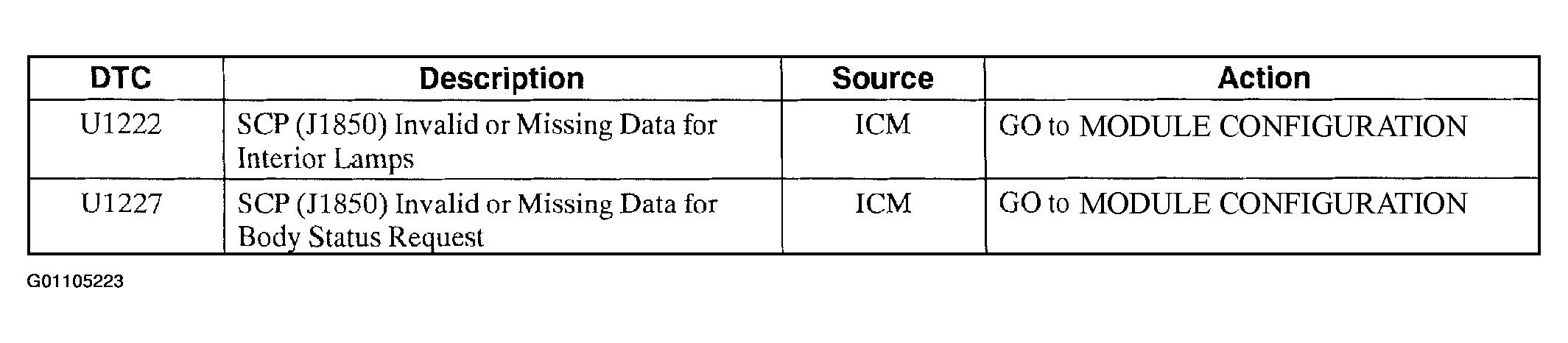

Fig 2: FEM Diagnostic Trouble Code (DTC) Index (U1222-U1227)
G01105223Courtesy of FORD MOTOR CO.
