Pinpoint Test A: DTC C1924 - VAPS Solenoid Actuator Output Circuit Short To Ground

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

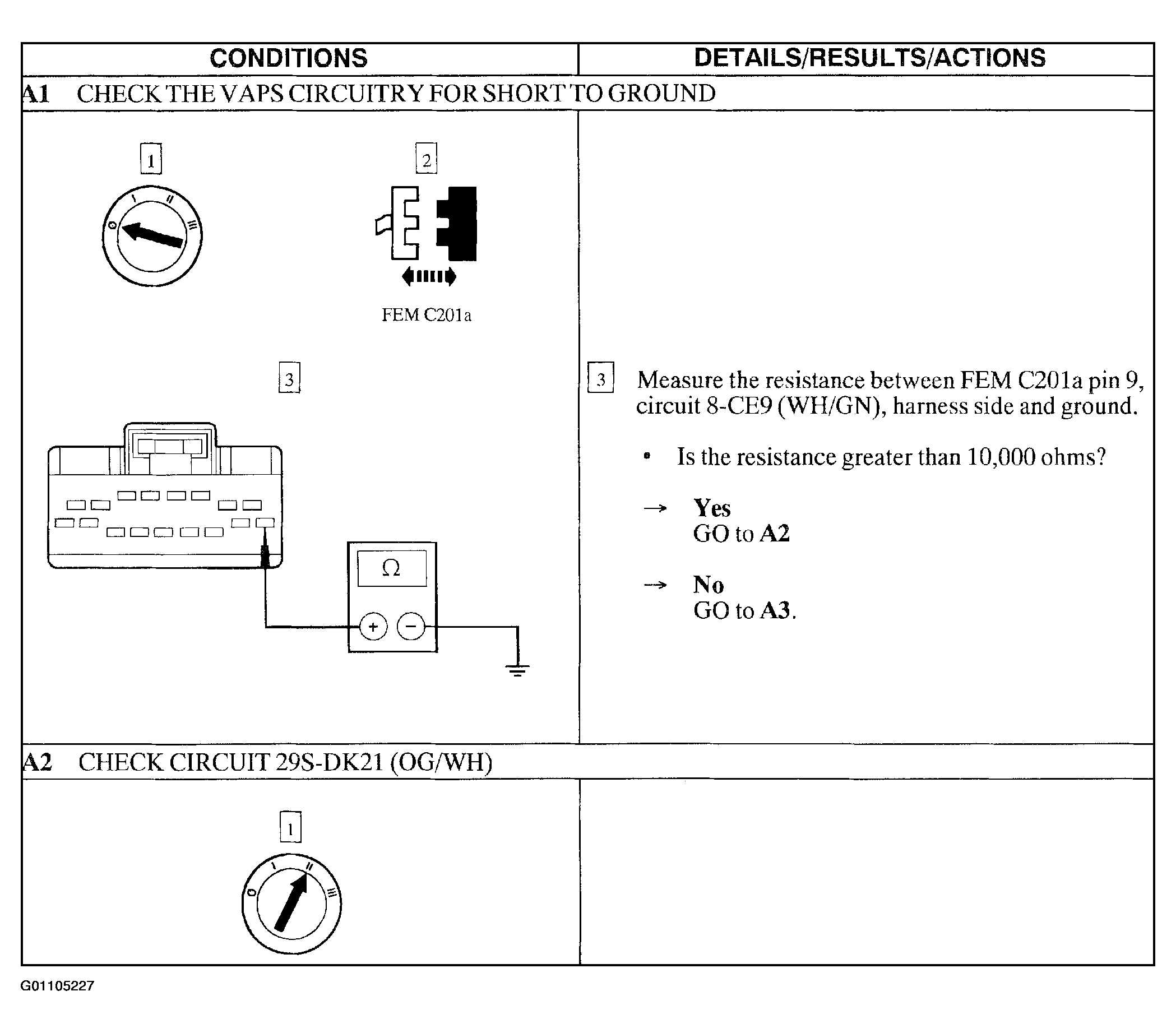

Fig 1: Pinpoint Test A: DTC C1924 - VAPS Solenoid Actuator Output Circuit Short To Ground (Steps A1-A2)

Courtesy of FORD MOTOR CO.

Fig 2: Pinpoint Test A: DTC C1924 - VAPS Solenoid Actuator Output Circuit Short To Ground (Steps A2 Cont. -A3)

Courtesy of FORD MOTOR CO.
