Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
  1. Disconnect the battery ground cable.
  2. Remove the instrument panel cluster finish panel. See INSTRUMENT PANEL -- CLUSTER FINISH PANEL .
  3. Position the passive anti-theft system (PATS) transceiver module aside.
      NOTE: The ignition must be turned to the RUN position to remove ignition lock cylinder.
    1. Push the tab and remove the ignition lock cylinder.
    2. Remove the screw.
    3. Position the PATS transceiver module aside.

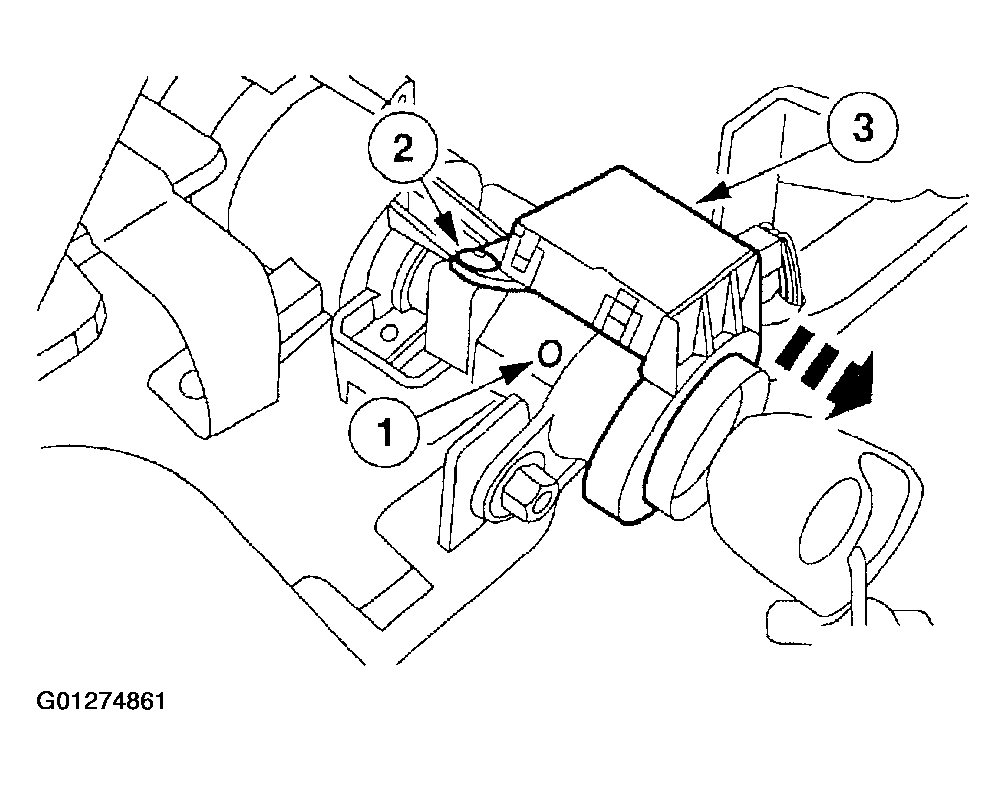

    Fig 1: Positioning PATS Transceiver Module Aside
    G01274861Courtesy of FORD MOTOR CO.
  4. Remove the PATS transceiver module.
    1. Disconnect the electrical connector.
    2. Remove the PATS transceiver module.

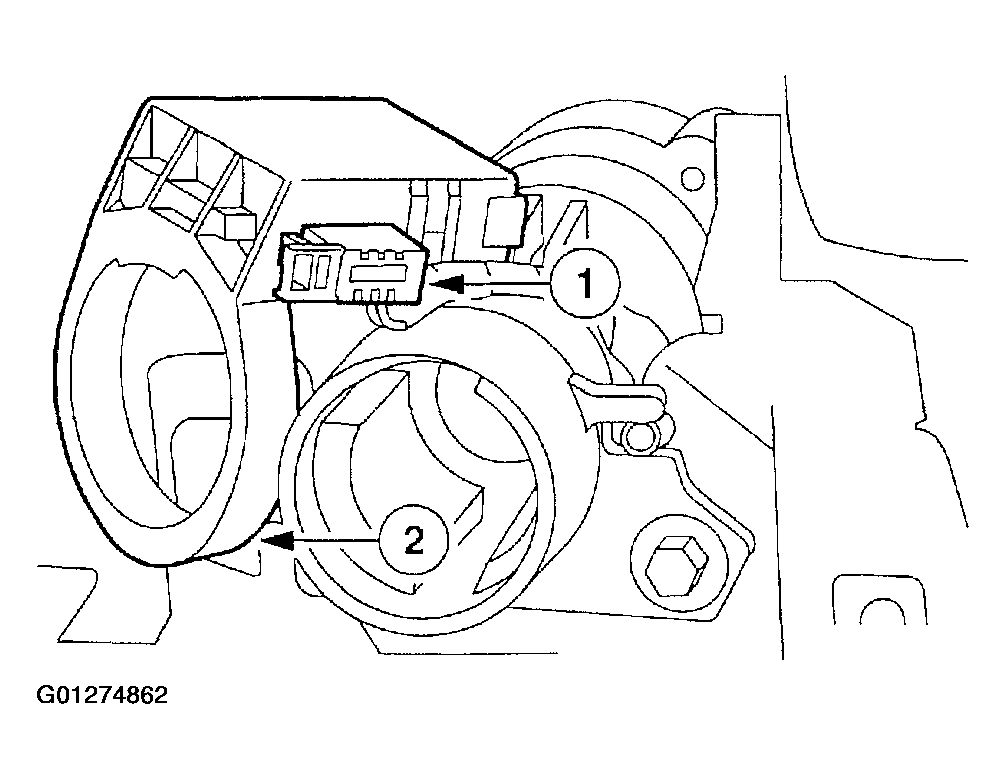

    Fig 2: Removing PATS Transceiver Module Aside
    G01274862Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
