Pinpoint Test F: The Anti-Theft System Does Not Operate Correctly - NVM Configuration Failure (No PCM Id Exchanged Between Instrument Cluster And PCM)
WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

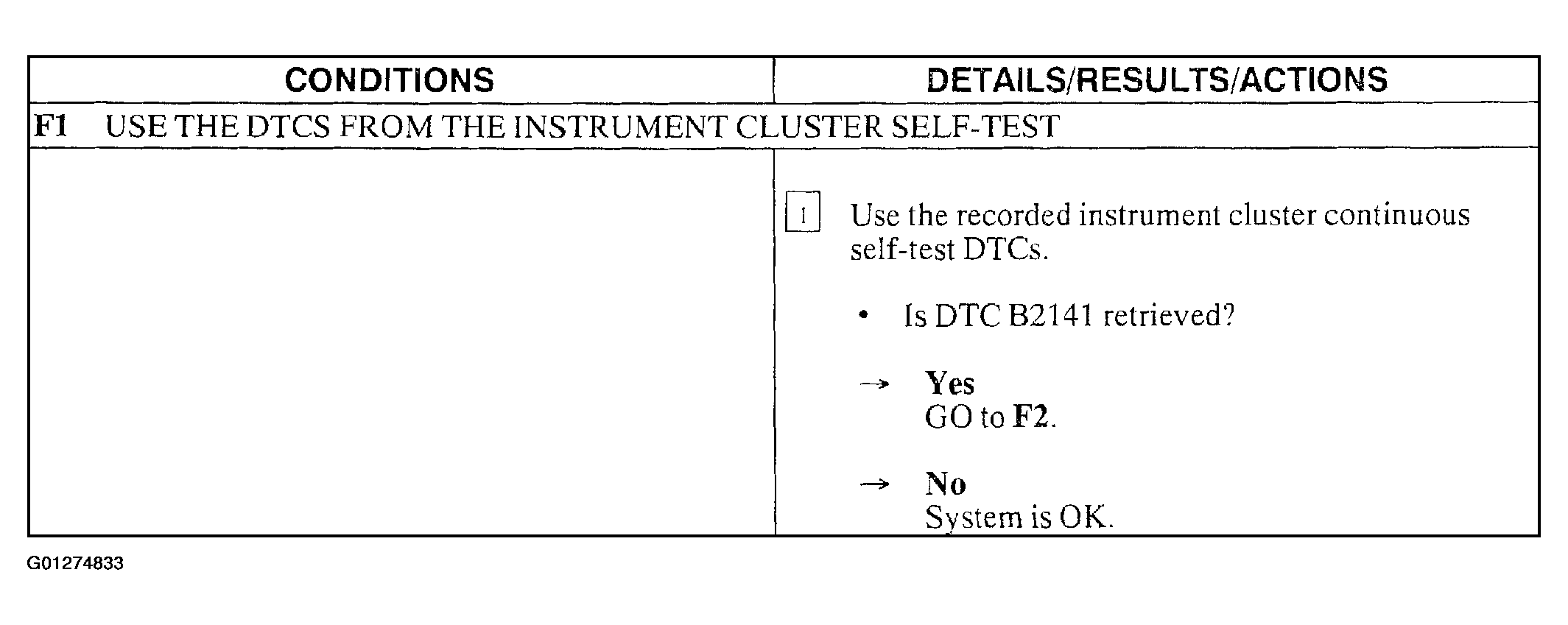

Fig 1: Pinpoint Test F: The Anti-Theft System Does Not Operate Correctly - NVM Configuration Failure (No PCM Id Exchanged Between Instrument Cluster And PCM) (Step F1)
