Pinpoint Test E: Data Mismatch (Receive Data Does Not Match What Was Expected)

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

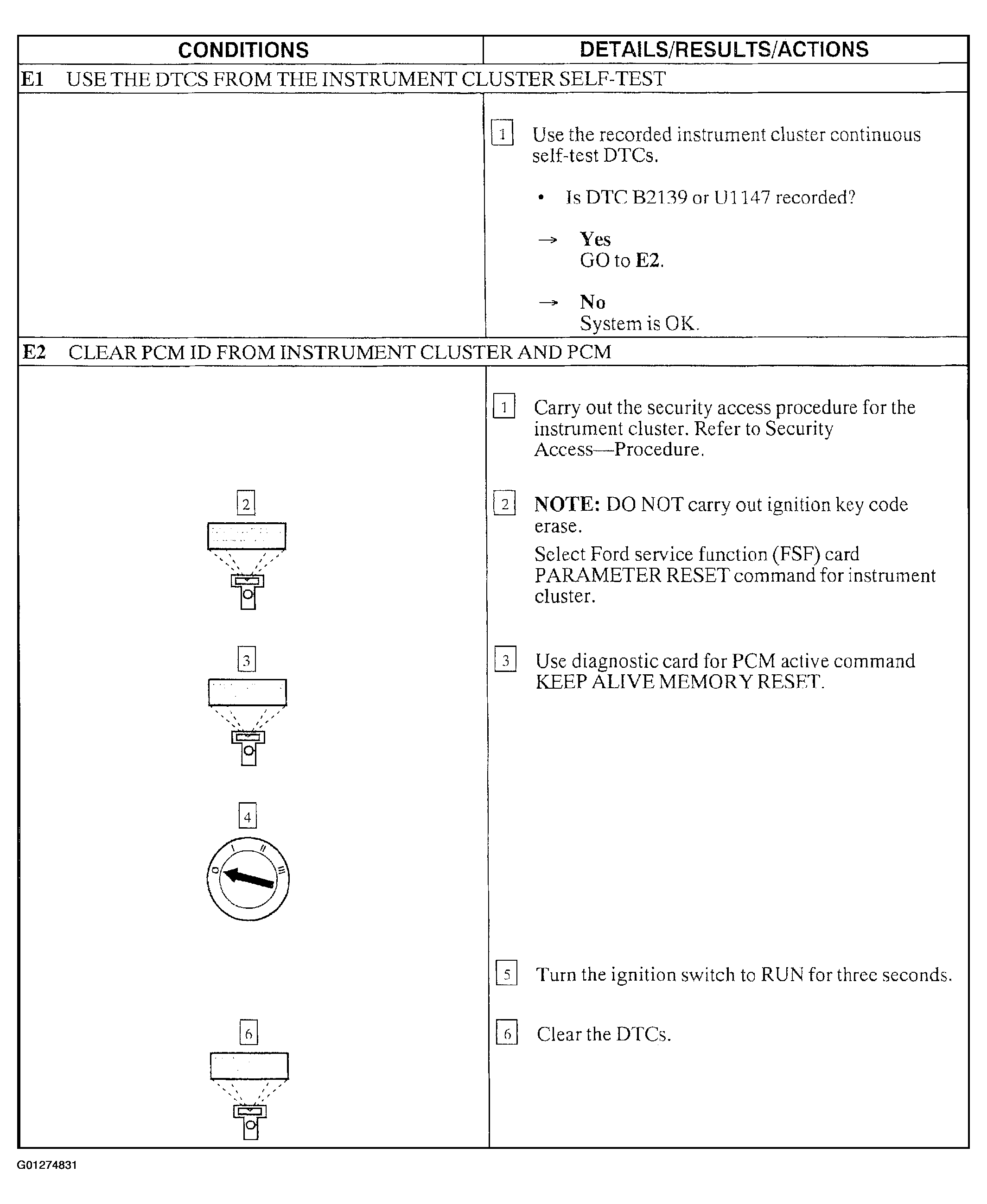

Fig 1: Pinpoint Test E: Data Mismatch (Receive Data Does Not Match What Was Expected) (Steps E1 & E2)

Courtesy of FORD MOTOR CO.

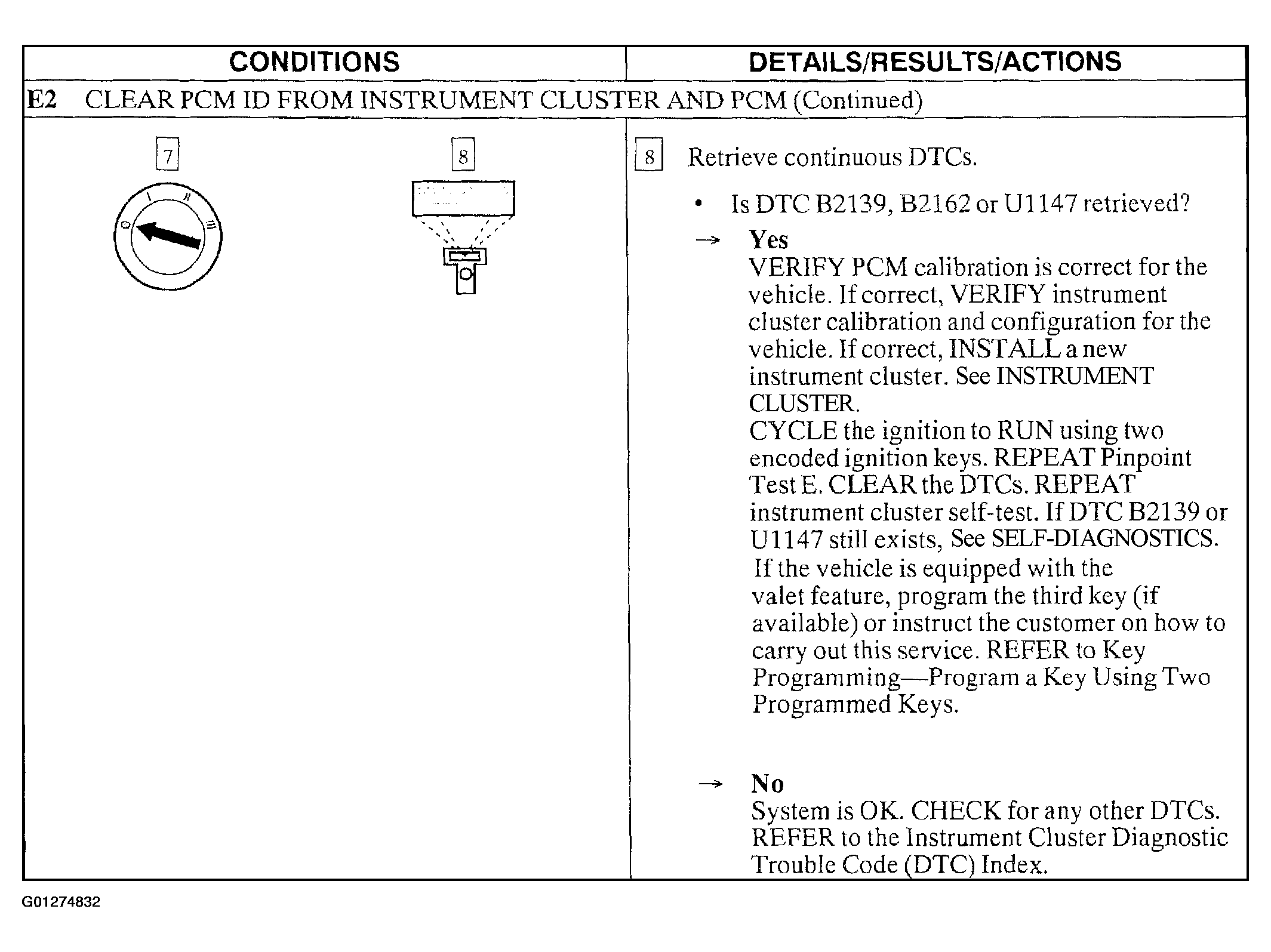

Fig 2: Pinpoint Test E: Data Mismatch (Receive Data Does Not Match What Was Expected) (Step E2 Cont.)

Courtesy of FORD MOTOR CO.
