Pinpoint Test B: The Anti-Theft Indicator Is Always/Never On - No Three Second Theft Indicator Prove Out

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

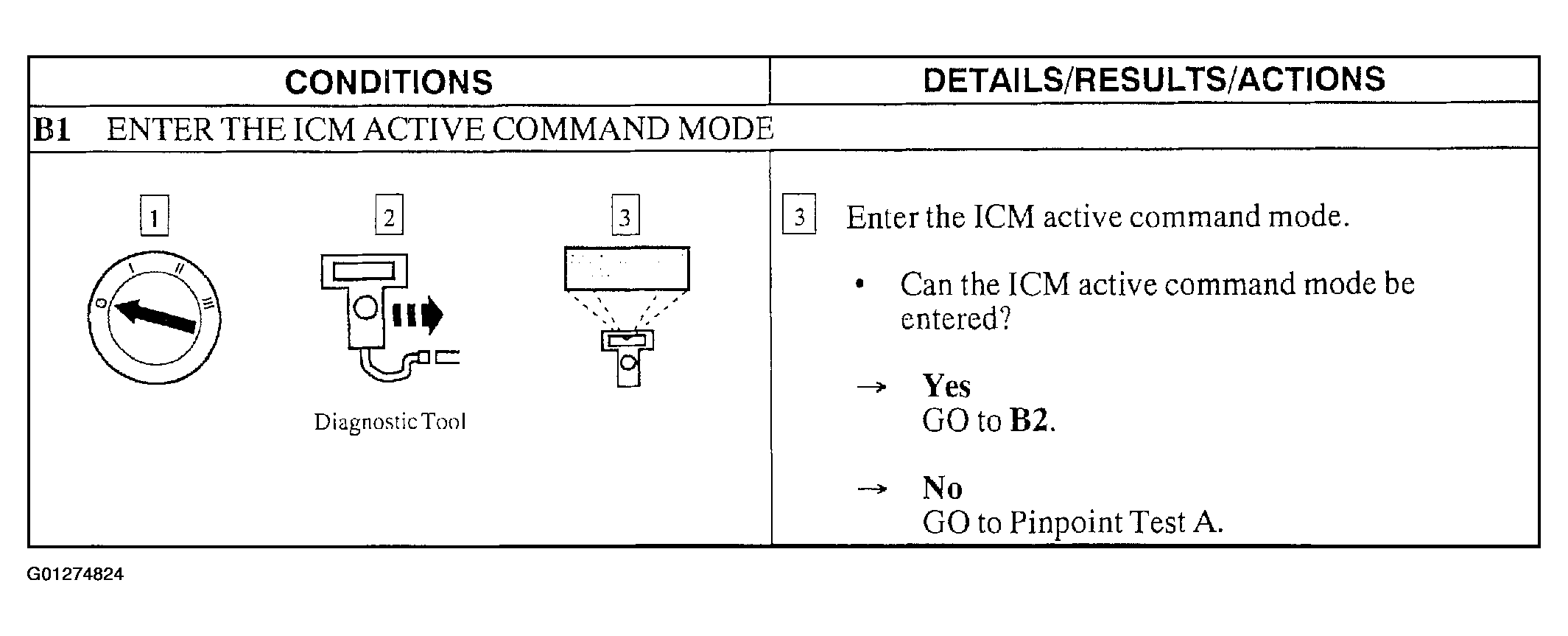

Fig 1: Pinpoint Test B: The Anti-Theft Indicator Is Always/Never On - No Three Second Theft Indicator Prove Out (Step B1)

Courtesy of FORD MOTOR CO.

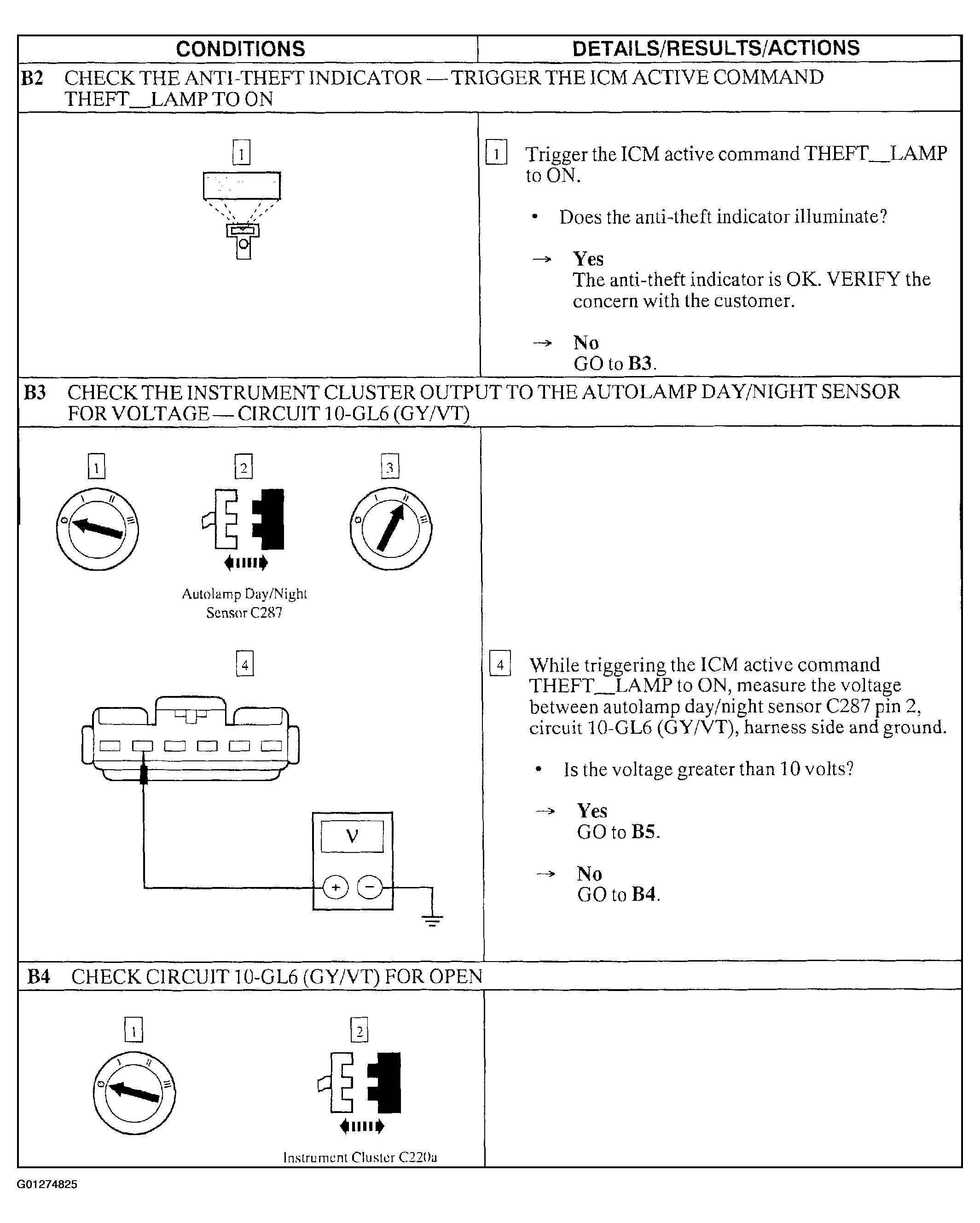

Fig 2: Pinpoint Test B: The Anti-Theft Indicator Is Always/Never On - No Three Second Theft Indicator Prove Out (Steps B2-B4)

Courtesy of FORD MOTOR CO.

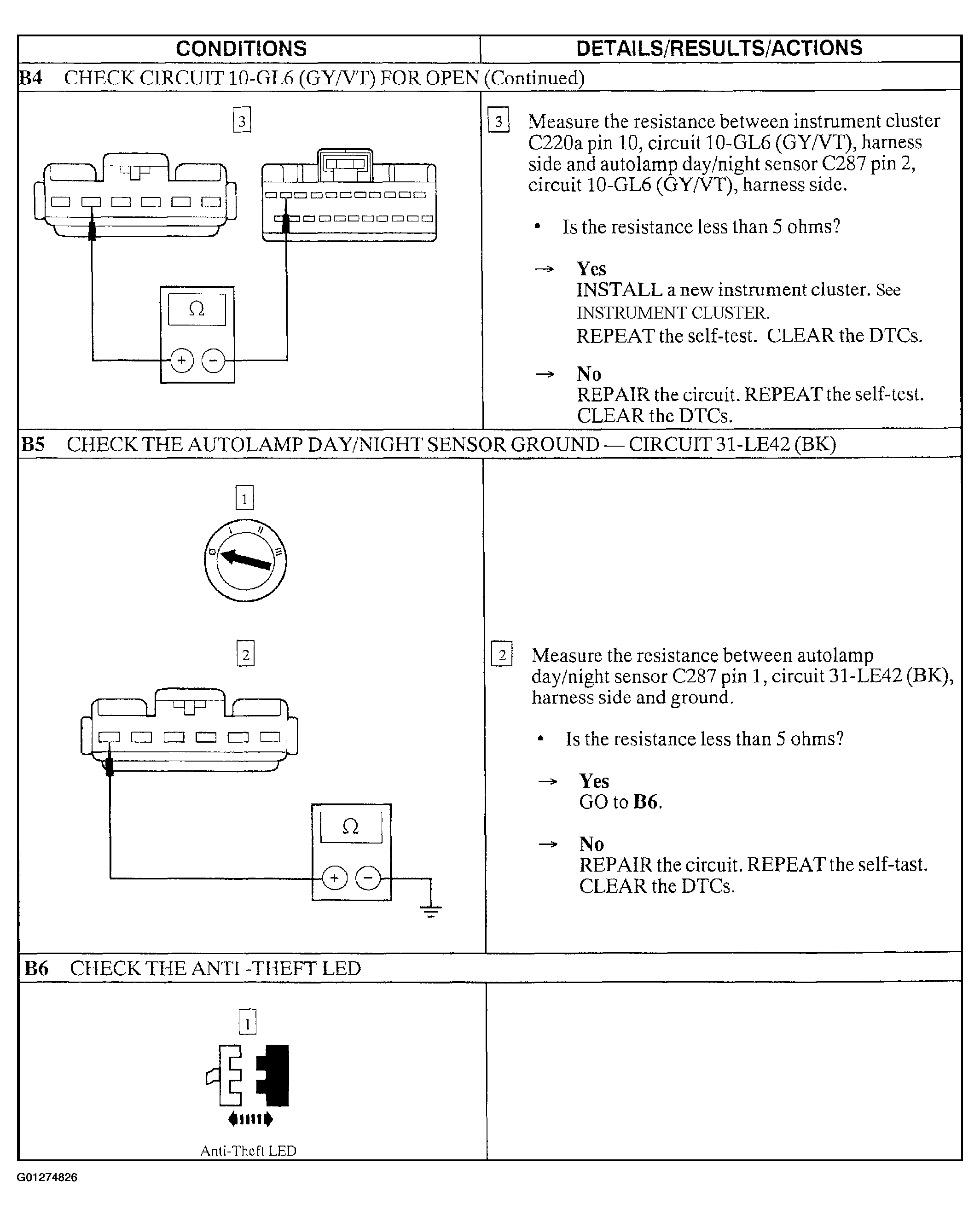

Fig 3: Pinpoint Test B: The Anti-Theft Indicator Is Always/Never On - No Three Second Theft Indicator Prove Out (Steps B4 Cont. -B6)

Courtesy of FORD MOTOR CO.

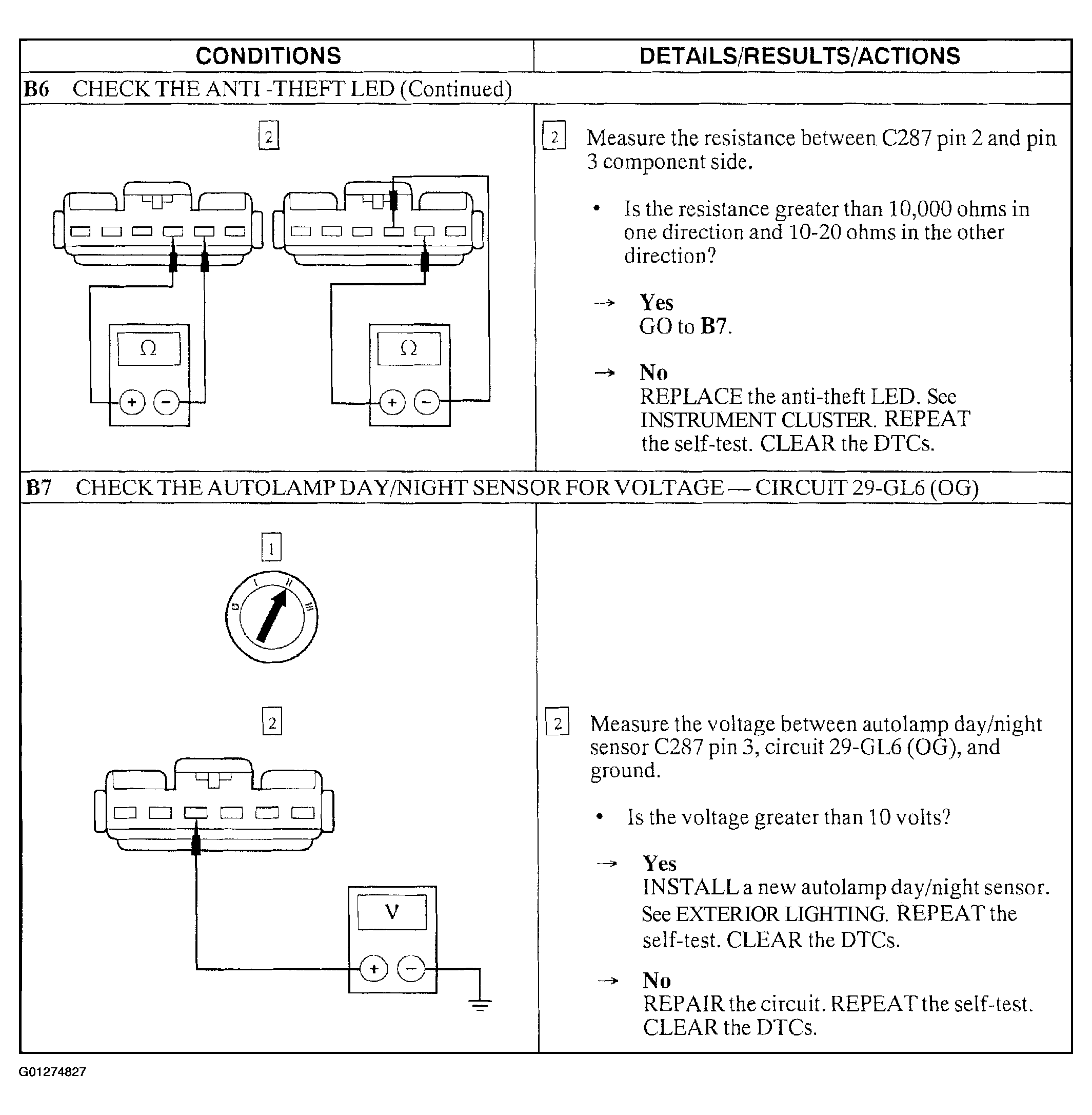

Fig 4: Pinpoint Test B: The Anti-Theft Indicator Is Always/Never On - No Three Second Theft Indicator Prove Out (Step B6 Cont. -B7)

Courtesy of FORD MOTOR CO.
