Pinpoint Test A: No Communication With The Module - Instrument Cluster

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Pinpoint Test A: No Communication With The Module - Instrument Cluster (Step A1)

Courtesy of FORD MOTOR CO.

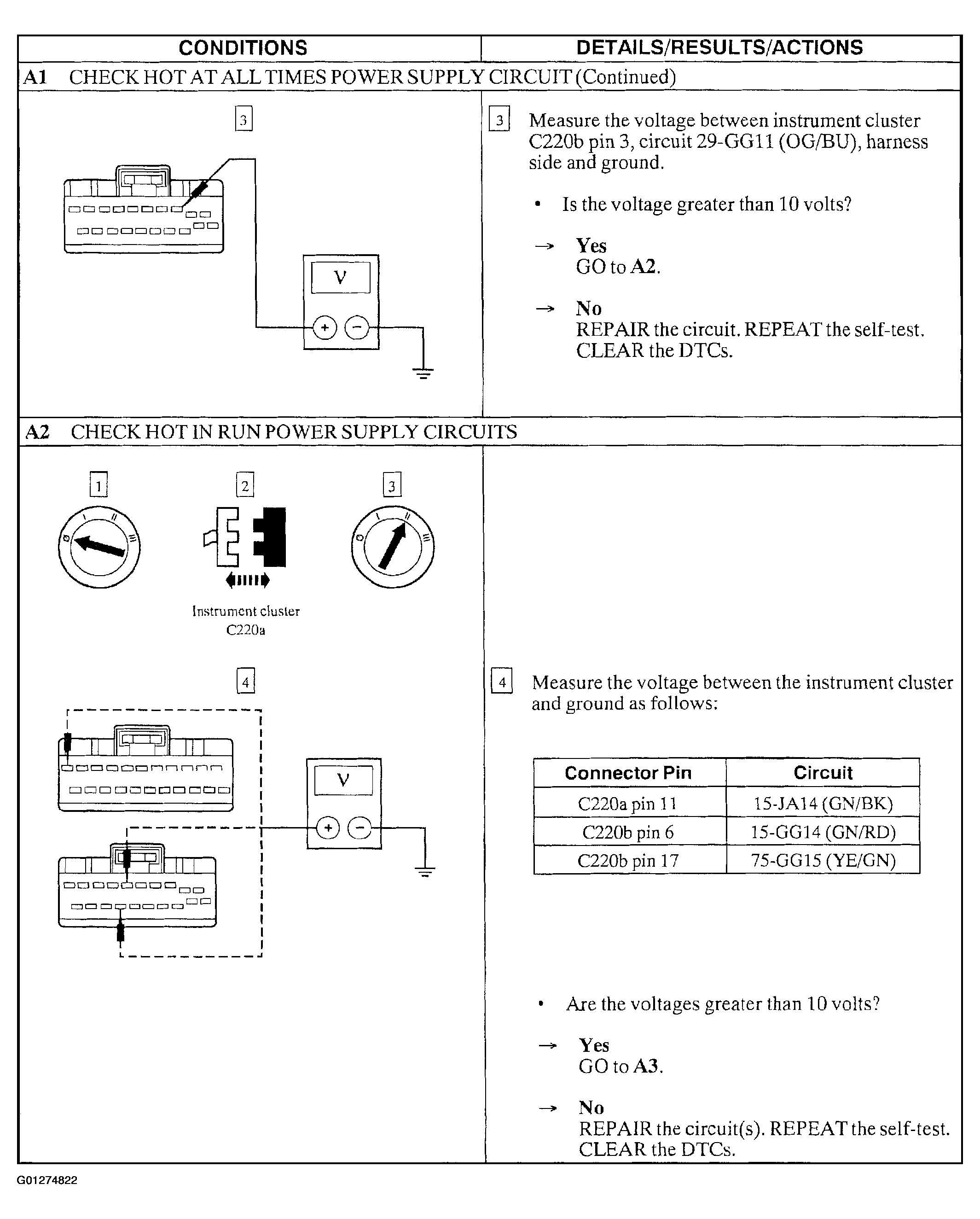

Fig 2: Pinpoint Test A: No Communication With The Module - Instrument Cluster (Steps A1 Cont. -A2)

Courtesy of FORD MOTOR CO.

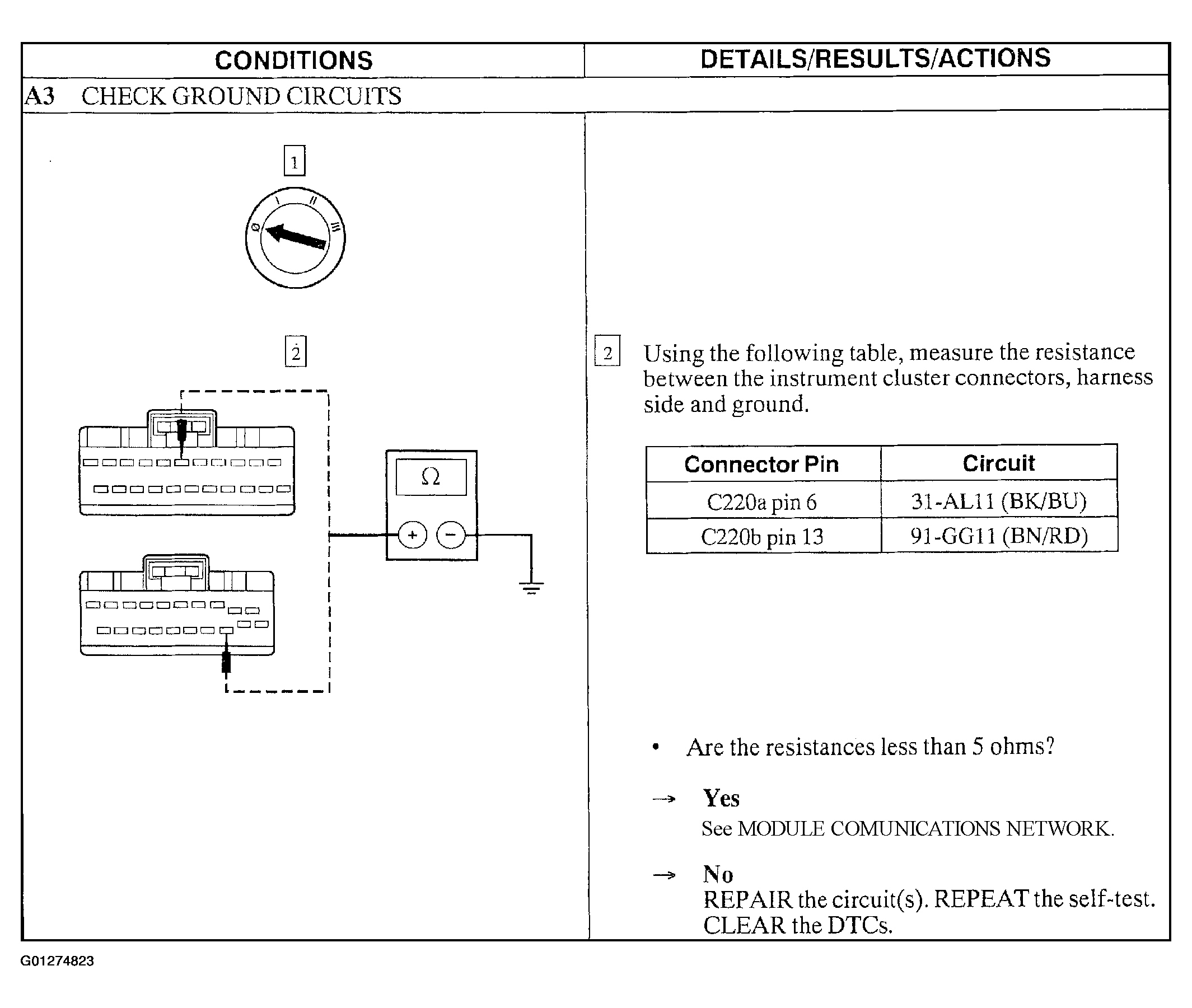

Fig 3: Pinpoint Test A: No Communication With The Module - Instrument Cluster (Step A3)

Courtesy of FORD MOTOR CO.
