Pinpoint Test K: The Alarm System Does Not Operate Correctly - Luggage Compartment Lid Disarm Switch

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

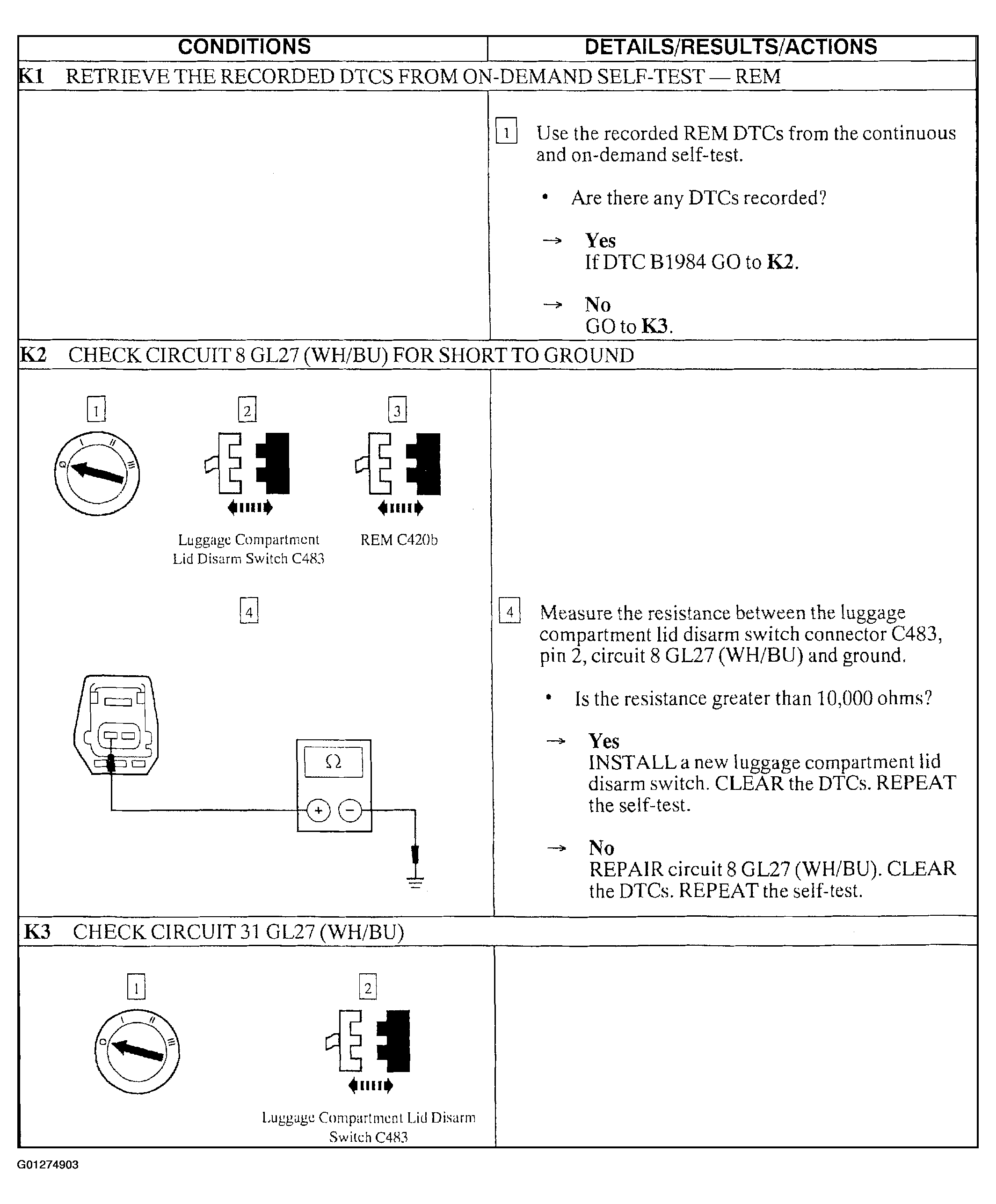

Fig 1: Pinpoint Test K: The Alarm System Does Not Operate Correctly - Luggage Compartment Lid Disarm Switch (Steps K1 To K3)

Courtesy of FORD MOTOR CO.

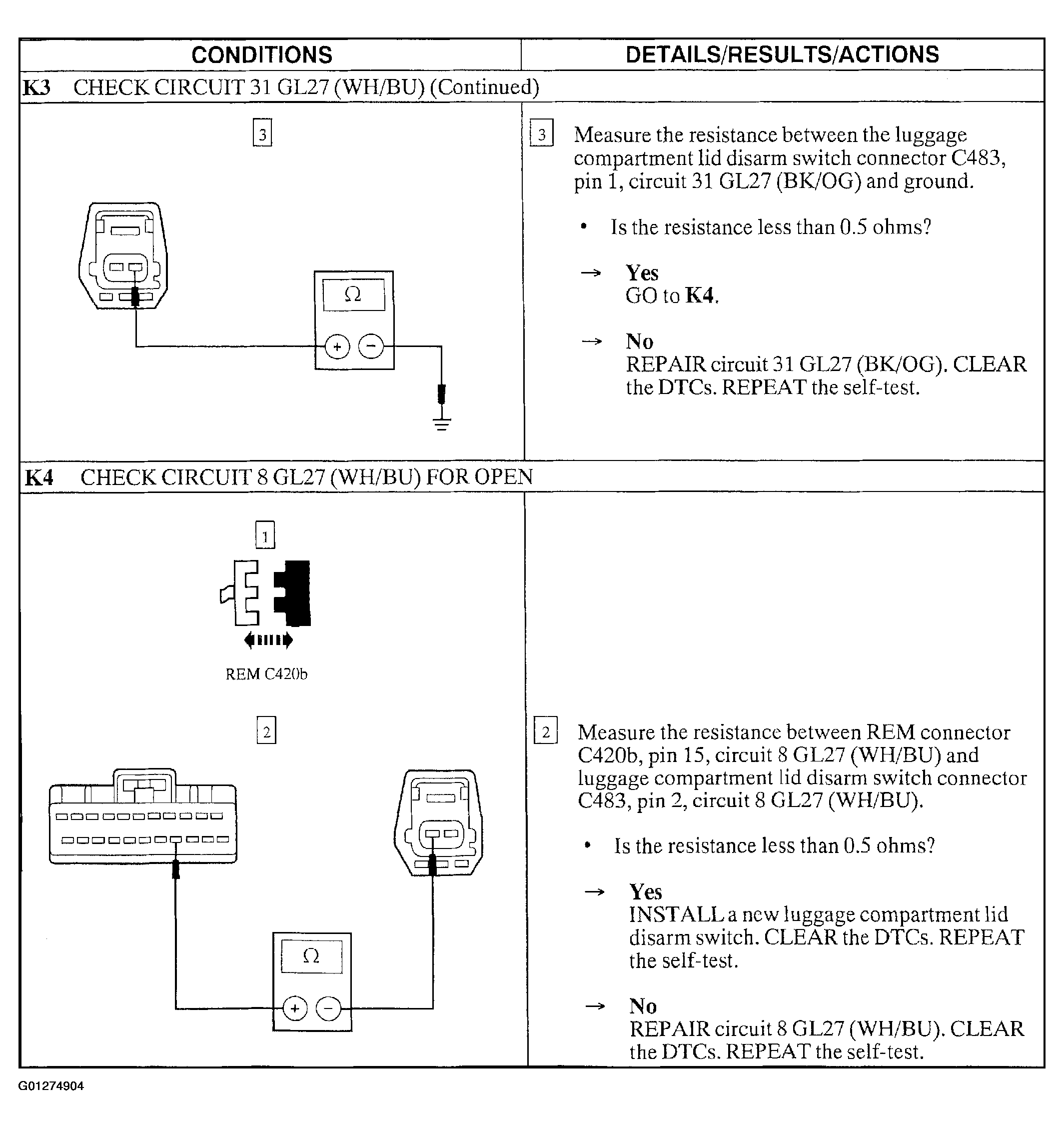

Fig 2: Pinpoint Test K: The Alarm System Does Not Operate Correctly - Luggage Compartment Lid Disarm Switch (Steps K3 & K4)

Courtesy of FORD MOTOR CO.
