Pinpoint Test J: The Alarm System Does Not Operate Correctly - Alarm Does Not Activate With Hood Ajar/Open

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Fig 1: Pinpoint Test J: The Alarm System Does Not Operate Correctly - Alarm Does Not Activate With Hood Ajar/Open (Steps J1 & J2)

Courtesy of FORD MOTOR CO.

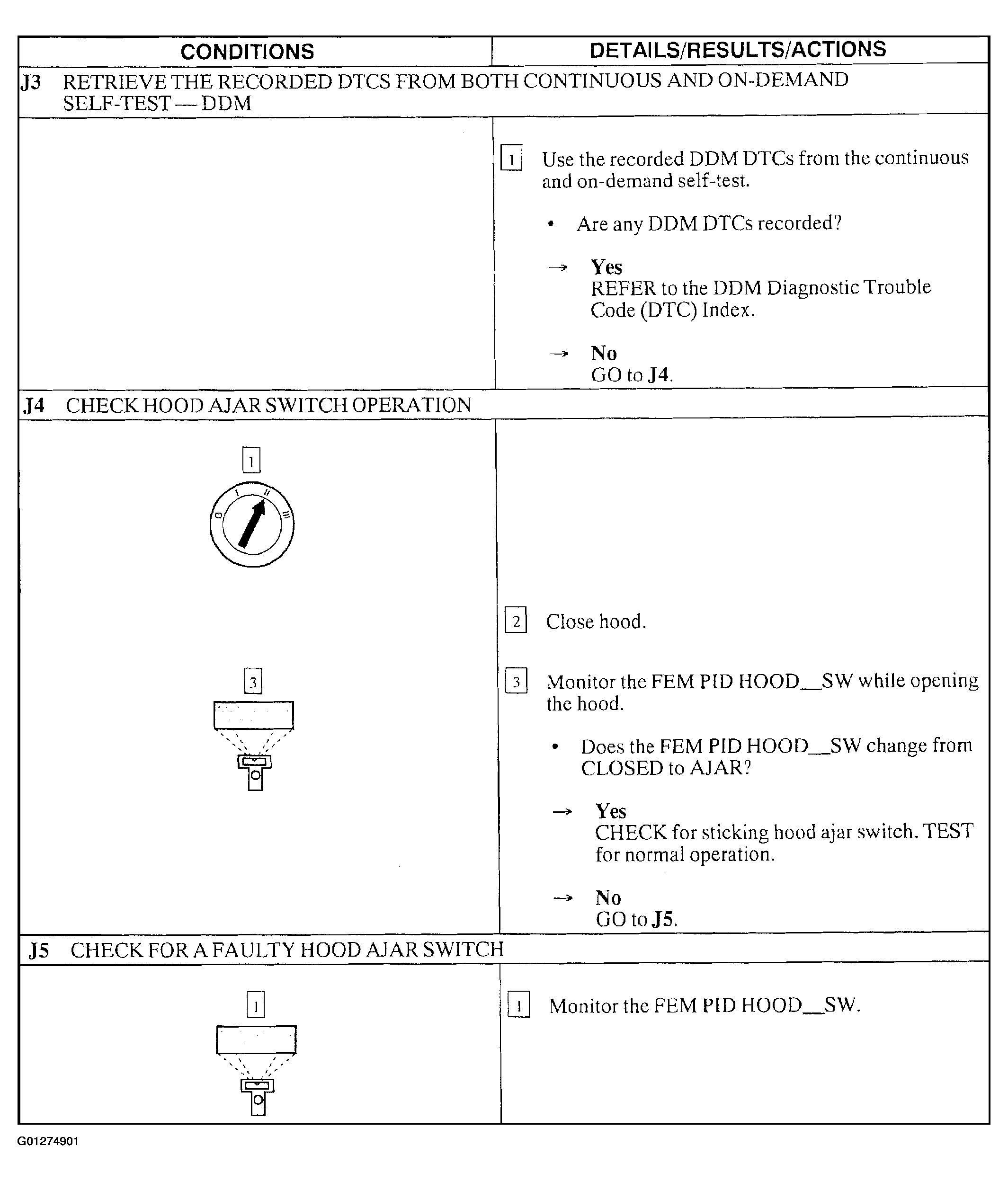

Fig 2: Pinpoint Test J: The Alarm System Does Not Operate Correctly - Alarm Does Not Activate With Hood Ajar/Open (Steps J3 To J5)

Courtesy of FORD MOTOR CO.

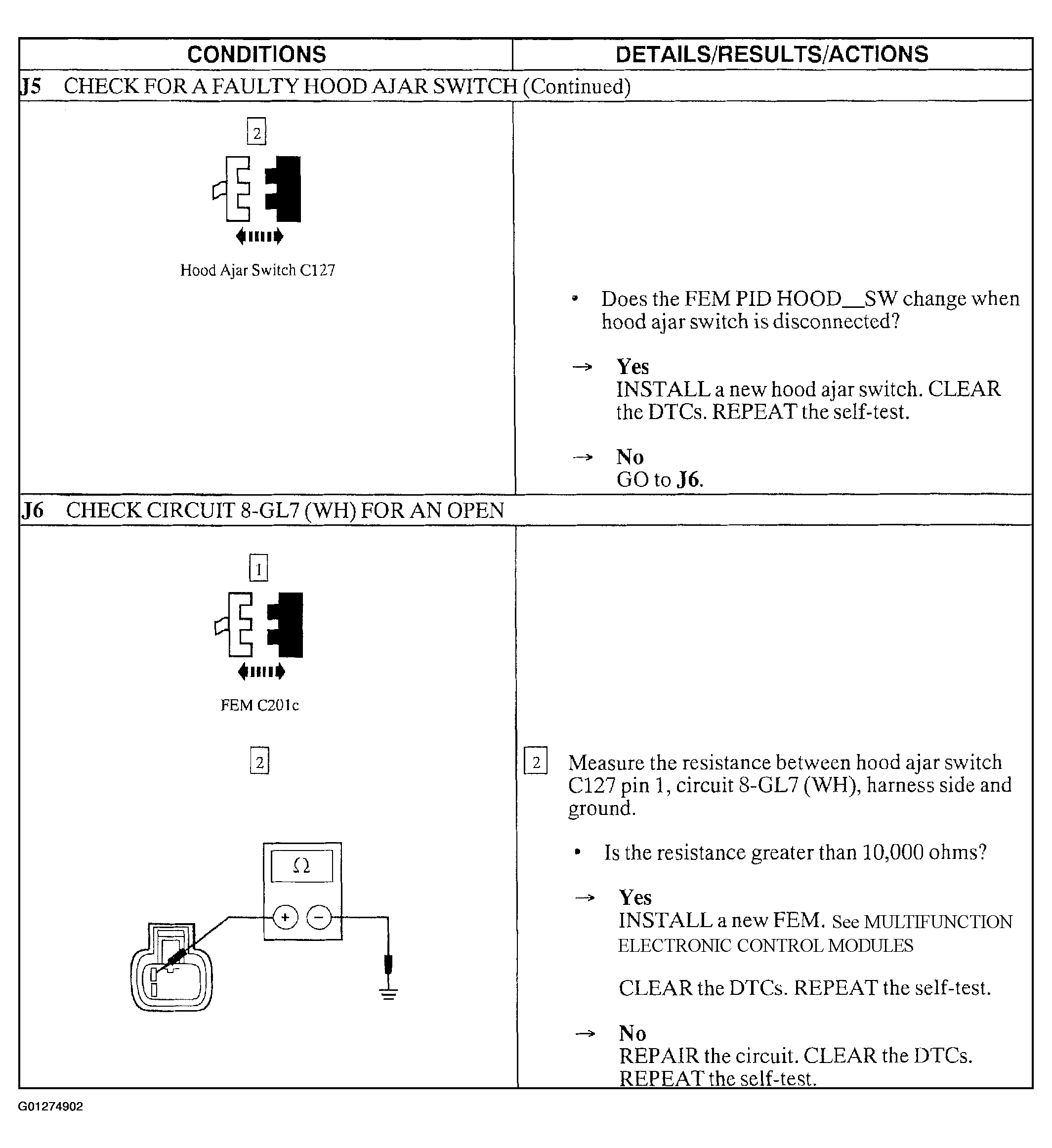

Fig 3: Pinpoint Test J: The Alarm System Does Not Operate Correctly - Alarm Does Not Activate With Hood Ajar/Open (Steps J5 & J6)

Courtesy of FORD MOTOR CO.
