Pinpoint Test F: The Alarm System Does Not Arm/Disarm - Using The Remote Transmitter

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

NOTE: The luggage compartment key cylinder will not disarm the perimeter alarm. Once armed, the perimeter alarm can only be disarmed using the emote transmitter or driver door lock cylinder switch.

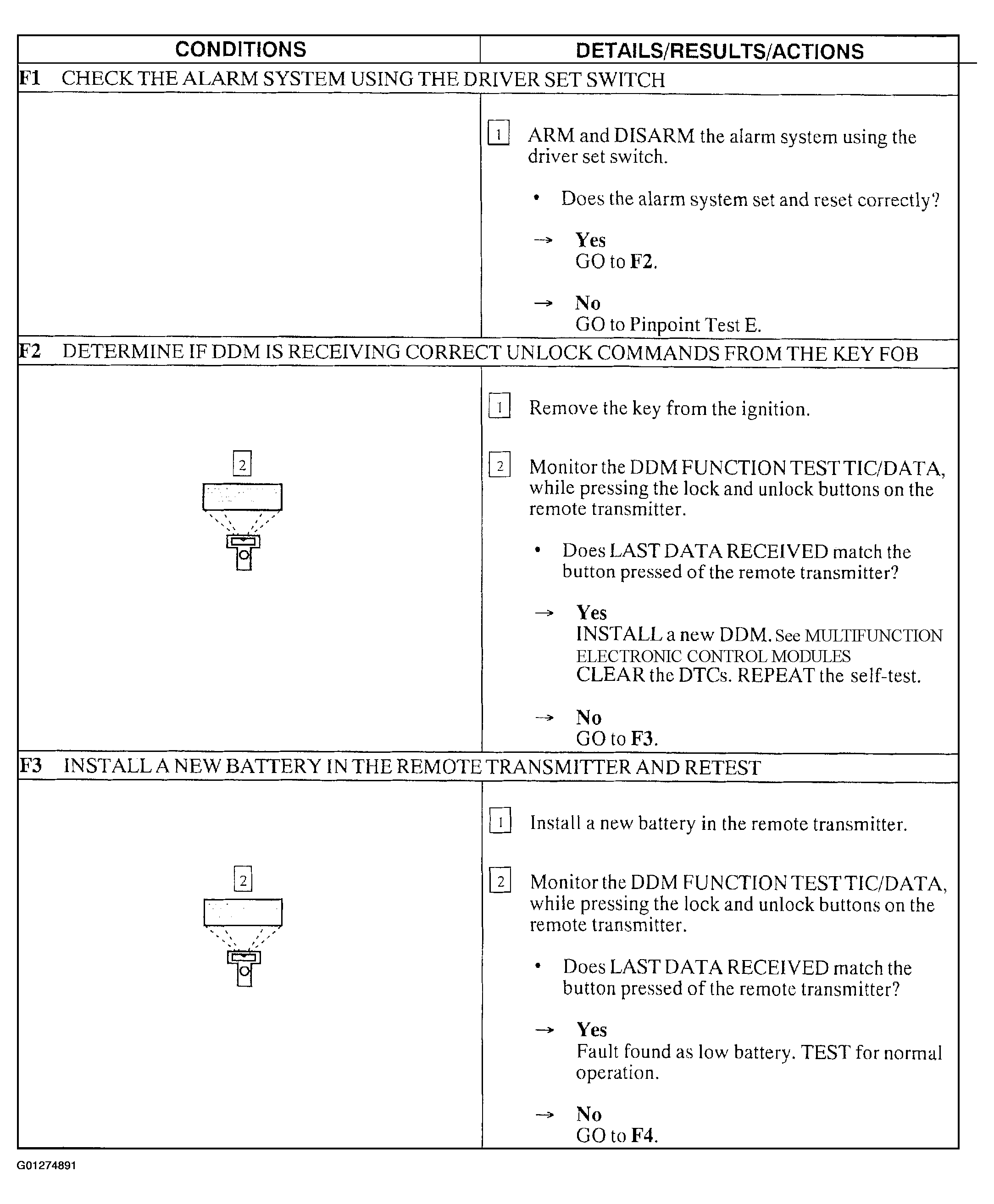

Fig 1: Pinpoint Test F: The Alarm System Does Not Arm/Disarm - Using The Remote Transmitter (Steps F1 To F3)

Courtesy of FORD MOTOR CO.

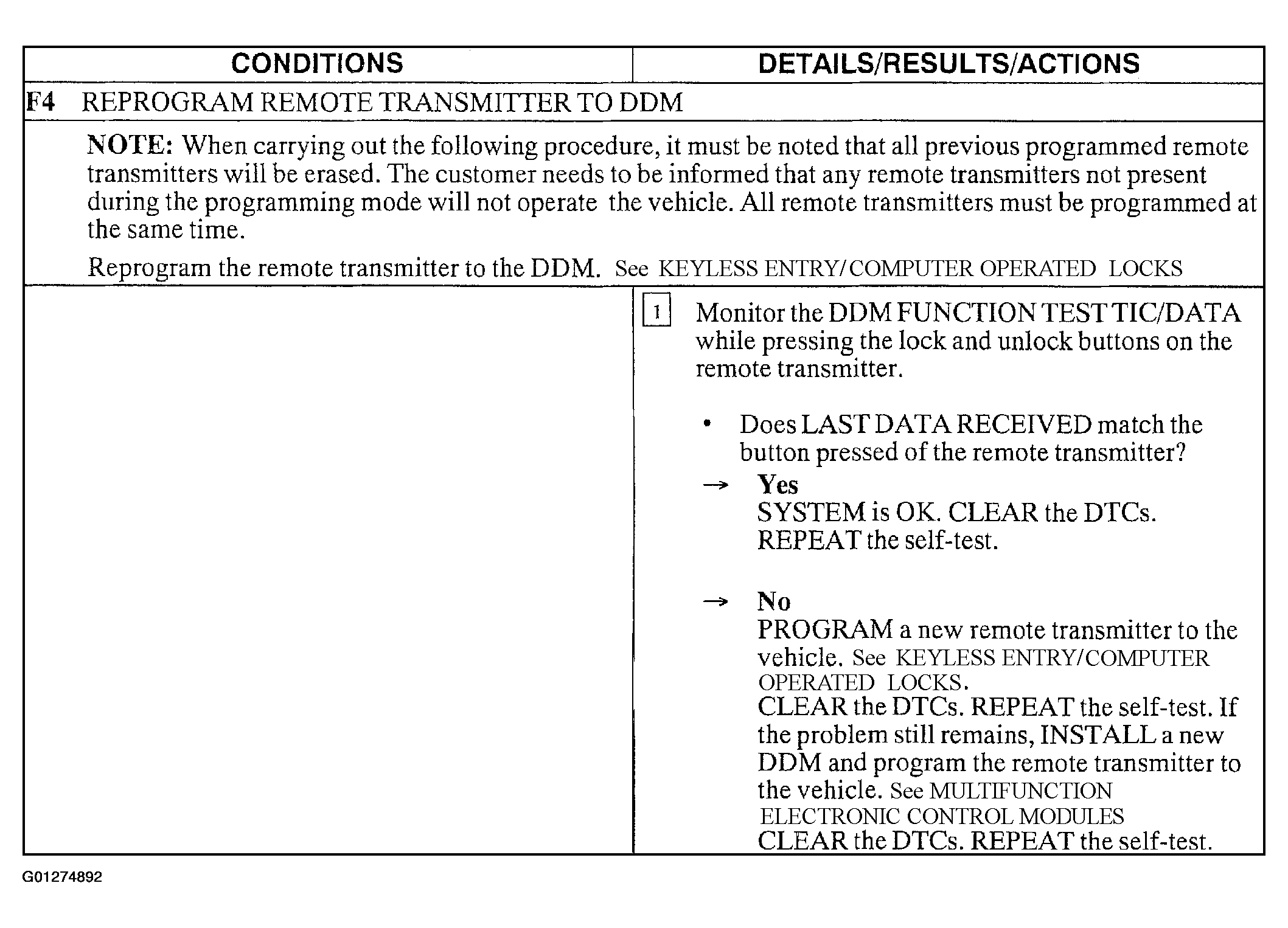

Fig 2: Pinpoint Test F: The Alarm System Does Not Arm/Disarm - Using The Remote Transmitter (Step F4)

Courtesy of FORD MOTOR CO.
