Pinpoint Test D: The Anti-Theft System Does Not Operate Correctly - Lights Flash Five Times When Arming The System

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

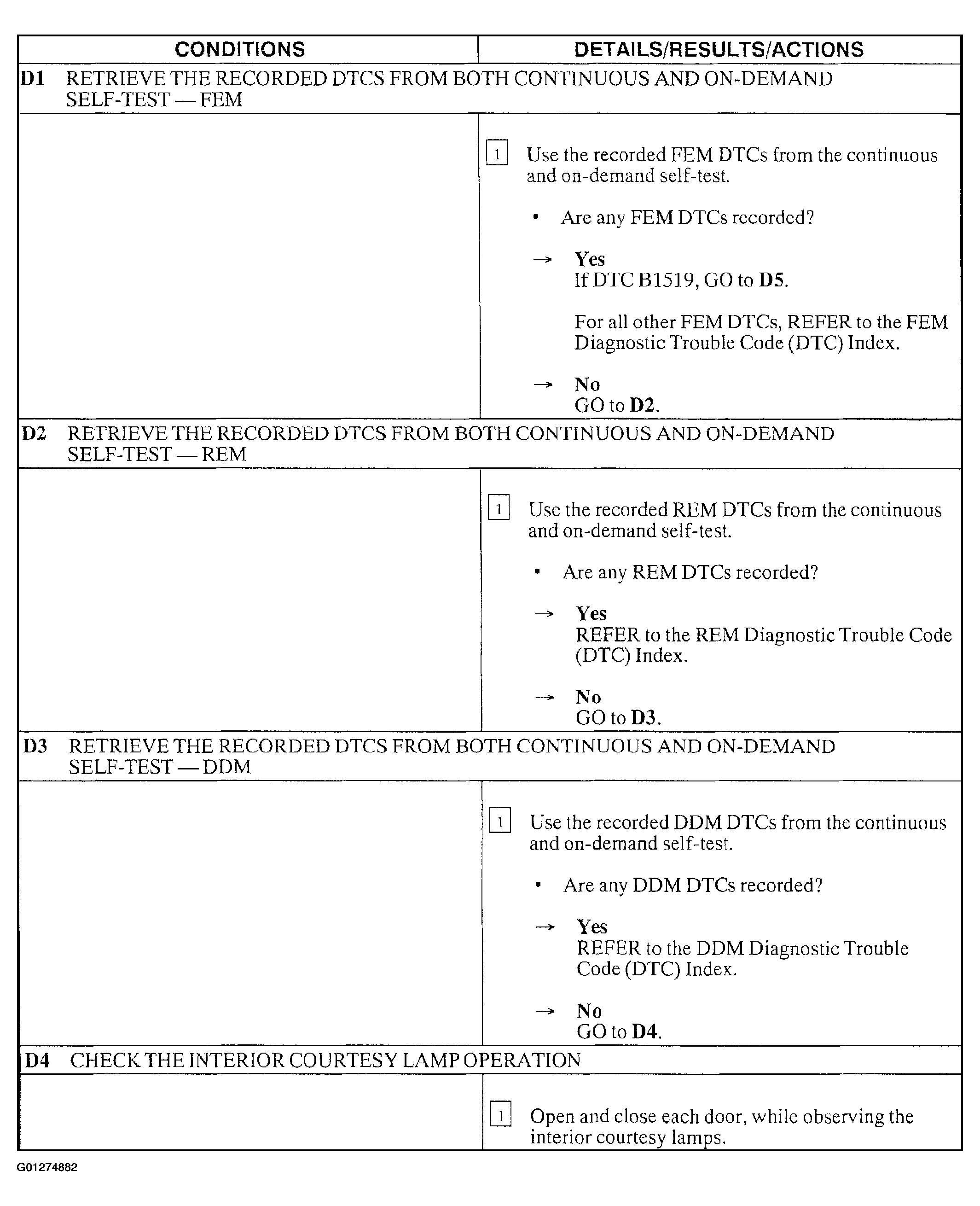

Fig 1: Pinpoint Test D: The Anti-Theft System Does Not Operate Correctly - Lights Flash Five Times When Arming The System (Steps D1 To D4)

Courtesy of FORD MOTOR CO.

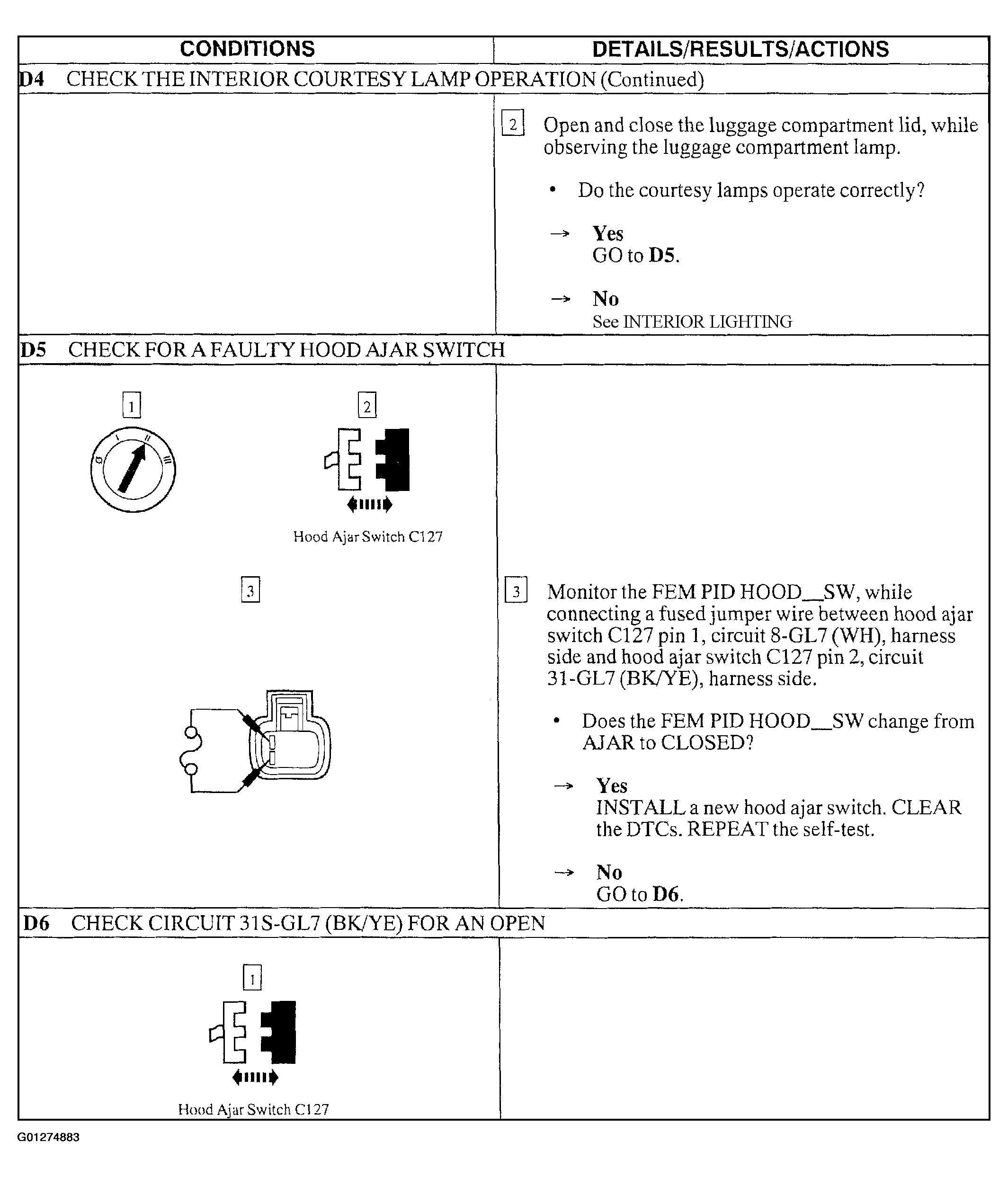

Fig 2: Pinpoint Test D: The Anti-Theft System Does Not Operate Correctly - Lights Flash Five Times When Arming The System (Steps D4 To D6)

Courtesy of FORD MOTOR CO.

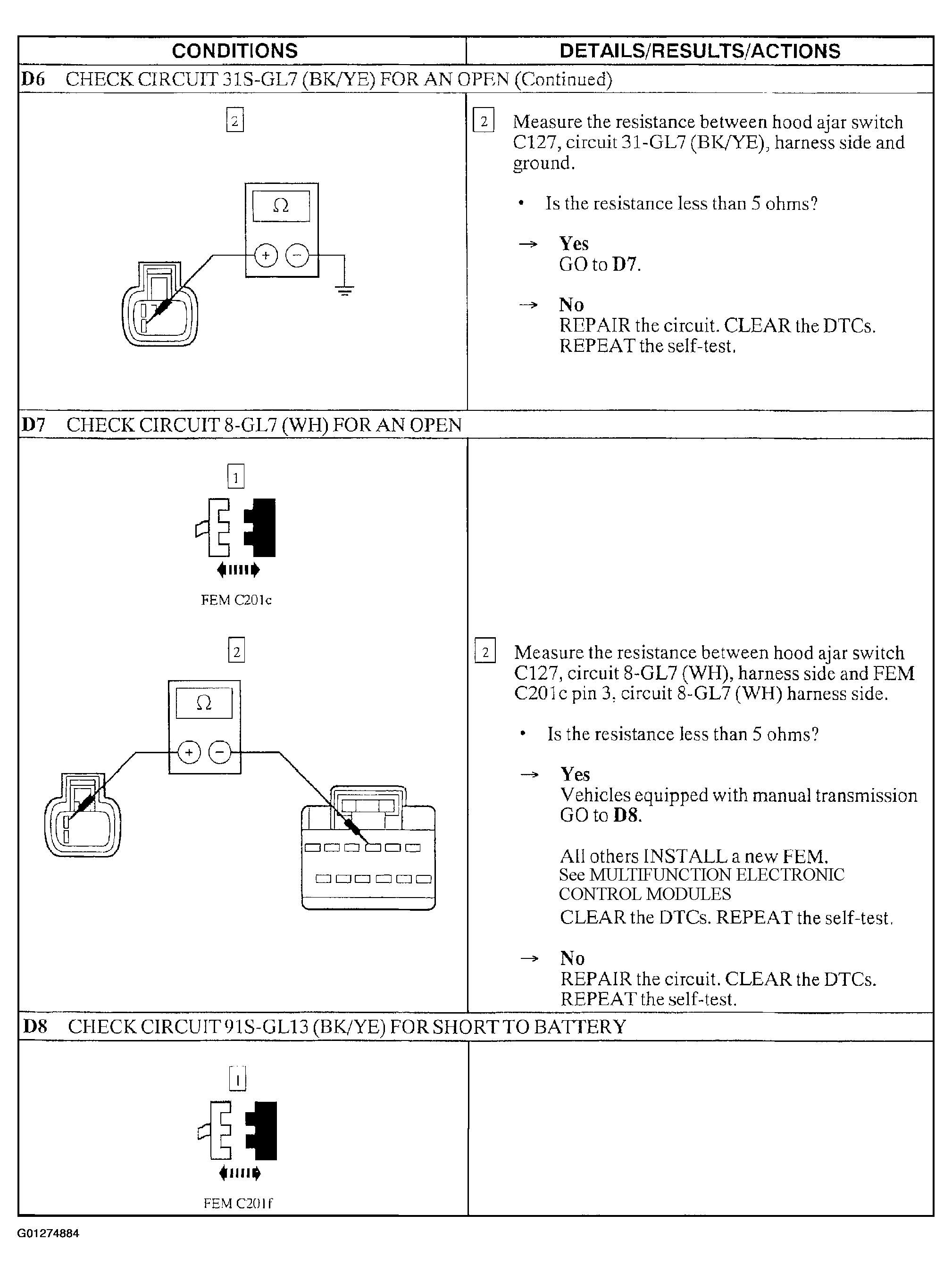

Fig 3: Pinpoint Test D: The Anti-Theft System Does Not Operate Correctly - Lights Flash Five Times When Arming The System (Steps D6 To D8)

Courtesy of FORD MOTOR CO.

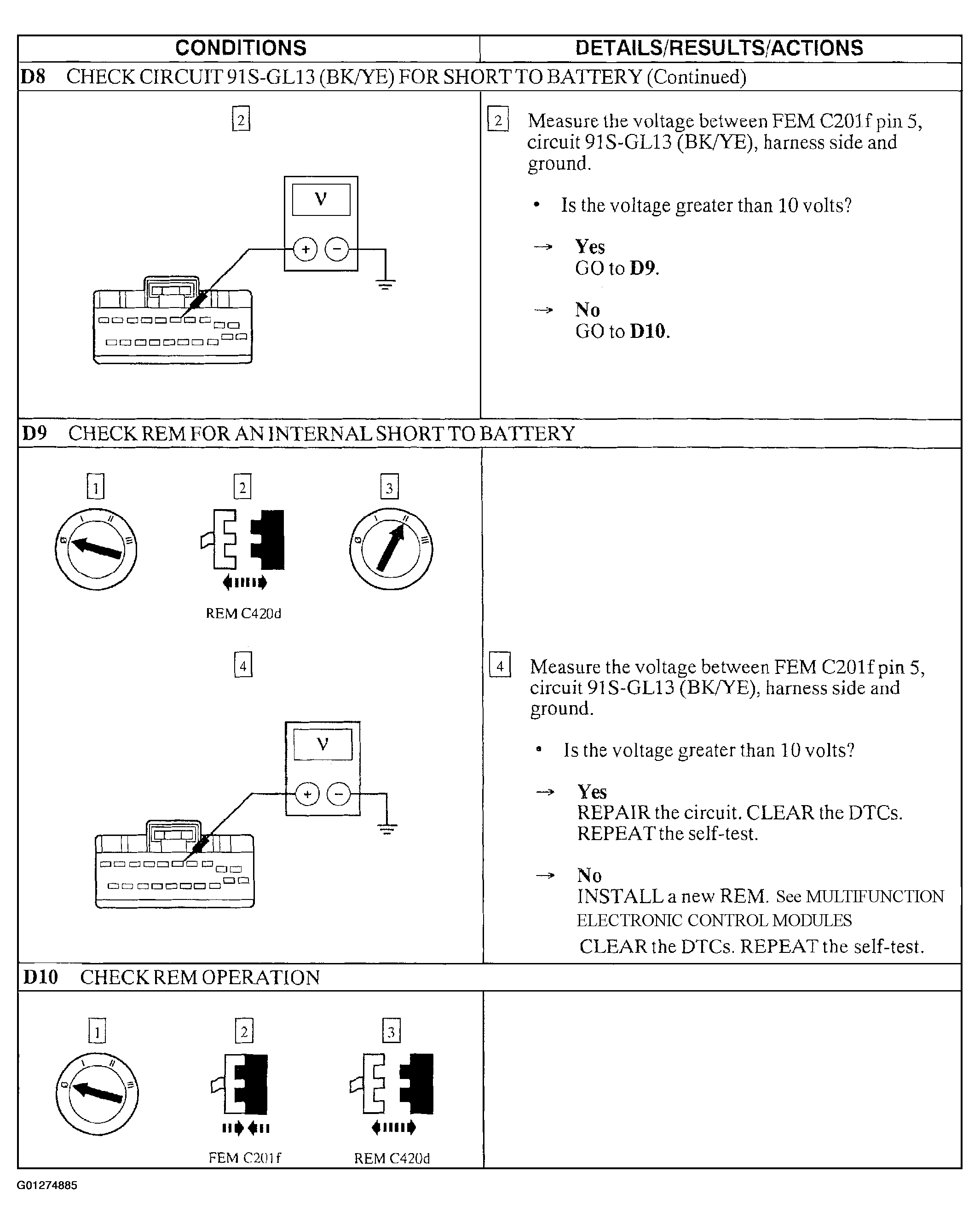

Fig 4: Pinpoint Test D: The Anti-Theft System Does Not Operate Correctly - Lights Flash Five Times When Arming The System (Steps D8 To D10)

Courtesy of FORD MOTOR CO.

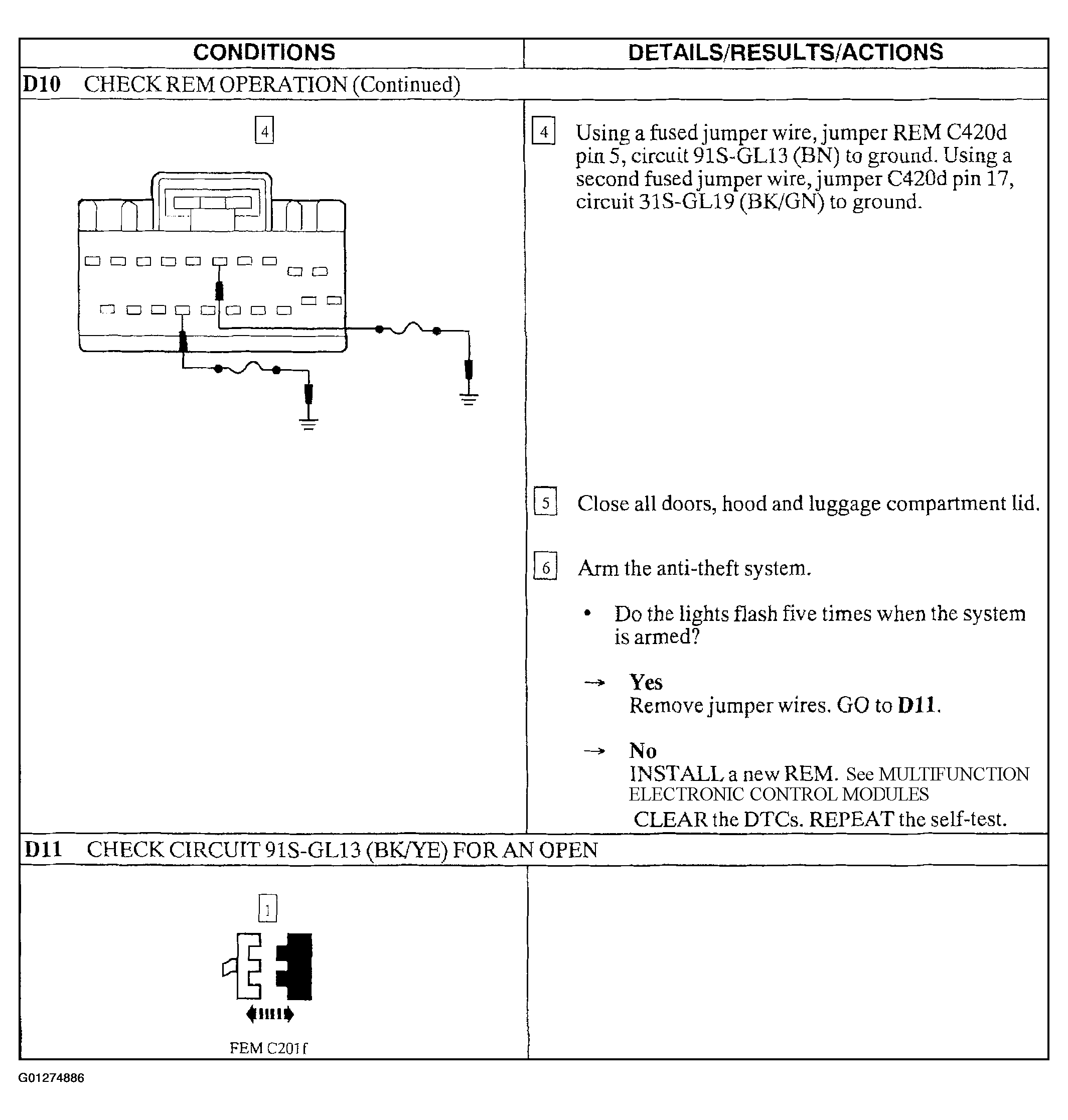

Fig 5: Pinpoint Test D: The Anti-Theft System Does Not Operate Correctly - Lights Flash Five Times When Arming The System (Steps D10 & D11)

Courtesy of FORD MOTOR CO.

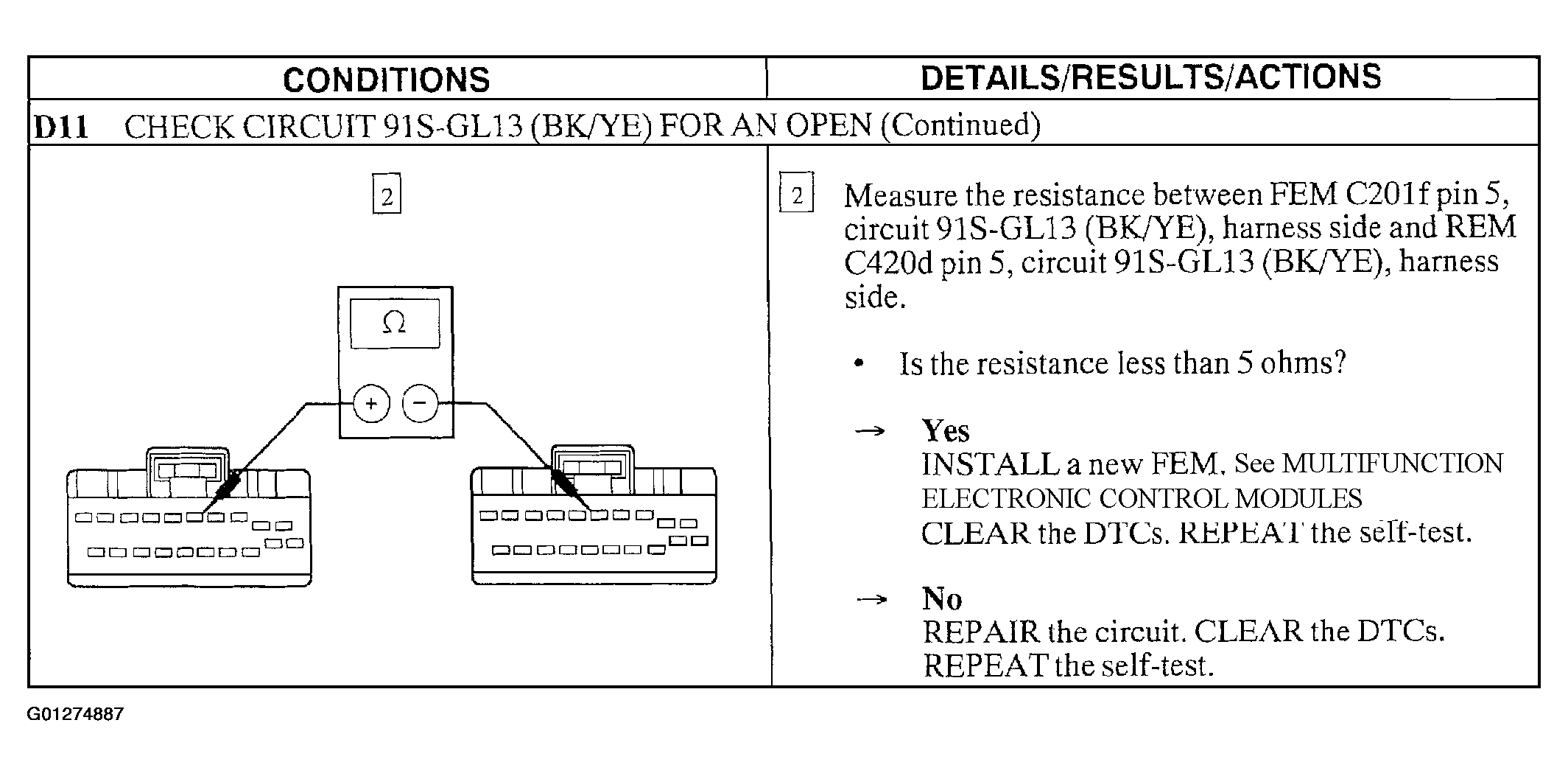

Fig 6: Pinpoint Test D: The Anti-Theft System Does Not Operate Correctly - Lights Flash Five Times When Arming The System (Step D11, Cont.)

Courtesy of FORD MOTOR CO.
