Inspection and Verification
WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If installing a new FEM, REM or DDM, the new module must be reconfigured. See MODULE CONFIGURATION
.
- Verify the customer concern by operating the perimeter anti-theft system.

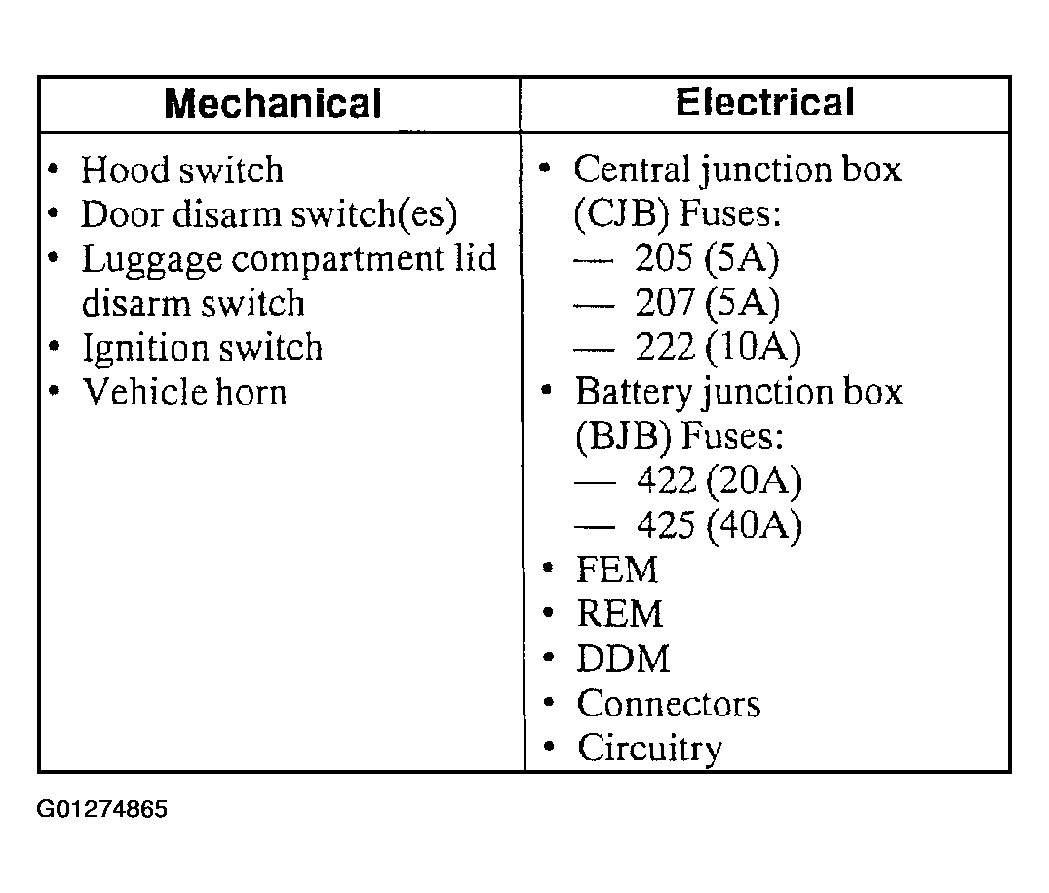

- Visually inspect for obvious signs of mechanical and electrical damage.
- If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel. If using NGS, select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
- Check that the program card is correctly installed.
- Check the connections to the vehicle.
- Check the ignition switch position.
- If the diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool manual.
- Carry out the DATA LINK DIAGNOSTICS TEST. If the diagnostic tool responds with:
- CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, see MODULE COMMUNICATIONS NETWORK .
- NO RESP/NOT EQUIP for front electronic module (FEM), go to Pinpoint Test A: No Communication With The Front Electronic Module (FEM) .
- NO RESP/NOT EQUIP for rear electronic module (REM), go to Pinpoint Test B: No Communication With The Rear Electronic Module (REM) .
- NO RESP/NOT EQUIP for driver door module (DDM), go to Pinpoint Test C: No Communication With The Driver Door Module (DDM) .
- SYSTEM PASSED, select FEM, REM from the main menu, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out self-test diagnostics for the FEM or REM.
- If the DTCs retrieved are related to the concern, go to FEM DIAGNOSTIC TROUBLE CODE (DTC) INDEX or REM DIAGNOSTIC TROUBLE CODE (DTC) INDEX to continue diagnostics.
- If no DTCs related to the concern are retrieved, proceed to Symptom Chart to continue diagnostics.
