Pinpoint Test A: MECS Cooling Pump Fault

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multi-meter probes.
  1. A1 CHECK FOR DTCs
    • Connect the scan tool.
    • Enter the following diagnostic mode on the scan tool: RETRIEVE.
    • Carry out the PCM on-demand self test.
    • Are DTCs retrieved?
  2. A2 CHECK BJB FUSE 13 (15A)
    • Check fuse: BJB 13 (15A).
    • Is the resistance less than 5 ohms?
    • Yes  : GO to  A5.
    • No  : GO to A3.
  3. A3 CHECK THE MECS COOLANT PUMP RELAY POWER SUPPLY CIRCUIT FOR A SHORT TO GROUND
    • Disconnect: BJB Fuse 13 (15A).
    • Disconnect: BJB Relay 44.
    • Disconnect: BJB Relay 42.
    • Measure the resistance between the output side of BJB fuse 13 (15A) and ground.
      Fig 1: Measuring Resistance Between Output Side Of BJB Fuse 13 (15A) And Ground
      G07786241Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?
    • Yes  : GO to A4.
    • No  : REPAIR circuit SBB13 (GY/RD) for a short to ground.

      CONNECT all components. TEST the system for normal operation.

  4. A4 CHECK THE MECS COOLANT PUMP AND HEATER PUMP POWER SUPPLY CIRCUITS FOR A SHORT TO GROUND
    • Disconnect: MECS Coolant Pump C1466.
    • Disconnect: Heater Pump Motor C1450.
    • Measure the resistance between BJB relay 44 pin 5 circuit CE621 (YE/GY), BJB side and ground.
      Fig 2: Measuring Resistance Between BJB Relay 44 Pin 5 Circuit CE621 (YE/GY), BJB Side And Ground
      G07786242Courtesy of FORD MOTOR CO.
    • Measure the resistance between BJB relay 42 pin 5 circuit CHC01 (BN/YE), BJB side and ground.
      Fig 3: Measuring Resistance Between BJB Relay 42 Pin 5 Circuit CHC01 (BN/YE), BJB Side And Ground
      G07786243Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : The condition that caused BJB fuse 13 (15A) to blow is not present. Inspect the wiring harness for an intermittent condition. Repeat test Steps A3 and A4 while wiggling the vehicle wiring harness and visually checking for damage.
    • No  : REPAIR circuit CE621 (YE/GY) or CHC01 (BN/YE) for a short to ground. CONNECT all components. TEST the system for normal operation.
  5. A5 CHECK THE MECS COOLANT PUMP RELAY (BJB RELAY 44)
    • Yes  : GO to A6.
    • No  : INSTALL a new MECS pump relay (BJB relay 44).

      TEST the system for normal operation.

  6. A6 CHECK THE MECS COOLANT PUMP RELAY POWER SUPPLY CIRCUIT FOR AN OPEN
    • Measure the resistance between BJB fuse 13 (15A) circuit CE621 (YE/GY), BJB side and BJB relay 44 pin 5 circuit CE621 (YE/GY), BJB side.
      Fig 4: Measuring Resistance Between BJB Fuse 13 (15A) Circuit CE621 (YE/GY), BJB Side And BJB Relay 44 Pin 5 Circuit CE621 (YE/GY), BJB Side
      G07786244Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to A7.
    • No  : REPAIR circuit CE621 (YE/GY) for an open.

      CONNECT all components. TEST the system for normal operation.

  7. A7 CHECK THE MECS COOLANT PUMP POWER SUPPLY CIRCUIT FOR AN OPEN
    • Measure the resistance between BJB relay 44 pin 5 circuit CE621 (YE/GY), BJB side and MECS coolant pump C1466-2, circuit CE621 (YE/GY).

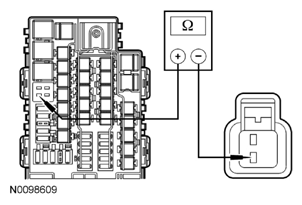

      Fig 5: Measuring Resistance Between BJB Relay 44 Pin 5 Circuit CE621 (YE/GY), BJB Side And MECS Coolant Pump C1466-2, Circuit CE621 (YE/GY)
      G07786245Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to A8.
    • No  : REPAIR circuit CE621 (YE/GY) for an open.

      CONNECT all components. TEST the system for normal operation.

  8. A8 CHECK THE MECS COOLANT PUMP GROUND CIRCUIT FOR AN OPEN
    • Measure the resistance between MECS coolant pump 1466-1 circuit GD121 (BK/YE) and ground.
      Fig 6: Measuring Resistance Between MECS Coolant Pump 1466-1 Circuit GD121 (BK/YE) And Ground
      G06275587Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to A9.
    • No  : REPAIR circuit GD121 (BK/YE). CONNECT all components. TEST the system for normal operation.
  9. A9 CHECK BJB FUSE 47 (10A)
    • Check fuse: BJB 47 (10A).
    • Is the resistance less than 5 ohms?
    • Yes  : GO to A10.
    • No  : REPAIR circuit CBK03 (GY) for a short to ground.

      CONNECT all components. TEST the system for normal operation.

  10. A10 CHECK FOR VOLTAGE SUPPLIED TO BJB FUSE 47 (10A)
    • Disconnect: BJB Fuse 47 (10A).
    • Ignition ON.
    • Measure the voltage at the supply side of BJB fuse 47 (10A).
      Fig 7: Measuring Voltage At Supply Side Of BJB Fuse 47 (10A)
      G06275588Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : GO to A11.
    • No  : REPAIR circuit CE612 (GY/VT) for an open.

      CONNECT all components. TEST the system for normal operation.

  11. A11 CHECK THE MECS COOLANT PUMP RELAY CONTROL POWER SUPPLY CIRCUIT FOR AN OPEN
    • Ignition OFF.
    • Measure the resistance between the output side of BJB fuse 47 (10A), circuit CBK03 (GY) and BJB relay 44 pin 1 circuit CBK03 (GY).
      Fig 8: Measuring Resistance Between Output Side Of BJB Fuse 47 (10A), Circuit CBK03 (GY) AND BJB Relay 44 Pin 1 Circuit CBK03 (GY)
      G06275589Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to A12.
    • No  : REPAIR circuit CBK03 (GY) for an open. CONNECT all components. TEST the system for normal operation.
  12. A12 CHECK FOR GROUND AT THE MECS COOLANT PUMP RELAY
    • Connect: BJB fuse 47 (10A).
    • Ignition ON.
    • Measure the voltage between BJB relay 44 pins 1 and 2, BJB side.
      Fig 9: Measuring Voltage Between BJB Relay 44 Pins 1 And 2, BJB Side
      G06275590Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : INSTALL a new MECS pump. REFER to MOTOR ELECTRONICS PUMP  in this service information. CONNECT all components. TEST the system for normal operation.
    • No  : GO to A13.
  13. A13 CHECK THE MECS COOLANT PUMP RELAY CONTROL GROUND CIRCUIT FOR AN OPEN
    • Ignition OFF.
    • Disconnect: PCM C175T.
    • Measure the resistance between BJB relay 44 pin 2, BJB side circuit CE318 (VT) and PCM C175T-49 circuit CE318 (VT).

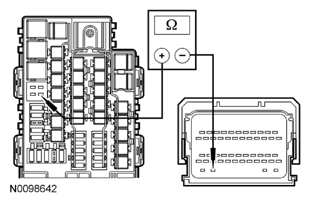

      Fig 10: Measuring Resistance Between BJB Relay 44 Pin 2, BJB SIDE Circuit CE318 (VT) And PCM C175T-49 Circuit CE318 (VT)
      G07786250Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
