Pinpoint Test S: The Fog Lamps Are Inoperative

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. S1 CHECK LOW BEAM HEADLAMPS
    • Inspect the low beam headlamp operation.
    • Do the low beams operate correctly?
  2. S2 CHECK HEADLAMP SWITCH OUTPUT
    • Disconnect: Central Junction Box (CJB) C270a.
    • Key in ON position.
      NOTE: Headlamps must be on and in the low beam position.

      Turn the headlamp switch to the ON position and engage the fog lamp switch.

    • Measure the voltage between CJB C270a-17, circuit 276 (BN) harness side and ground.
      Fig 1: Checking Headlamp Switch Output
      G03910993Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : TURN the headlamp switch off. GO to  S5.
    • No  : TURN the headlamp switch off. GO to S3.
  3. S3 CHECK THE HEADLAMP SWITCH OUTPUT CIRCUIT FOR AN OPEN
    • Key in OFF position.
    • Disconnect: Headlamp Switch C205a.
    • Measure the resistance between CJB C270a-17, circuit 276 (BN), harness side and headlamp switch C205a-5, circuit 275 (YE), harness side.
      Fig 2: Checking Headlamp Switch Output Circuit For Open
      G03910994Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to S4.
    • No  : REPAIR the circuit. TEST the system for normal operation.
  4. S4 CHECK CIRCUIT 640 (RD/YE) FOR AN OPEN
    • Key in ON position.
    • Measure the voltage between headlamp switch C205a-2, circuit 640 (RD/YE), harness side and ground.
      Fig 3: Checking Circuit 640 (RD/YE) For Open
      G03945659Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : INSTALL a new headlamp switch. REFER to LAMP SWITCH - HEADLAMP . TEST the system for normal operation.
    • No  : REPAIR the circuit. TEST the system for normal operation.
  5. S5 CHECK THE CJB
    • Connect: CJB C270a.
    • Disconnect: CJB C270h.
      NOTE: Headlamps must be on and in the low beam position.

      Turn the headlamp switch to the ON position and engage the fog lamp switch.

    • Measure the voltage between CJB C270h-2, circuit 478 (TN/OG), component side and ground.

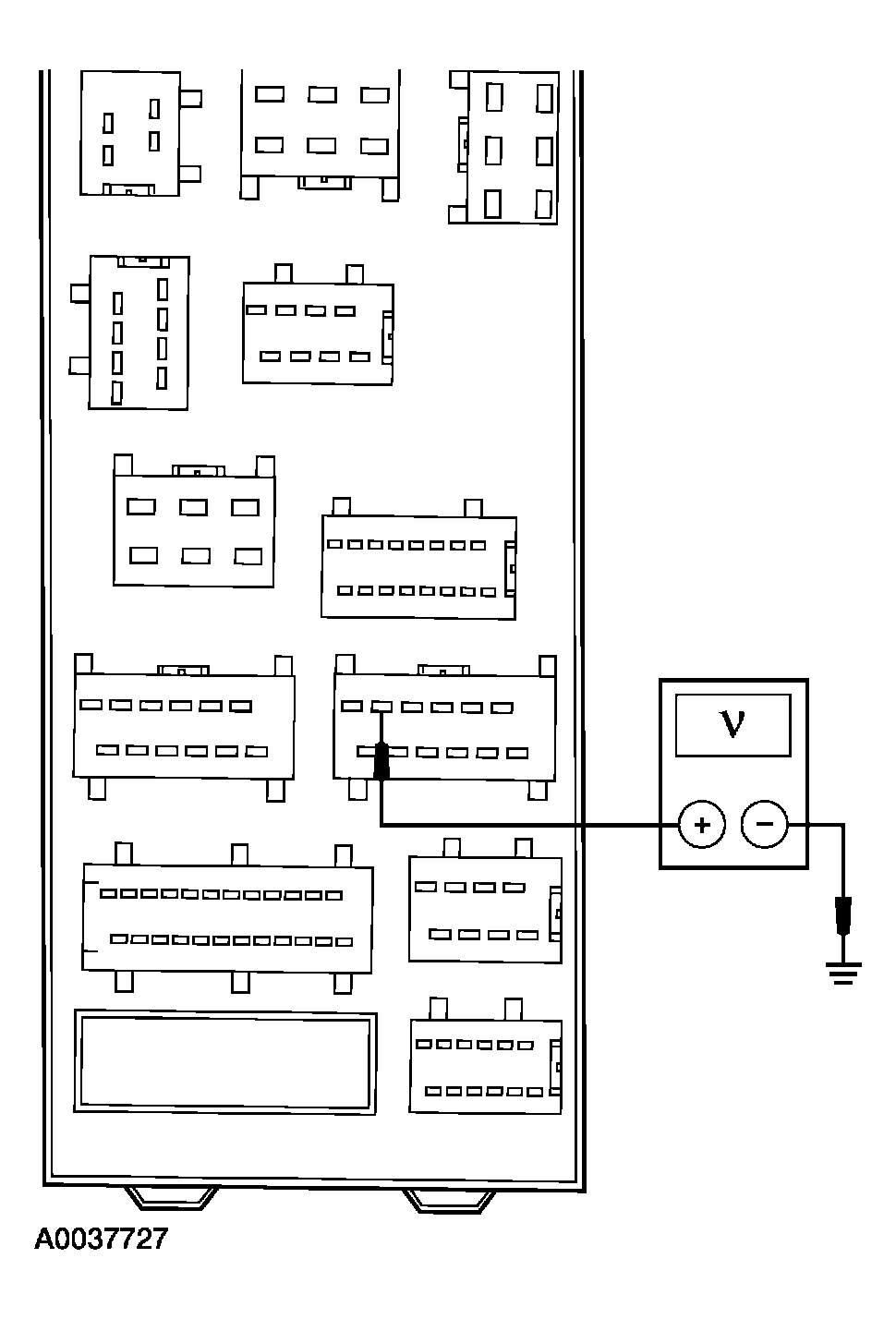

      Fig 4: Checking CJB
      G03910996Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : TURN the headlamp switch off. GO to  S7.
    • No  : TURN the headlamp switch off. GO to S6.
  6. S6 CHECK 12 (LG/BK) FOR AN OPEN CIRCUIT
    • Disconnect: CJB C270a.
    • Measure the resistance between CJB C270a-13, circuit 12 (LG/BK), harness side and ground.
      Fig 5: Checking 12 (LG/BK) For Open Circuit
      G03910997Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : INSTALL a new CJB. TEST the system for normal operation.
    • No  : REPAIR the circuit. TEST the system for normal operation.
  7. S7 CHECK FOG LAMP GROUND
    • Disconnect: Inoperative Fog Lamp.
    • Measure the resistance between fog lamp connector pin 1, circuit 57 (BK), harness side and ground.
      Fig 6: Checking Fog Lamp Ground
      G03910998Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : REPAIR circuit 478 (TN/OG). TEST the system for normal operation.
    • No  : REPAIR circuit 57 (BK). TEST the system for normal operation.
