Pinpoint Test E: PC-A (Line Pressure) Solenoid

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: This test should only be used if DTCs P0748, P0960, P0962 or P0963 are present.
NOTE: Refer to the Transmission Vehicle Harness Connector  illustration preceding these pinpoint tests.
NOTE: Refer to the Transmission Internal Harness Connector  illustration preceding these pinpoint tests.

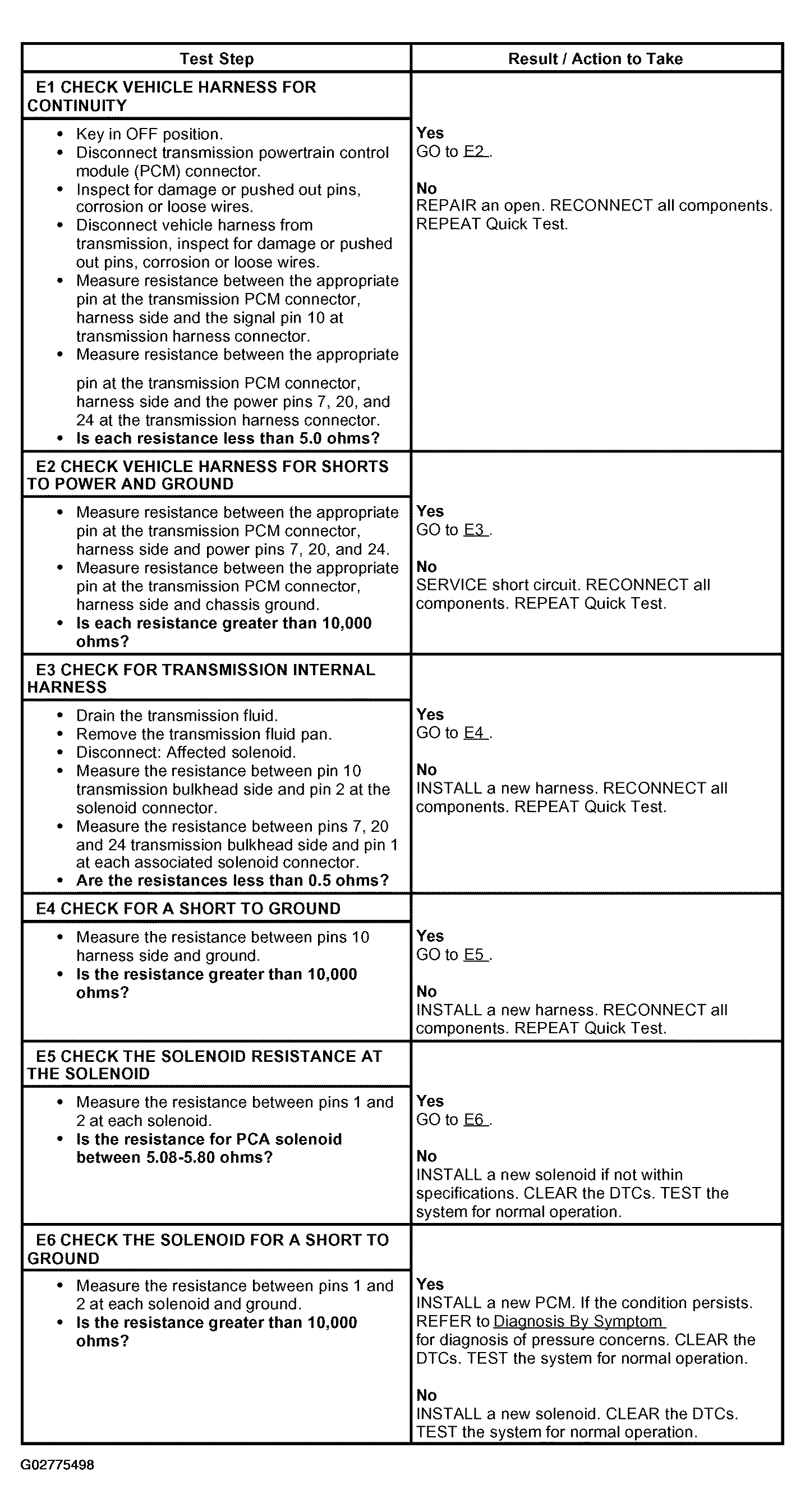

Fig 1: Pinpoint Test E: PC-A (Line Pressure) Solenoid (E1-E6)
G02775498Courtesy of FORD MOTOR CO.
