Transmission Vehicle Harness Connector

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The pressure switches shown in this transmission vehicle harness connector locator, will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

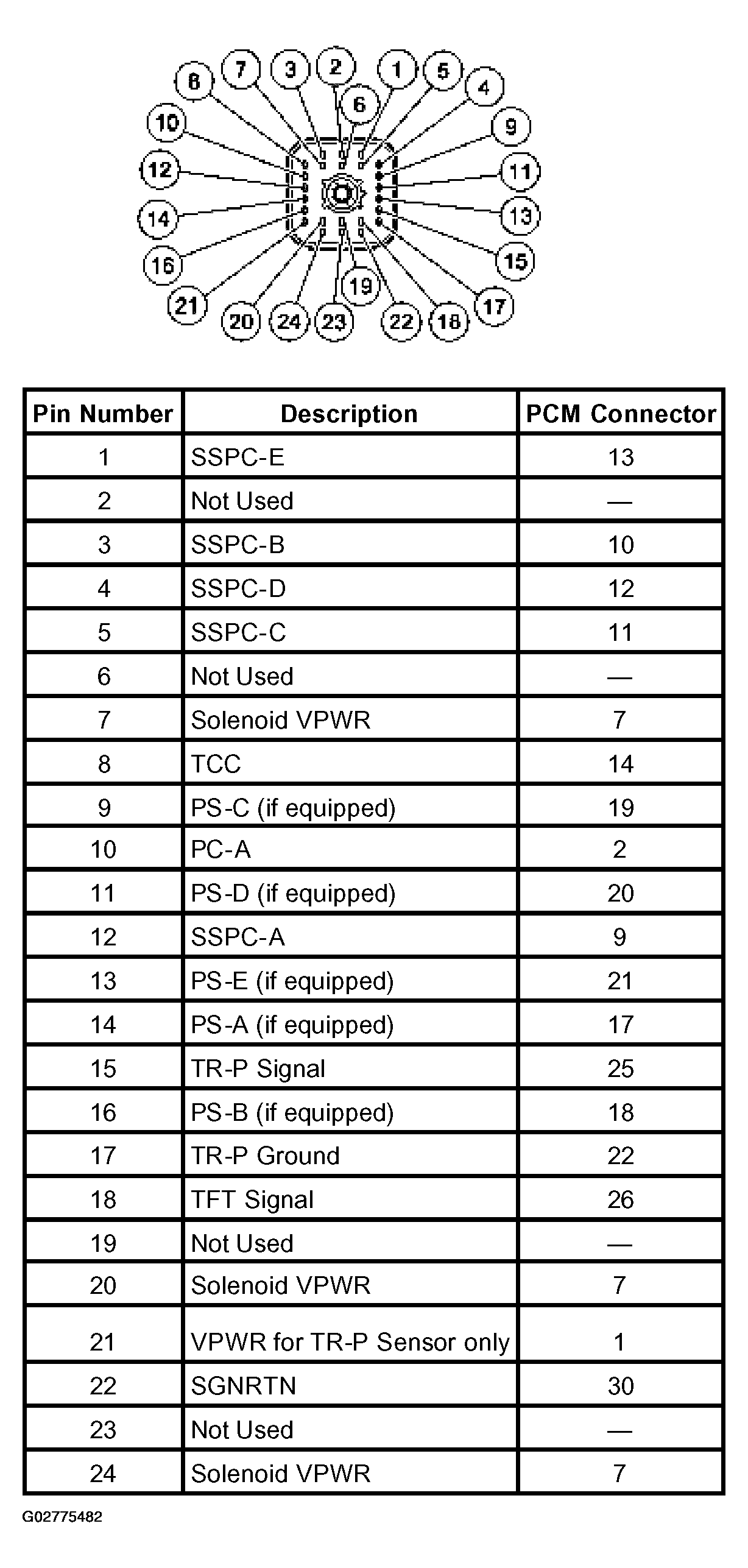

Fig 1: Identifying Transmission Vehicle Harness Connector
G02775482Courtesy of FORD MOTOR CO.
