Pinpoint Test D: Turbine Shaft Speed (TSS), Intermediate Shaft Speed And Output Shaft Speed (OSS) Sensors

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests.

NOTE: Refer to the Transmission Internal Harness Connector illustration preceding these pinpoint tests.

NOTE: Read and record all DTCs.

NOTE: Use the PID Chart for available diagnostic PIDs. Refer to OUTPUT STATE CONTROL (OSC) MODE .

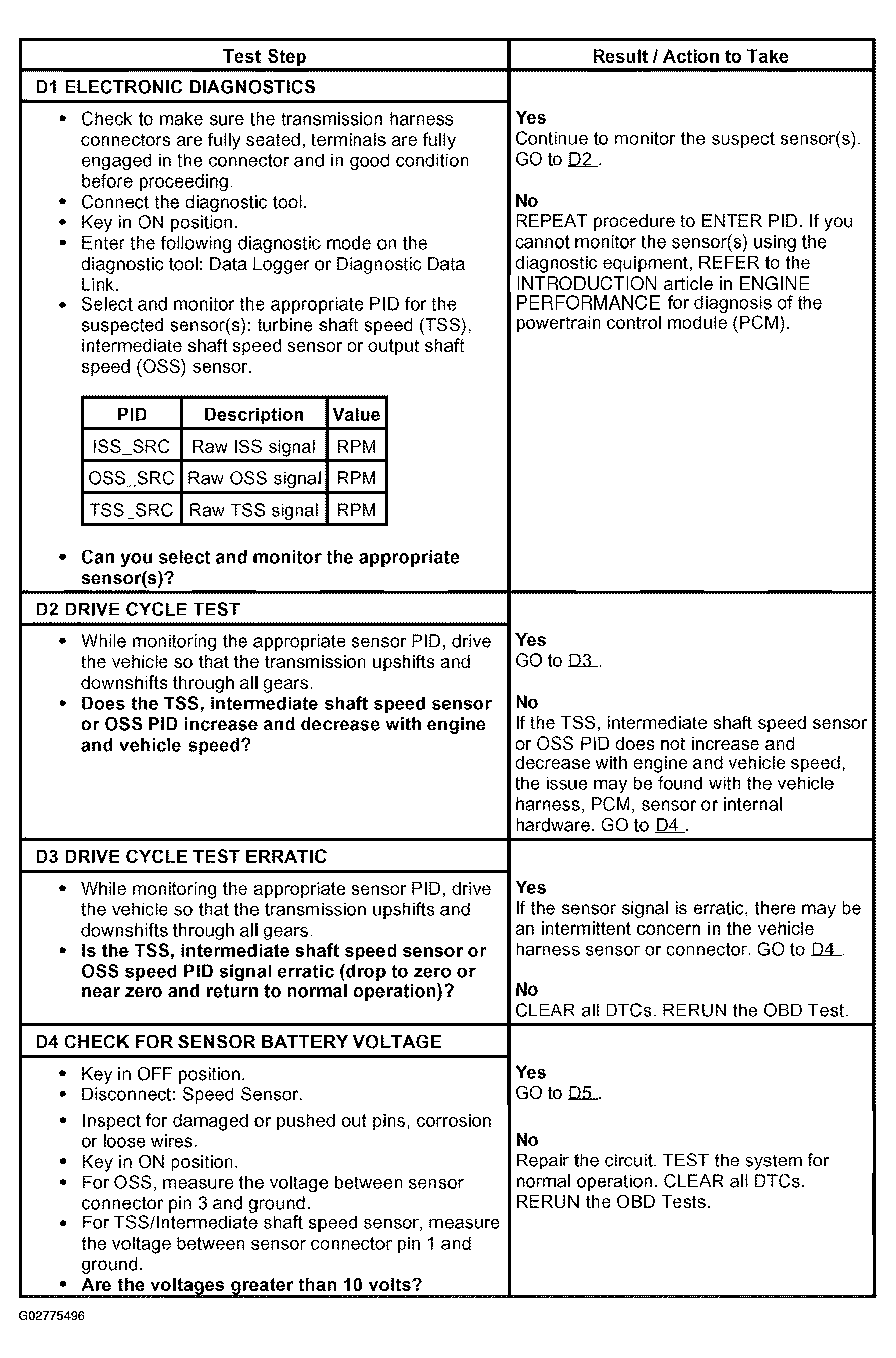

Fig 1: Pinpoint Test D: Turbine Shaft Speed Intermediate Shaft Speed And Output Shaft Speed Sensors (D1-D4)

Courtesy of FORD MOTOR CO.

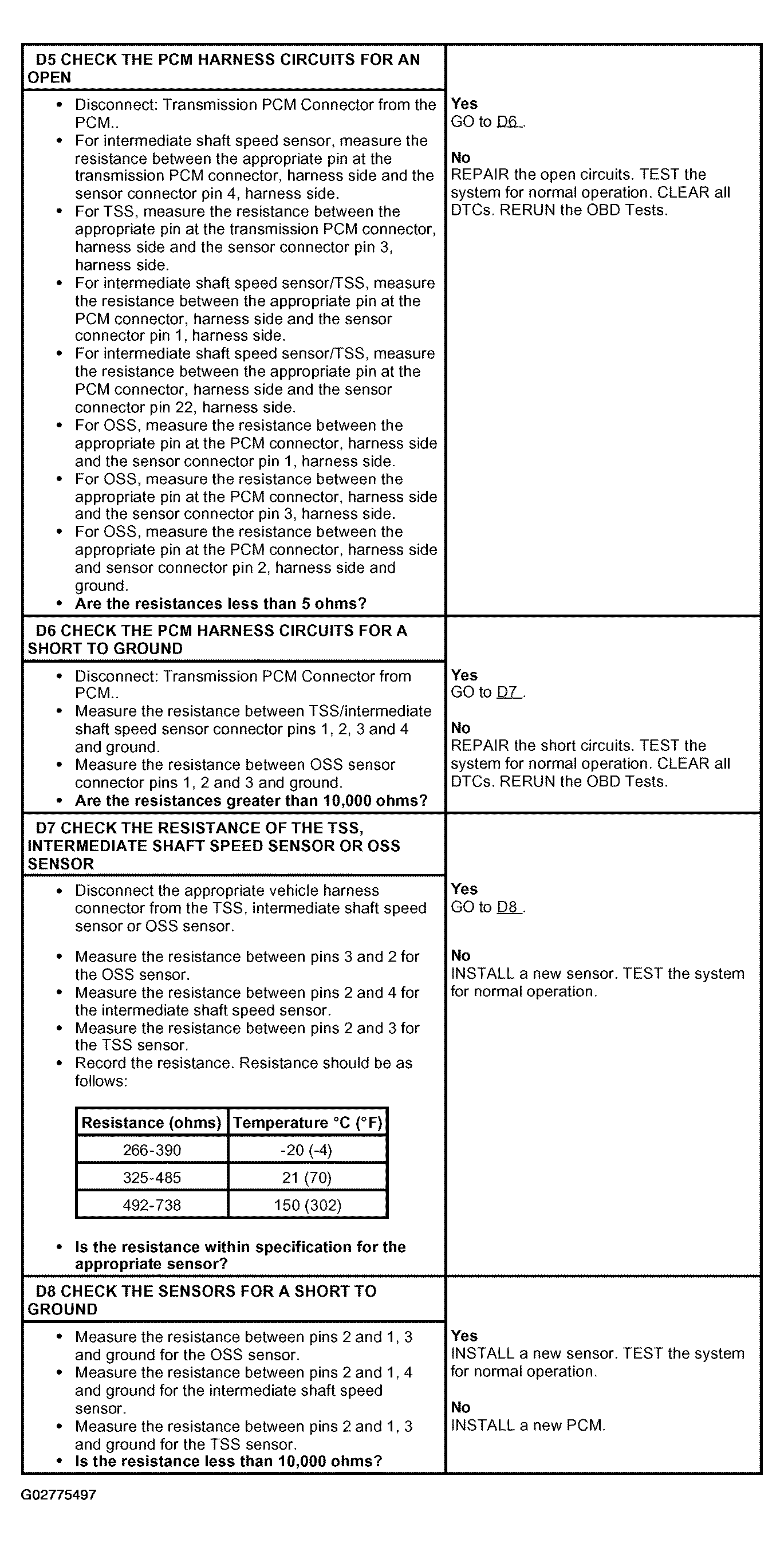

Fig 2: Pinpoint Test D: Turbine Shaft Speed Intermediate Shaft Speed And Output Shaft Speed Sensors (D5-D8)

Courtesy of FORD MOTOR CO.
