Inspection and Verification

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern.
  2. Visually inspect for obvious signs of mechanical or electrical damage.

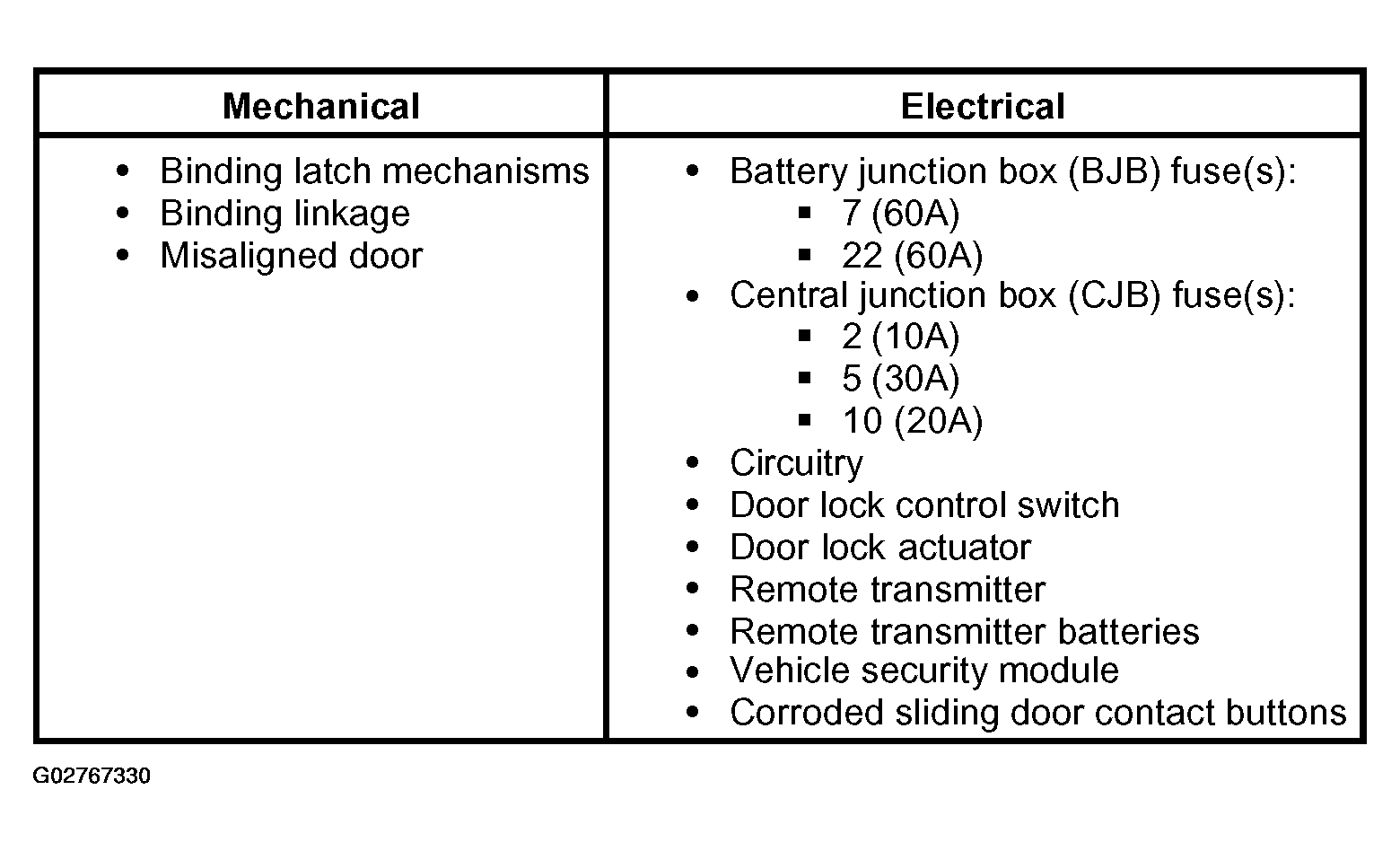

    Fig 1: Visual Inspection Chart
    G02767330Courtesy of FORD MOTOR CO.
  3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
  4. If the cause is not visually evident, connect the diagnostic tool to the data link connector and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
    • Check that the program card is correctly installed.
    • Check the connections to the vehicle.
    • Check the ignition switch position.
  5. If the diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool operating manual.
  6. Carry out the diagnostic tool data link test. If the diagnostic tool responds with:
    • SCP or ISO circuit fault; all electronic control units no response/not equipped, refer to MULTIFUNCTION ELECTRONIC MODULE .
    • No response/not equipped for the vehicle security module, refer to MULTIFUNCTION ELECTRONIC MODULE .
    • System passed, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out the self-test diagnostics for the vehicle security module.
  7. If the DTCs retrieved are related to the concern, proceed to the DTC DESCRIPTION .

VEHICLE SECURITY MODULE DIAGNOSTIC TROUBLE CODE (DTC) INDEX

DTC DESCRIPTION

DTC Description Source Action to Take
B1309 Power Door Lock Circuit Short to Ground Vehicle Security Module Go To PINPOINT TEST F: THE DOOR LOCKS OPERATE ONLY ONE WAY .
B1338 Door Ajar RR Circuit Short to Ground Vehicle Security Module INTERIOR LIGHTING .
B1341 Power Door Unlock Circuit Short to Ground Vehicle Security Module Go To PINPOINT TEST F: THE DOOR LOCKS OPERATE ONLY ONE WAY .
B1485 Brake Pedal Input Circuit Battery Short Vehicle Security Module This DTC is invalid for this vehicle application.
B2276 Less Than Two Transmitters Programmed Vehicle Security Module Go To PINPOINT TEST K: THE REMOTE KEYLESS ENTRY TRANSMITTER IS OUT OF SYNCHRONIZATION .
B2425 Remote Keyless Entry Out of Synchronization Vehicle Security Module Go To PINPOINT TEST K: THE REMOTE KEYLESS ENTRY TRANSMITTER IS OUT OF SYNCHRONIZATION .
- All Other DTCs Vehicle Security Module REFER to MULTIFUNCTION ELECTRONIC MODULE .
