Pinpoint Test F: The Door Locks Operate Only One Way

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

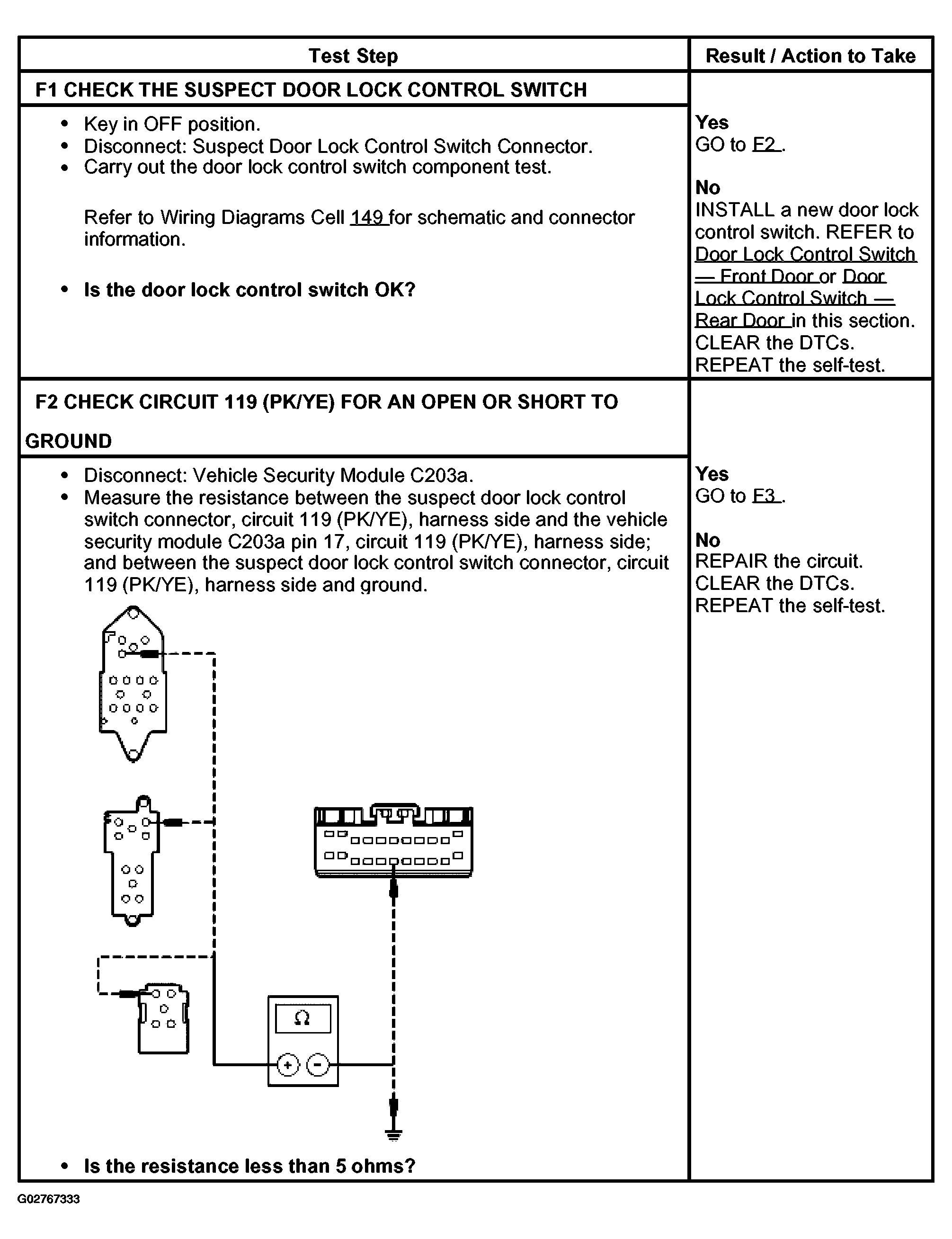

Fig 1: Pinpoint Test F: Door Locks Operate Only One Way (Steps F1-F2)
G02767333Courtesy of FORD MOTOR CO.

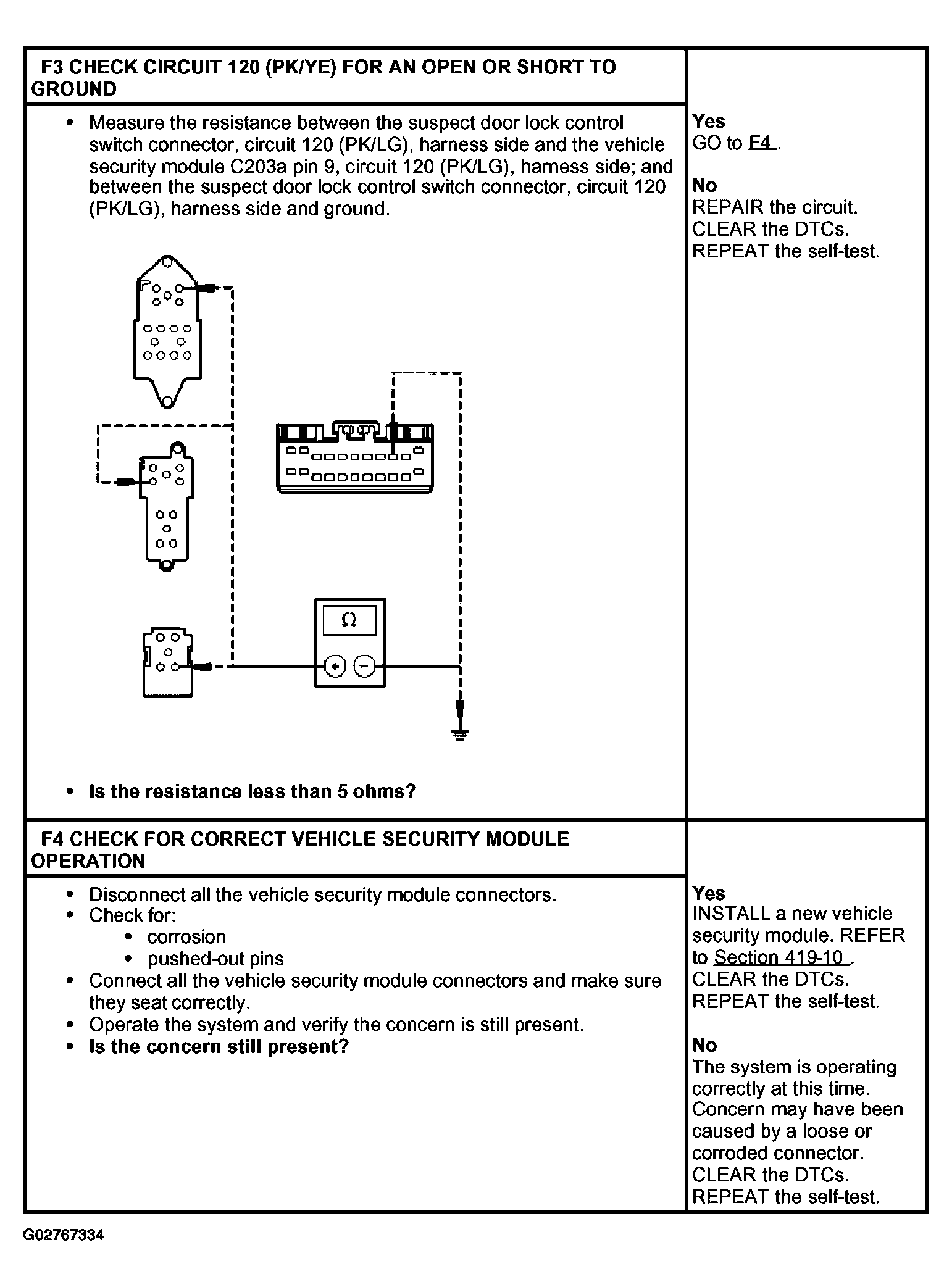

Fig 2: Pinpoint Test F: Door Locks Operate Only One Way (Steps F3-F4)
G02767334Courtesy of FORD MOTOR CO.
