Rear Wheel Bearing and Axle Shaft Oil Seal - Semi-Floating Axle: Installation
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- If removed, lubricate the new rear wheel bearing with the specified axle lubricant.

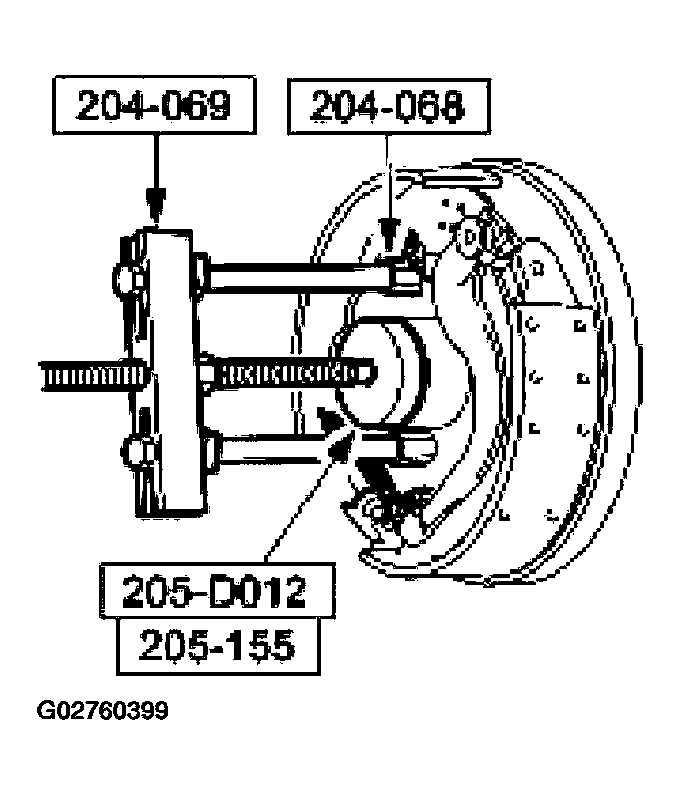

- Using the special tools, install the rear wheel bearing.

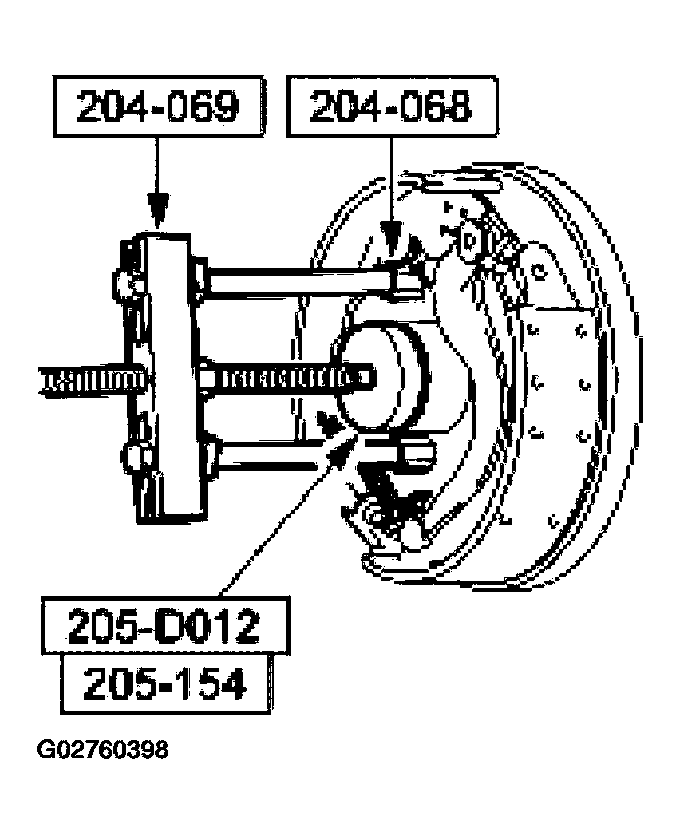

- Using the special tools, install the new wheel bearing oil seal.
- Using the special tools, install the new wheel bearing oil seal.
- Lubricate the cavity between the wheel bearing oil seal lips and the rear wheel bearing with grease.
- Install the axle shaft. For additional information, refer to AXLE SHAFT - SEMI-FLOATING AXLE .
CAUTION:
Install the rear wheel bearing with the identification numbers facing outward.
CAUTION:
Do not cock the rear wheel bearing in the axle tube.
CAUTION:
Do not cock the wheel bearing oil seal in the axle tube.
NOTE:

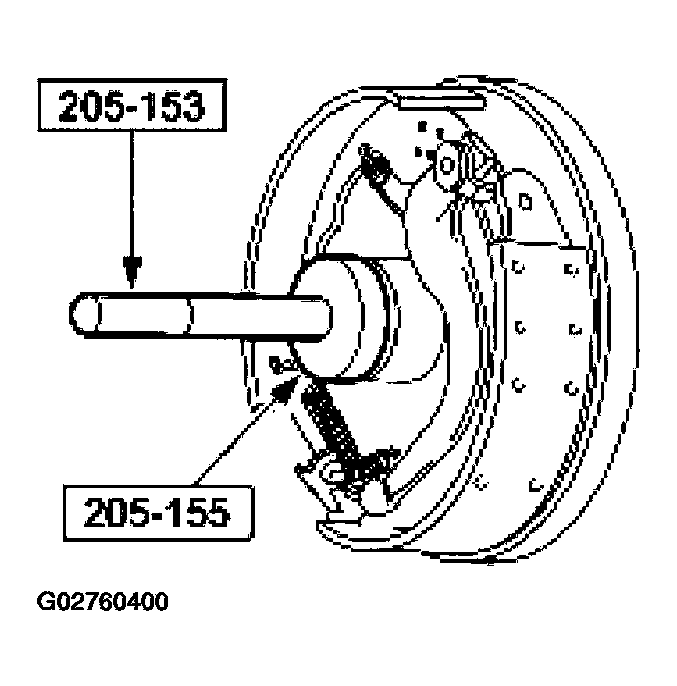

The following step shows an alternate method for installing the wheel bearing oil seal.
CAUTION:
Do not cock the wheel bearing oil seal in the axle tube bore.
NOTE:
This step is an alternate method for installing the wheel bearing oil seal. Carry out this step if wheel bearing oil seal installation was not done in the previous step.
