Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist or raise the rear end of the vehicle with a jack. Install safety stands under the frame rails and lower the jack or hoist enough to allow the rear axle to drop into the rebound position for working clearance. For additional information, refer to JACKING & LIFTING .
  2. Remove the differential housing cover and drain the lubricant.
    • Clean the gasket material from the differential housing cover and the differential housing.

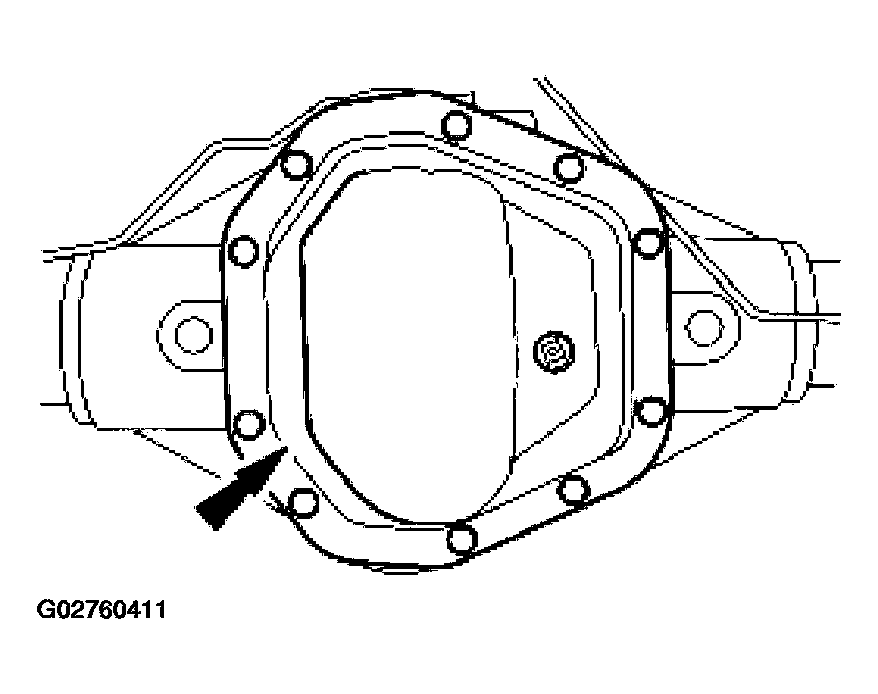

    Fig 1: Removing Differential Housing Cover
    G02760411Courtesy of FORD MOTOR CO.
