Low Contact Pattern That Is Contacting More Toward the Heel

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

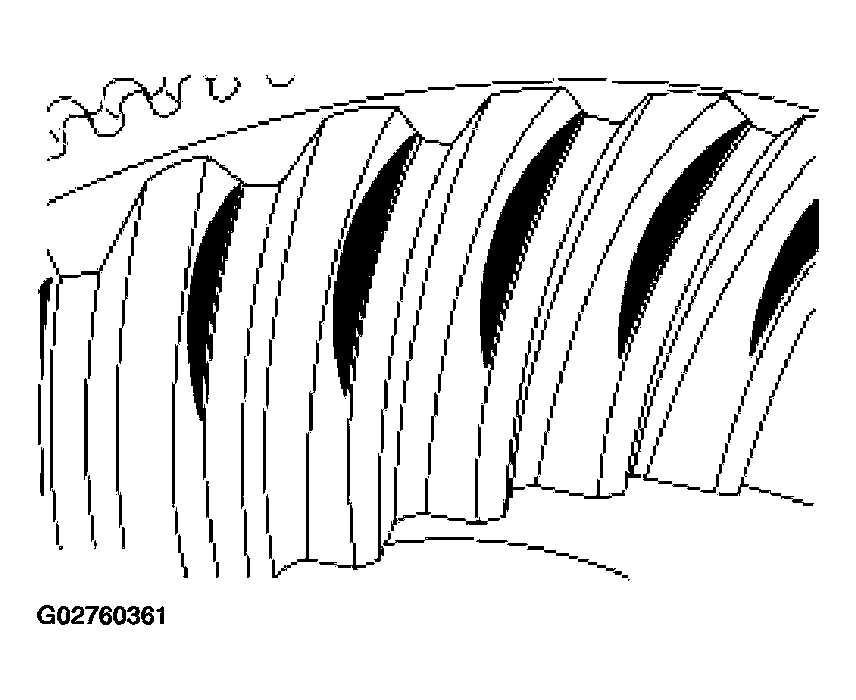

Fig 1: Gross Pattern Error - Low Contact Pattern That Is Contacting More Toward Heel
G02760361Courtesy of FORD MOTOR CO.
