Item 6: Washer Reservoir Bolts Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air conditioning (A/C) accumulator to frame washer reservoir bolts.

Fig 1: Removing Air Conditioning (A/C) Accumulator
Courtesy of FORD MOTOR CO.
For vehicles with 4.6L engines, remove the A/C accumulator to bracket nut and position aside the accumulator.

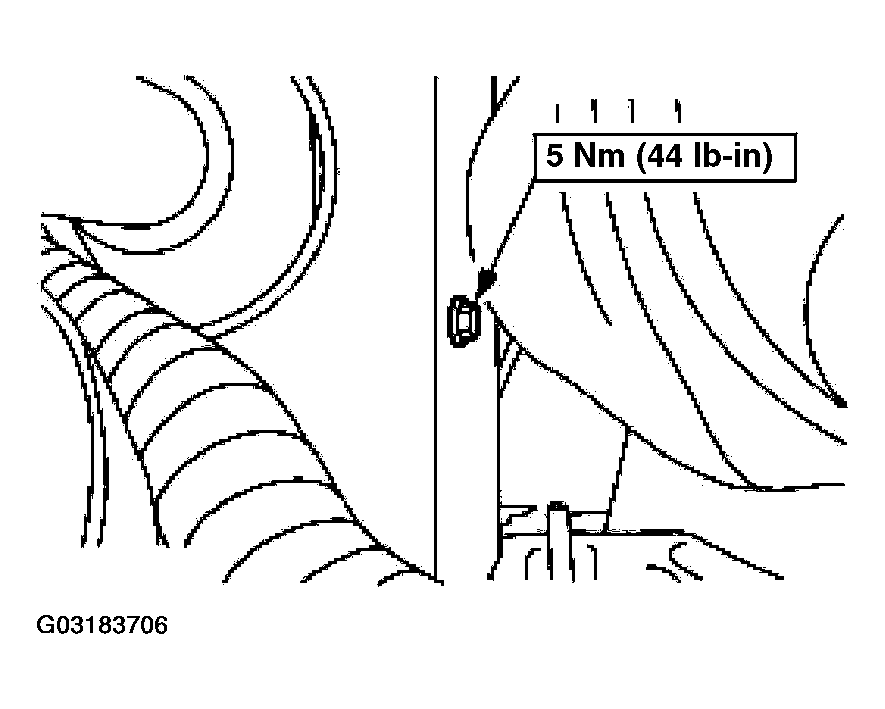

Fig 2: Removing A/C Accumulator To Bracket Nut
Courtesy of FORD MOTOR CO.
For vehicles with 4.0L engines, remove the radiator grille. For additional information, refer to RADIATOR GRILLE .
For vehicles with 4.0L engines, remove the three pin-type retainers.

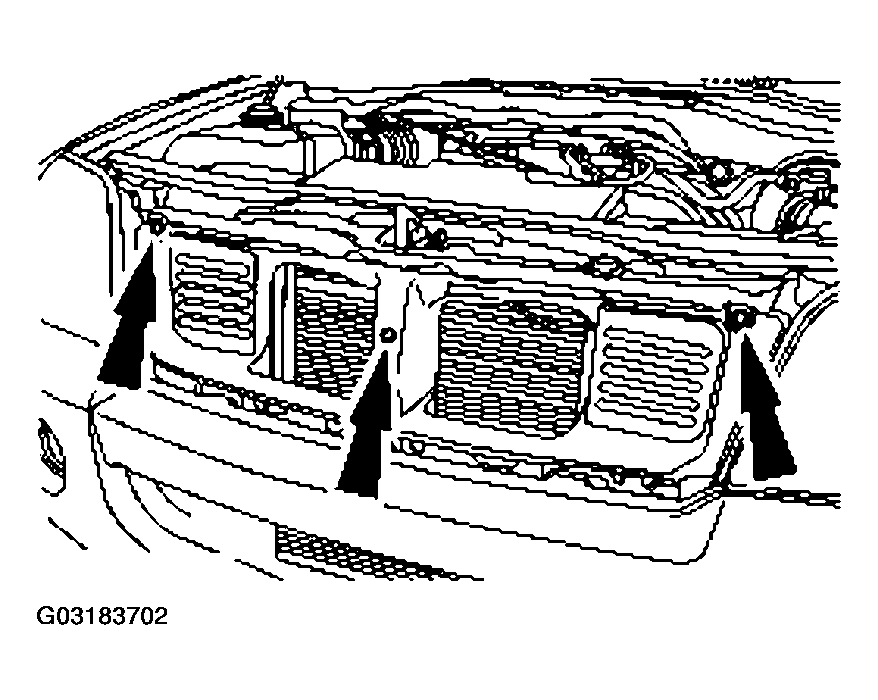

Fig 3: Removing Pin-Type Retainers
Courtesy of FORD MOTOR CO.
For vehicles with 4.0L engines, position the radiator air deflector forward.

Fig 4: Positioning Radiator Air Deflector Forward
Courtesy of FORD MOTOR CO.
For vehicles with 4.0L engines, remove the nut and position the accumulator aside.

Fig 5: remove nut and positioning accumulator aside
Courtesy of FORD MOTOR CO.
Remove the top bolt.

Fig 6: Removing Top Bolt
Courtesy of FORD MOTOR CO.
Remove the side bolt.

Fig 7: Removing side bolt
Courtesy of FORD MOTOR CO.
Remove the bolt and the reservoir.

Fig 8: Removing Bolt And Reservoir
Courtesy of FORD MOTOR CO.
