Rear Window Wiper: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    PART REMOVAL STEPS

    Part Steps
    Rear Window Wiper Pivot Arm 1-2
    Rear Window Wiper Motor Assembly 1-9

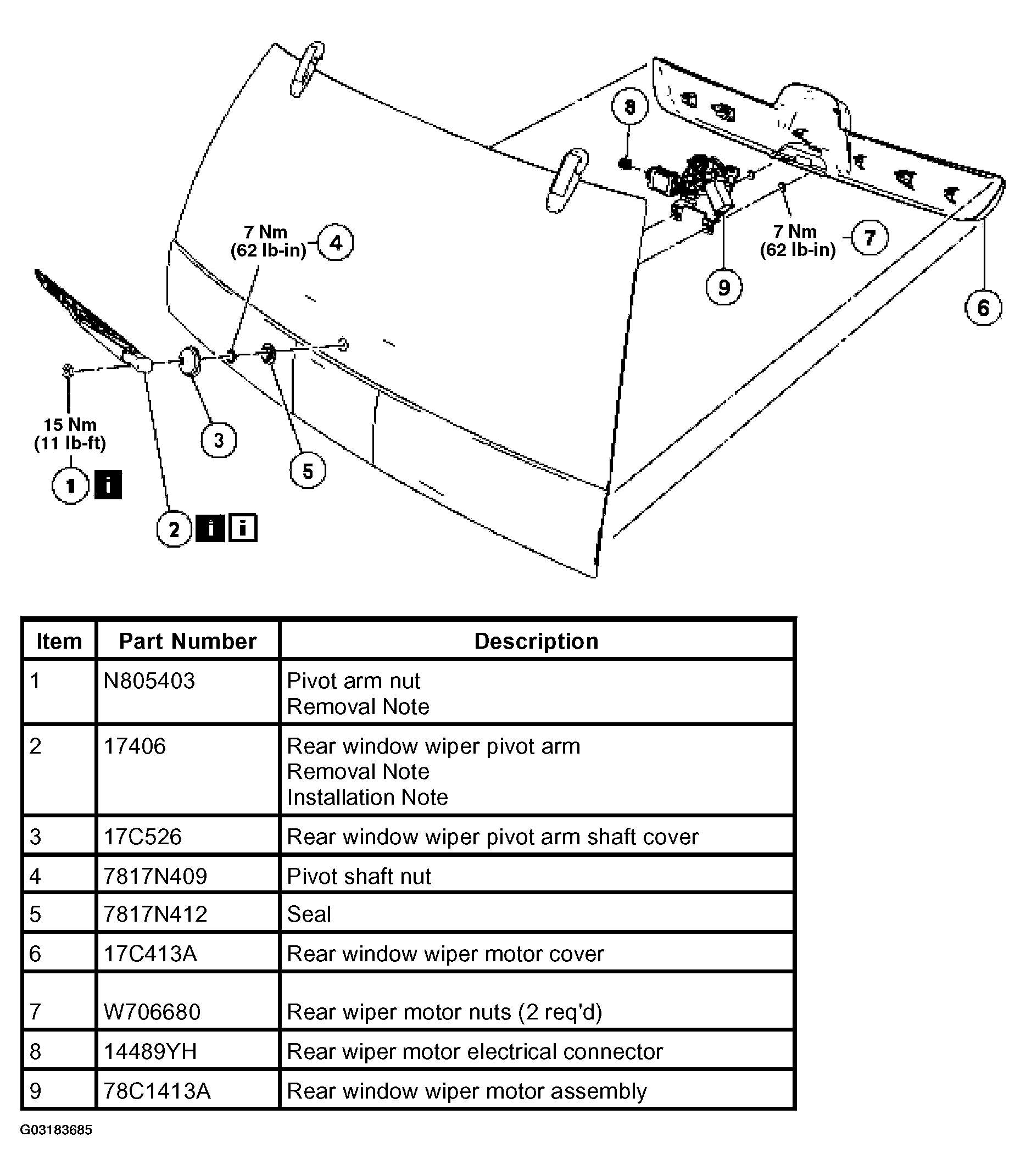

    Fig 1: Removing Rear Window Wiper Parts
    G03183685Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
