Rear Quarter Window Glass: Notes
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIALS SPECIFICATION CHART
| Item | Specification |
|---|---|
| Urethane Metal Primer Essex U-413 | WSB-M2G234-C |
| Urethane Glass Prep Essex U-401 | WSB-M5B280-C |
| Urethane Glass Primer Essex U-402 | WSB-M2G314-B |
| Urethane Adhesive Essex 400-HV | WSB-M2G316-B |
WARNING:
To prevent glass splinters from entering the eyes or cutting hands, wear safety glasses and heavy gloves when cutting the glass from the vehicle. Failure to follow these instructions may result in personal injury.
- Remove the rear quarter trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
- Remove the pin-type retainer and third row garment hooks.
- Lower headliner.

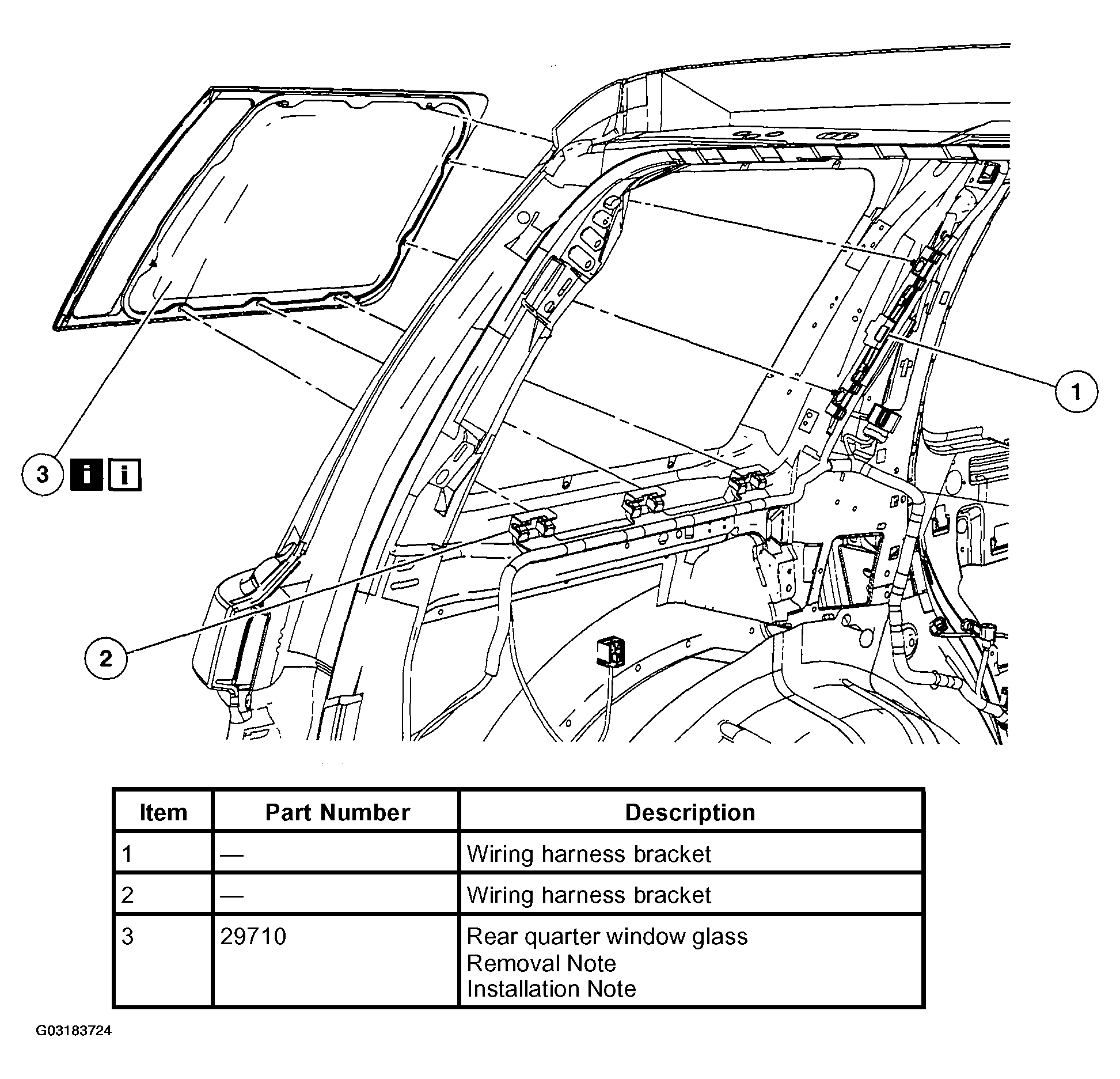

- Remove the parts in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
