Removal And Installation: Mouldings: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Explorer shown, Mountaineer similar

NOTE: RH side shown, LH side similar.

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

PART REMOVAL STEPS

Part	Steps
Front Fender Moulding	1-2
Front Door Moulding	3
Rear Door Moulding	4-5
Rear Quarter Trim Moulding	6-7

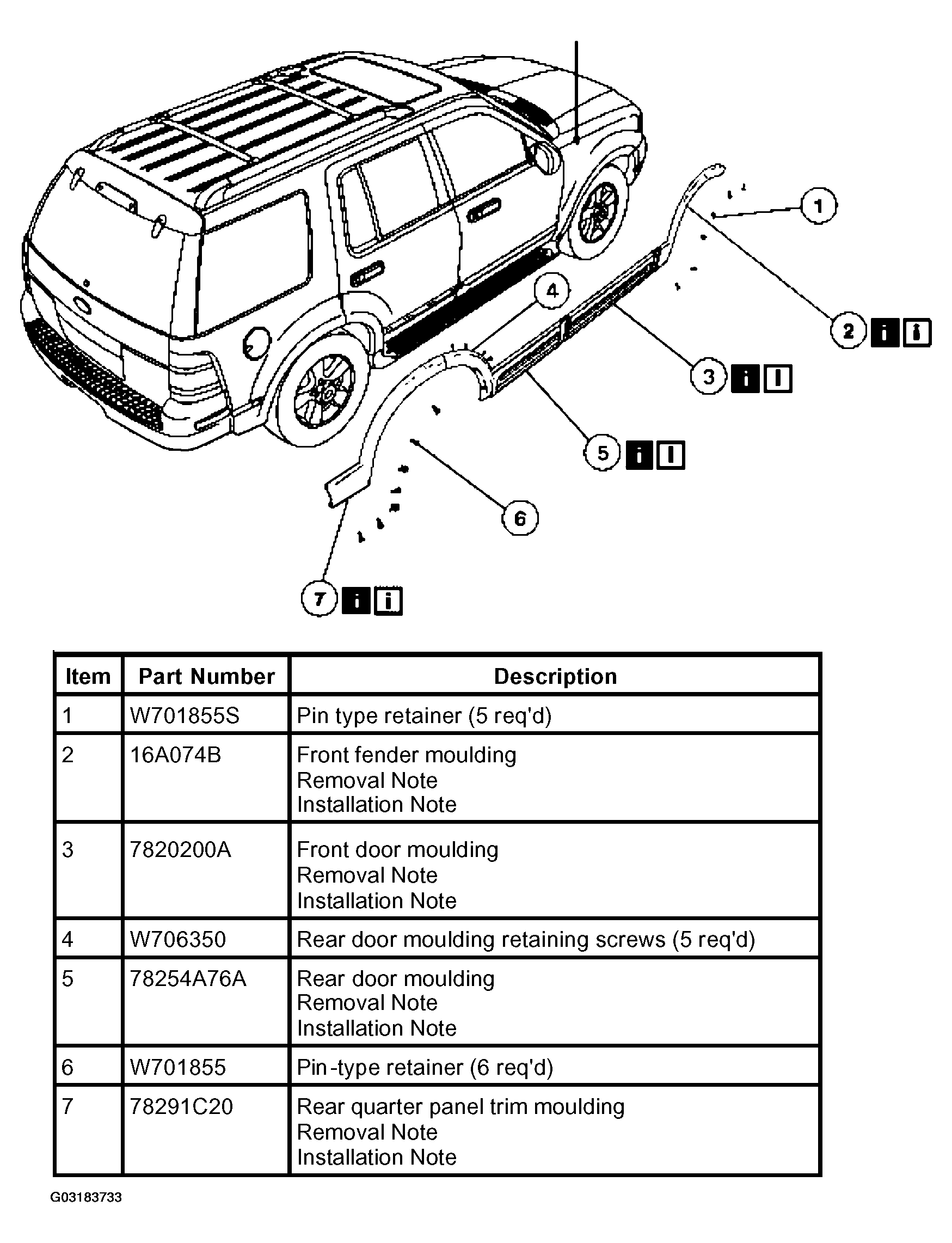

Fig 1: Removing Mouldings

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
