Liftgate Window Glass: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION CHART

Item	Specification
Threadlock 262 E2FZ-19554-B	WSK-M2G351-A6

If installing a new liftgate window glass, remove the rear wiper motor. For additional information, refer to REAR WINDOW WIPER .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

PART REMOVAL STEPS

Part	Steps
Liftgate window glass hinges	1, 3-4, 6-7
Liftgate window glass	1-5

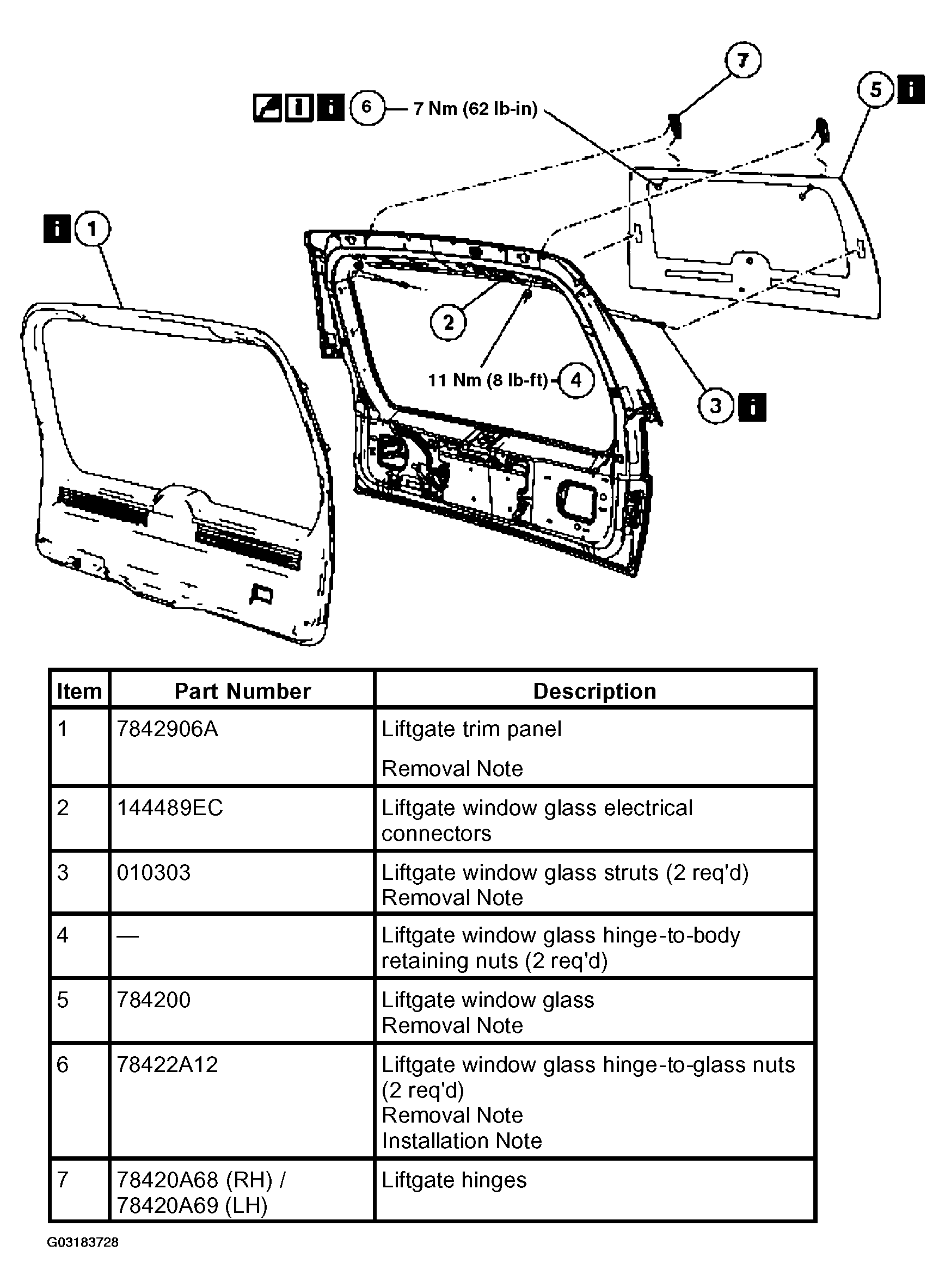

Fig 1: Removing Liftgate Window Glass Part

Courtesy of FORD MOTOR CO.

NOTE: Transfer components as necessary.

To install, reverse the removal procedure.
