Front Bumper: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Mountaineer shown, Explorer similar
  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    PART REMOVAL STEPS

    Part Steps
    Front Bumper Cover 1-6,10
    Front Lower Valance Panel 7-9
    Front Bumper 1-6, 10-12

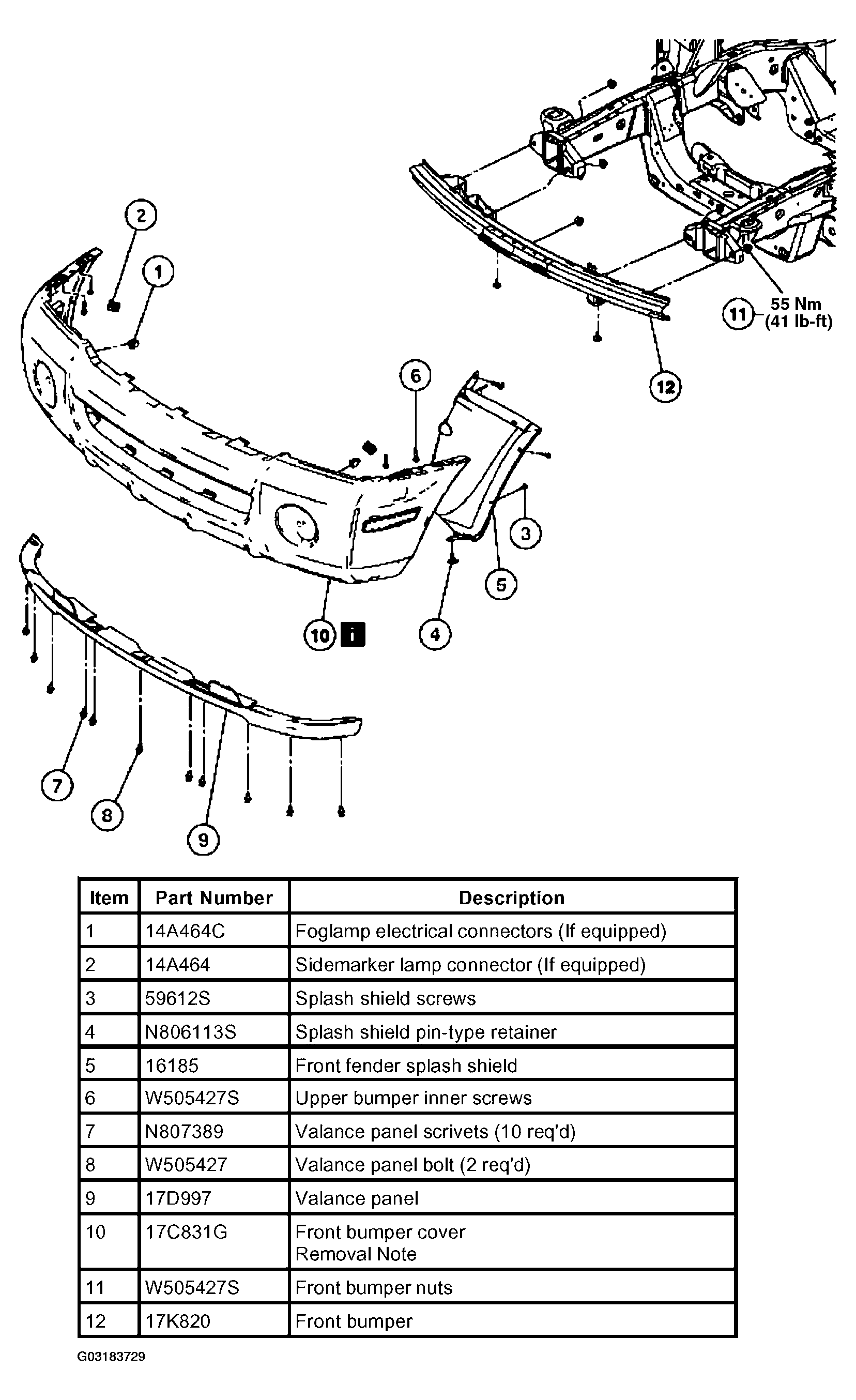

    Fig 1: Removing Front Bumper Part
    G03183729Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
