Auxiliary Heater Outlet and Inlet Line - Front

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Lubricate the coolant hoses with plain water only if needed.
  1. Position the vehicle on a hoist with the gear selector in NEUTRAL. For additional information, refer to JACKING & LIFTING .
  2. Drain the engine coolant. For additional information, refer to ENGINE COOLING .
  3. Remove the RH running board brackets. For additional information, refer to BODY SYSTEM - EXTERIOR .
  4. Remove the parts in the order indicated in the following illustration and table.

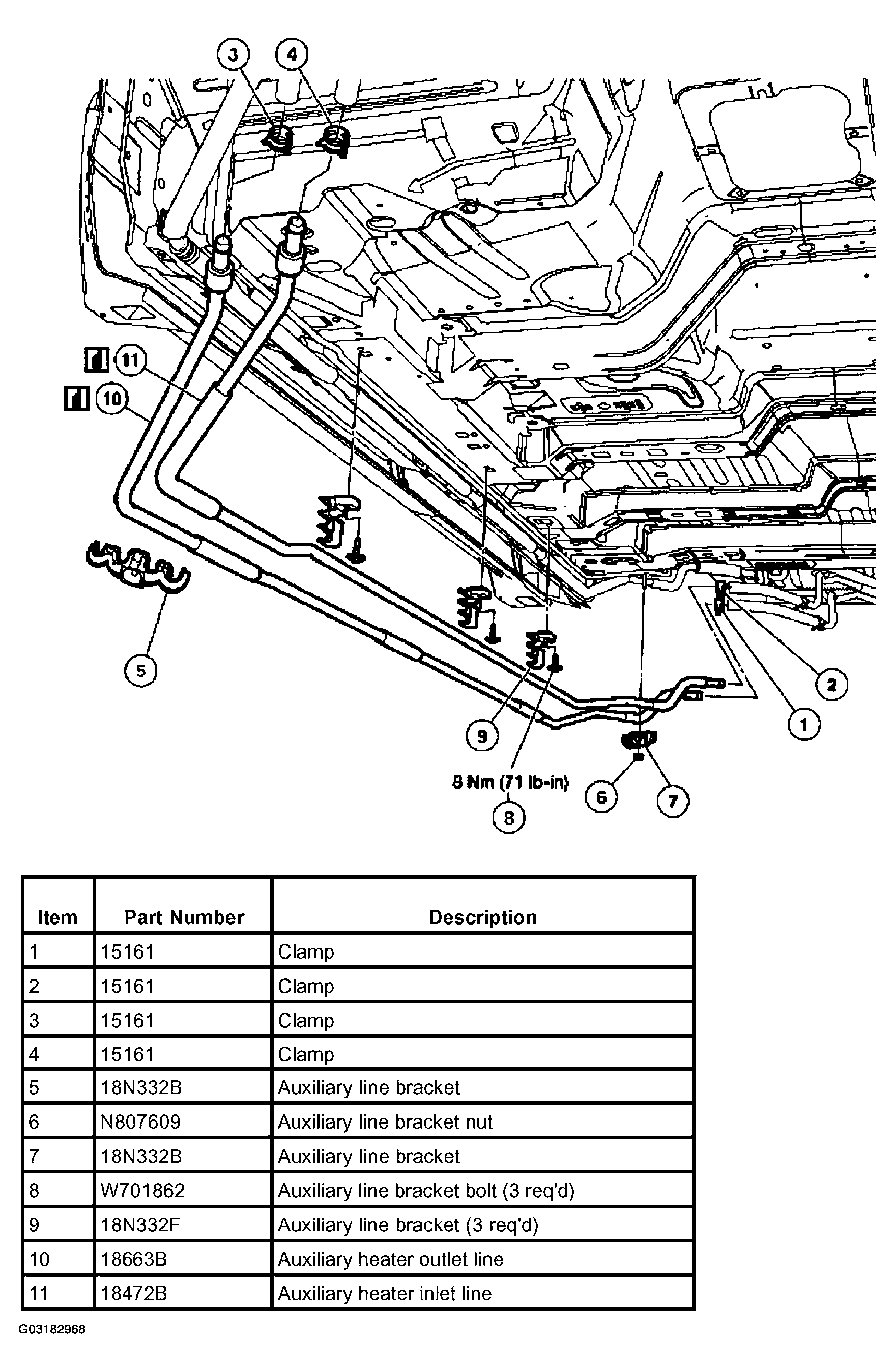

    Fig 1: Identifying Removal Sequence Of Auxiliary Heater Outlet And Inlet Line - Front
    G03182968Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
  6. Fill the engine coolant level. For additional information, refer to ENGINE COOLING .
