Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the LH inner fender well. For additional information, refer to BODY SYSTEM - EXTERIOR .
  3. To install, reverse the removal procedure.

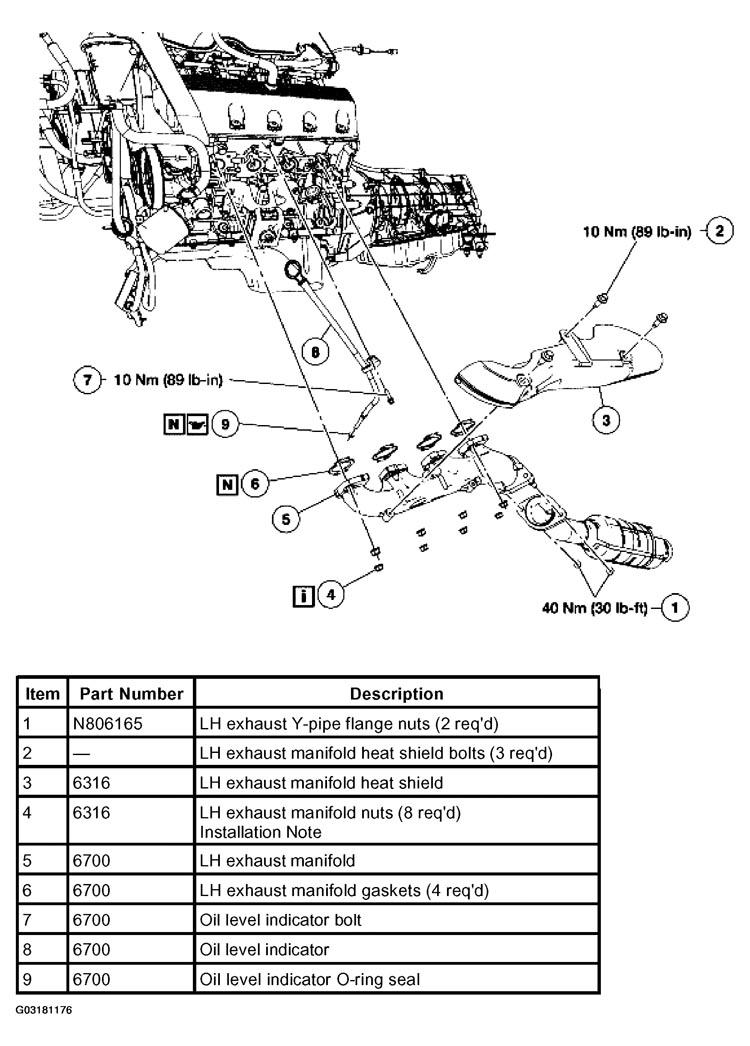

    Fig 1: Removing LH Exhaust Manifold And Oil Dipstick Tube
    G03181176Courtesy of FORD MOTOR CO.
  4. Install the LH inner fender well. For additional information, refer to BODY SYSTEM - EXTERIOR .
