Special Tool(s)

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

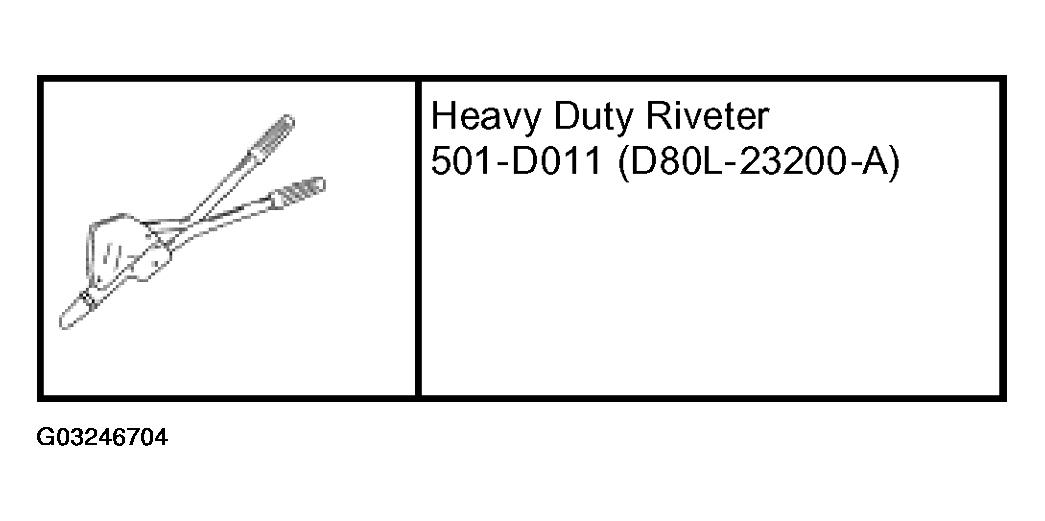

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, Refer to JACKING & LIFTING .
Remove the headlamps. For additional information, Refer to HEADLAMP ASSEMBLY .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

Part	Steps
Bumper cover	1-5
Bumper insulator	1-7
Bumper beam	1-9

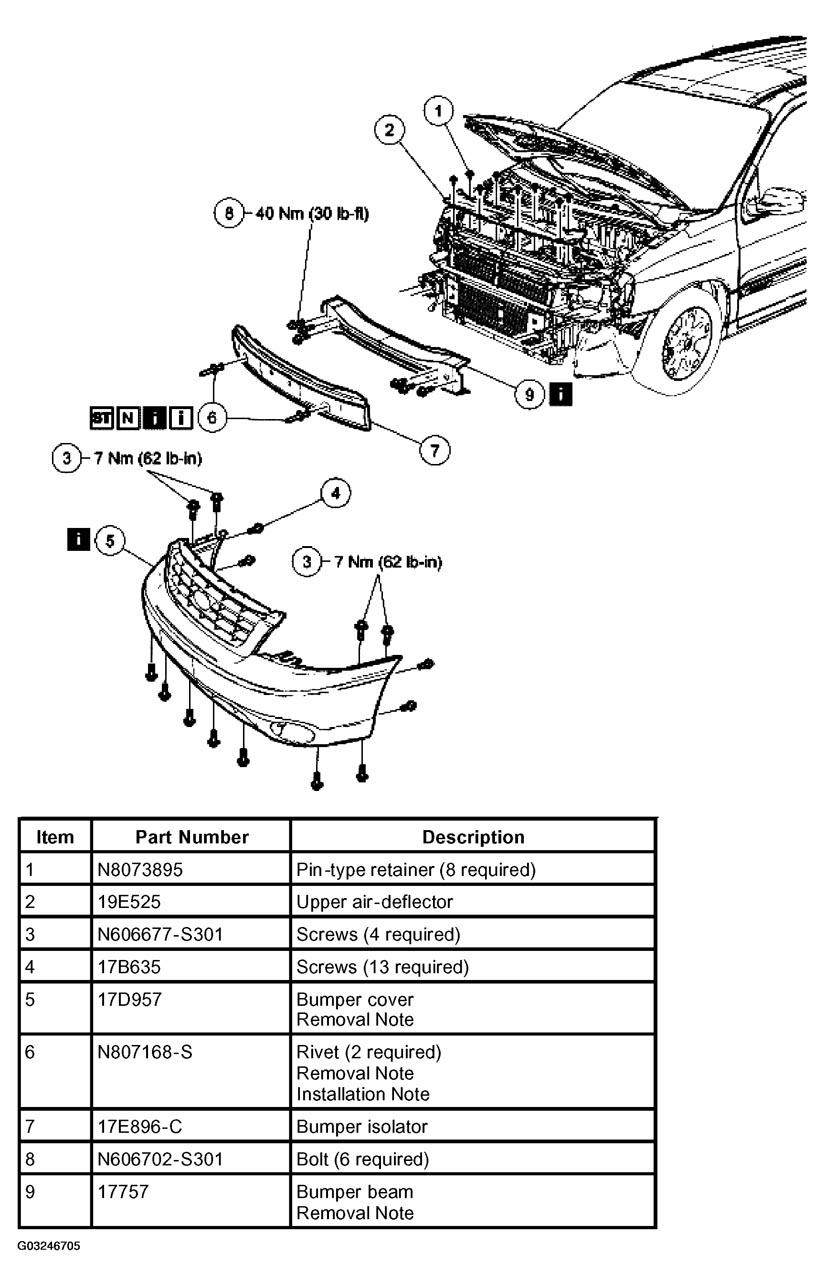

Fig 2: Removing Front Bumper

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
