Headlamp Assembly

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

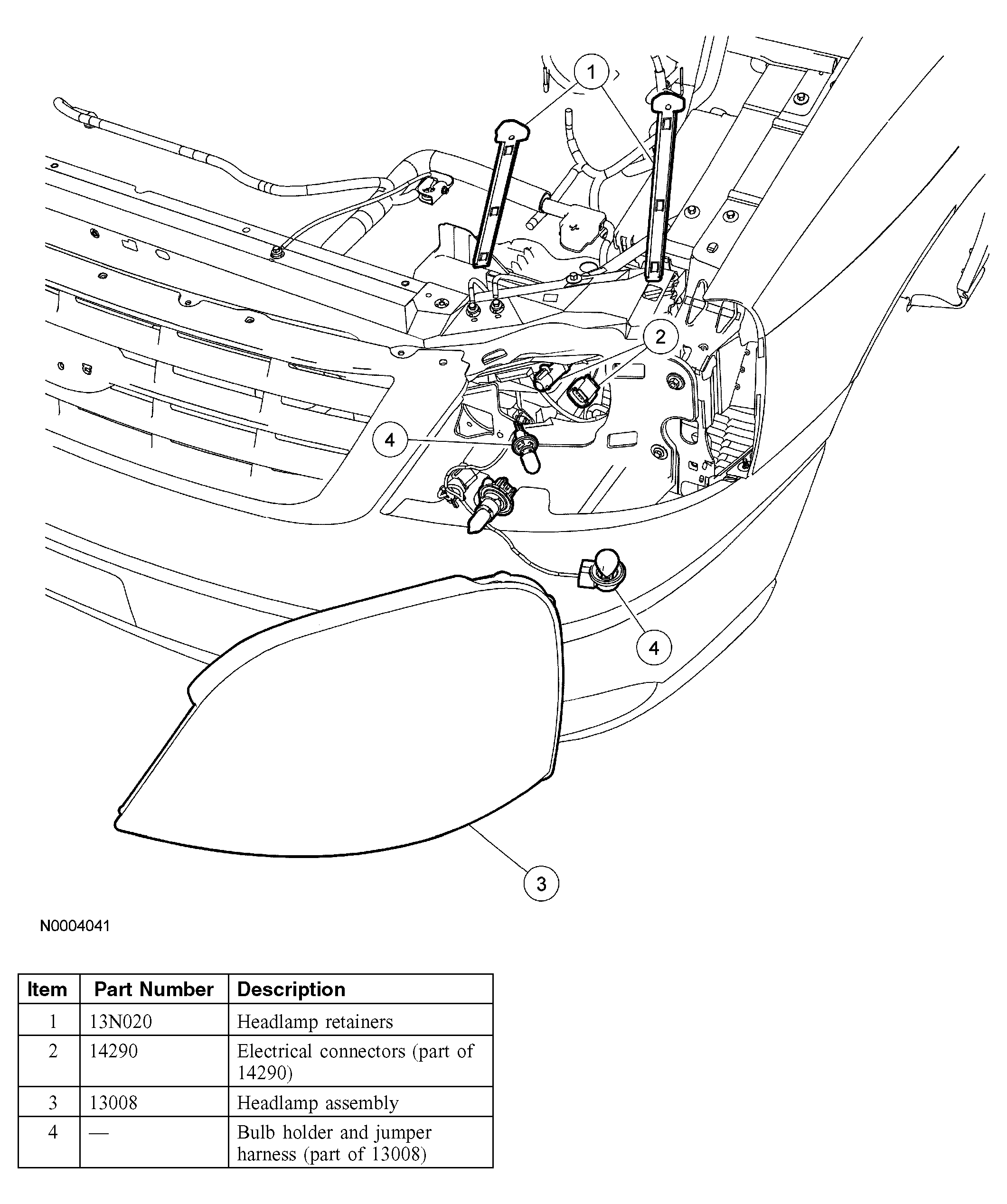

Fig 1: Identifying Headlamp Component Assembly

Courtesy of FORD MOTOR CO.

NOTE: Make sure the headlamp switch and ignition switch are in the OFF position.

Remove both headlamp retainers.
Disconnect the electrical connectors.
Remove the headlamp assembly.
Remove the bulb holders.
To install, reverse the removal procedure.
