Pinpoint Test L: The Hazard Lamps Are Inoperative

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. L1 CHECK THE TURN SIGNAL LAMP OPERATION
    • Key in ON position.
    • Place the multifunction switch in the RH and LH turn positions.
    • Do the turn signals operate correctly?
    1. Yes  : GO to L2.
    2. No  : Go To PINPOINT TEST I: THE TURN SIGNAL LAMPS ARE INOPERATIVE .
  2. L2 CHECK THE HAZARD LAMPS
    • Turn on the hazard lamps.
    • Are the lamps illuminated but not flashing?
    1. Yes  : GO to  L9.
    2. No  : GO to L3.
  3. L3 CHECK CIRCUIT 385 (WH/RD) FOR SHORT TO GROUND
    • Listen to the indicator flasher.
    • Is there a rapid clicking sound coming continuously from the indicator flasher?
    1. Yes  : REPAIR the circuit. TEST the system for normal operation.
    2. No  : GO to L4.
  4. L4 CHECK THE VOLTAGE TO THE INDICATOR FLASHER
    • Disconnect: Indicator Flasher C2047.
    • Measure the voltage between the indicator flasher C2047 pin 85, circuit 383 (RD/WH), harness side and ground.
      Fig 1: Checking Voltage To Indicator Flasher
      G03277201Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    1. Yes  : GO to L5.
    2. No  : GO to  L6.
  5. L5 CHECK CIRCUIT 385 (WH/RD) FOR AN OPEN
    • Disconnect: Multifunction Switch C202b.
    • Measure the resistance between the multifunction switch C202b pin 3, circuit 385 (WH/RD), harness side and the indicator flasher C2047 pin 87A, circuit 385 (WH/RD), harness side.
      Fig 2: Checking Circuit 385 (WH/RD) For An Open
      G03277202Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    1. Yes  : GO to L7.
    2. No  : REPAIR the circuit. TEST the system for normal operation.
  6. L6 CHECK CIRCUIT 383 (RD/WH) FOR AN OPEN
    • Disconnect: SJB C2280b.
    • Key in ON position.
    • Measure the resistance between the indicator flasher C2047 pin 85, circuit 383 (RD/WH), harness side and the SJB C2280b pin 21, circuit 383 (RD/WH), harness side.
      Fig 3: Checking Circuit 383 (RD/WH) For An Open
      G03277203Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    1. Yes  : GO to  L8.
    2. No  : REPAIR the circuit. TEST the system for normal operation.
  7. L7 CHECK THE MULTIFUNCTION SWITCH
    • Carry out the multifunction switch component test for the turn lamps.

      Refer to the appropriate SYSTEM WIRING DIAGRAMS for schematic and connector information.

    • Is the multifunction switch OK?
    1. Yes  : INSTALL a new indicator flasher. TEST the system for normal operation.
    2. No  : INSTALL a new multifunction switch. REFER to STEERING COLUMN SWITCHES . TEST the system for normal operation.
  8. L8 CHECK FOR CORRECT SJB OPERATION
    • Key in OFF position.
    • Disconnect all SJB connectors.
    • Check for:
      • Corrosion
      • Pushed-out pins
    • Connect all SJB connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
    1. Yes  : INSTALL a new SJB. REFER to MULTIFUNCTION ELECTRONIC CONTROL MODULES . TEST the system for normal operation.
    2. No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector.
  9. L9 CHECK THE MULTIFUNCTION SWITCH FOR A SHORT TO POWER
    • Carry out the multifunction switch component.

      Refer to the appropriate SYSTEM WIRING DIAGRAMS for schematic and connector information.

    • Is the multifunction switch OK?
    1. Yes  : GO to L10.
    2. No  : INSTALL a new multifunction switch. REFER to STEERING COLUMN SWITCHES . TEST the system for normal operation.
  10. L10 CHECK THE CIRCUIT 385 (WH/RD) FOR A SHORT TO POWER
    • Disconnect: Indicator Flasher C2047.
    • Measure the voltage between the indicator flasher C2047 pin 30, circuit 385 (WH/RD), harness side and ground

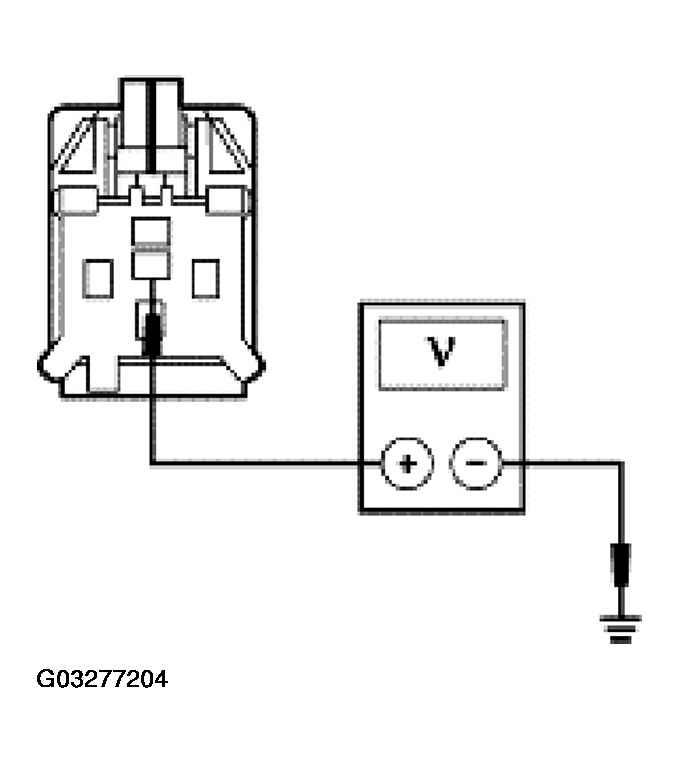

      Fig 4: Checking Circuit 385 (WH/RD) For A Short To Power
      G03277204Courtesy of FORD MOTOR CO.
    • Is any voltage present?
    1. Yes  : REPAIR the circuit. TEST the system for normal operation.
    2. No  : INSTALL a new indicator flasher. TEST the system for normal operation.
