Pinpoint Test V: DTC B2729 - Cushion Over-Temp Detected/DTC B2730 - Back Over-Temp Detected/DTC B2731 - Differential Temperature Fault - Driver Seat: Overview

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The presence of over-temp faults (DTCs B2729 and B2730) can be induced by incorrect operation of the climate controlled seat system after an initial HEAT setting has been attained. If a HEAT setting is repeatedly turned OFF and ON in an attempt to increase the seat temperature, an over-temp condition can result and the DTC(s) will be set.
NOTE: A condition may exist where one or both climate controlled seats turn OFF shortly after initialization with DTC B2729 (Cushion Over-Temp Detected) and/or DTC B2731 (Differential Temperature Fault) being present in the climate controlled seat module (CCSM). If this condition is present, check for airflow restrictions due to seat cushion crush or seat cushion duct damage. A cushion duct modification may be required. Proceed with the diagnostic procedure and repair as needed. For additional information, refer to FRONT SEAT CUSHION - DRIVER,  or Front Seat Cushion - Passenger.
  1. V1 CHECK THE SEAT CUSHION TED EXHAUST NOZZLE FOR WASTE AIRFLOW
    WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
    NOTE: If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the air bag system must be depowered. Refer to AIR BAG RESTRAINT SYSTEMS .
    NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
    NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
    • Key in OFF position.
    • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of AIR BAG RESTRAINT SYSTEMS .
    • Disconnect: Driver Seat Side Air Bag Module C316.
    • Connect: Restraint System Diagnostic Tool 418-133 or 501-097 to Driver Seat Side Air Bag Module C316.
    • Connect: Battery Ground Cable.
      • WARNING: Be sure that nobody is in the vehicle and that there is nothing blocking or set in front of any air bag module when the battery ground cable is connected.
    • Key in ON position.
    • Set both front seats to LOW COOL (one LED illuminated) at the dual automatic temperature control (DATC) module.
    • Check for air exhausting from the seat cushion TED exhaust nozzle and compare it to the air exhausting from the opposite seat.
    • Is air exhausting from the seat cushion TED exhaust nozzle comparable to the air exhausting from the opposite seat?
    1. Yes  : GO to  V4.
    2. No  : GO to V2.
  2. V2 INSPECT THE SEAT CUSHION DUCTS
    • Key in OFF position.
    • Inspect the seat cushion ducts for damaged, restricted, or disconnected ducts.
    • Are any duct(s) damaged, restricted, or disconnected?
    1. Yes  : REPAIR or INSTALL new duct(s) as needed. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
    2. No  : GO to V3.
  3. V3 INSPECT THE SEAT CUSHION TED FOR CORRECT INSTALLATION
    • Key in OFF position.
    • Inspect the TED for correct installation to the seat cushion and climate controlled seat cushion duct.
    • Is the seat cushion TED correctly installed?
    1. Yes  : REMOVE the seat and the seat cushion trim cover. INSPECT for a worn, damaged, or incorrectly installed climate controlled seat cushion duct, cushion foam, or seat cushion trim cover. INSPECT for collapsed airflow channels in the seat cushion foam. REPAIR or INSTALL a new climate controlled seat cushion duct, seat cushion foam, or seat cushion trim cover as needed. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
    2. No  : INSTALL the seat cushion TED correctly. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  4. V4 CHECK THE SEAT BACKREST TED EXHAUST NOZZLE FOR WASTE AIRFLOW
    • Set both front seats to LOW COOL (one LED illuminated) at the dual automatic temperature control (DATC) module.
    • Check for air exhausting from the seat backrest TED exhaust nozzle and compare it to the air exhausting from the opposite seat.
    • Is air exhausting from the seat backrest TED exhaust nozzle comparable to the air exhausting from the opposite seat?
    1. Yes  : GO to  V7.
    2. No  : GO to V5.
  5. V5 INSPECT THE SEAT BACKREST DUCTS
    • Inspect the seat backrest ducts for damaged, restricted, or disconnected ducts.
    • Are any duct(s) damaged, restricted, or disconnected?
    1. Yes  : REPAIR or INSTALL new duct(s) as needed. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
    2. No  : GO to V6.
  6. V6 INSPECT THE SEAT BACKREST TED FOR CORRECT INSTALLATION
    • Key in OFF position.
    • Inspect the TED for correct installation to the seat cushion.
    • Is the seat backrest TED correctly installed?
    1. Yes  : REMOVE the seat and the seat backrest trim cover. INSPECT for a worn, damaged, or incorrectly installed foam wedge, backrest foam, or seat backrest trim cover. INSPECT for collapsed airflow channels in the seat backrest foam. REPAIR or INSTALL a new foam wedge, seat backrest foam, or seat backrest trim cover as needed. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
    2. No  : INSTALL the seat backrest TED correctly. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  7. V7 CHECK THE SEAT CUSHION AND SEAT BACKREST TEMPERATURE PIDS
    • Enter the following diagnostic mode on the diagnostic tool: CCSM Active Command Menu TED HEAT MODE.
      • NOTE: After the active command TED HEAT is commanded to the ON state, the climate controlled seat TED will operate for 15 seconds then turn off.
    • NOTE: The CCSM is not the source of the fault if the active command mode is operational.
    • Monitor PIDs CSHTEMP and BK_TEMP while commanding the TED HEAT active command ON.
    • Is either PID greater than 185°F (85°C)?
    1. Yes  : If PID CSHTEMP is greater than 185°F (85°C), GO to V8.

      If PID BK_TEMP is greater than 185°F (85°C), GO to  V17.

    2. No  : GO to  V12.
  8. V8 CHECK THE SEAT CUSHION TED TEMPERATURE SENSOR CIRCUITS 8-HC23 (WH/BK) AND 9-HC23 (BN/YE) FOR A SHORT TO VOLTAGE
    • Key in OFF position.
    • Disconnect: Driver Seat Cushion TED C3035.
    • Disconnect: Driver CCSM C3031b.
    • Key in ON position.
    • Measure the voltage between driver seat cushion TED C3035-3, circuit 8-HC23 (WH/BK), harness side and ground; and between driver seat cushion TED C3035-2, circuit 9-HC23 (BN/YE), harness side and ground.
      Fig 1: Measuring Voltage Between Driver Seat Cushion TED C3035-3, Circuit 8-HC23 (WH/BK), Harness Side And Ground
      G03203814Courtesy of FORD MOTOR CO.
    • Are the voltages less than 0.2 volt?
    1. Yes  : GO to V9.
    2. No  : REPAIR the affected circuits. CLEAR the DTCs. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  9. V9 CHECK THE SEAT CUSHION TED TEMPERATURE SENSOR CIRCUITS 8-HC23 (WH/BK) AND 9-HC23 (BN/YE) FOR A SHORT TO GROUND
    • Key in OFF position.
    • Measure the resistance between driver seat cushion TED C3035-3, circuit 8-HC23 (WH/BK), harness side and ground; and between driver seat cushion TED C3035-2, circuit 9-HC23 (BN/YE), harness side and ground.

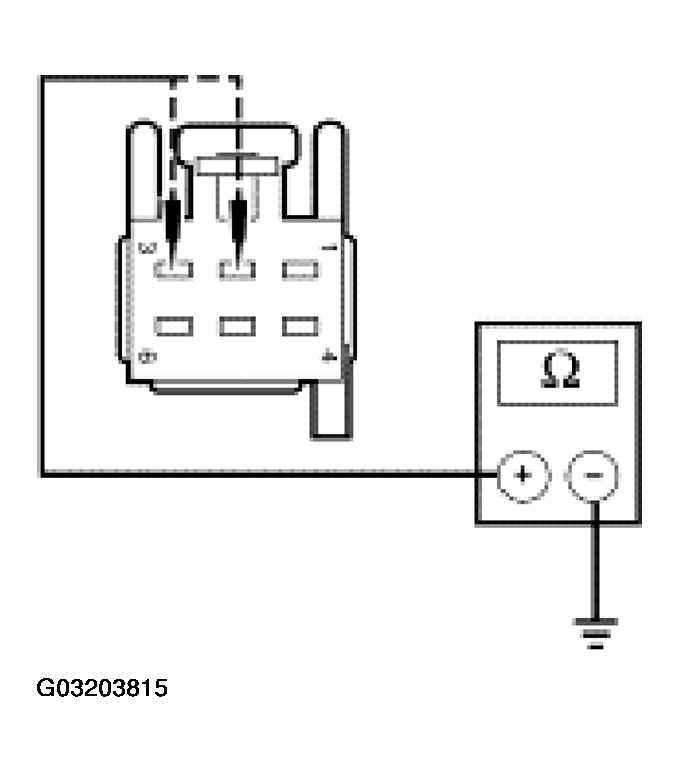

      Fig 2: Measuring Resistance Between Driver Seat Cushion TED C3035-3, Circuit 8-HC23 (WH/BK), Harness Side And Ground
      G03203815Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?
    1. Yes  : GO to V10.
    2. No  : REPAIR the affected circuit(s). CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  10. V10 CHECK THE SEAT CUSHION TED TEMPERATURE SENSOR CIRCUITS 8-HC23 (WH/BK) AND 9-HC23 (BN/YE) FOR AN OPEN
    • Measure the resistance between driver seat cushion TED C3035-3, circuit 8-HC23 (WH/BK), harness side and driver CCSM C3031b-18, circuit 8-HC23 (WH/BK), harness side; and between driver seat cushion TED C3035-2, circuit 9-HC23 (BN/YE), harness side and driver CCSM C3031b-17, circuit 9-HC23 (BN/YE), harness side.

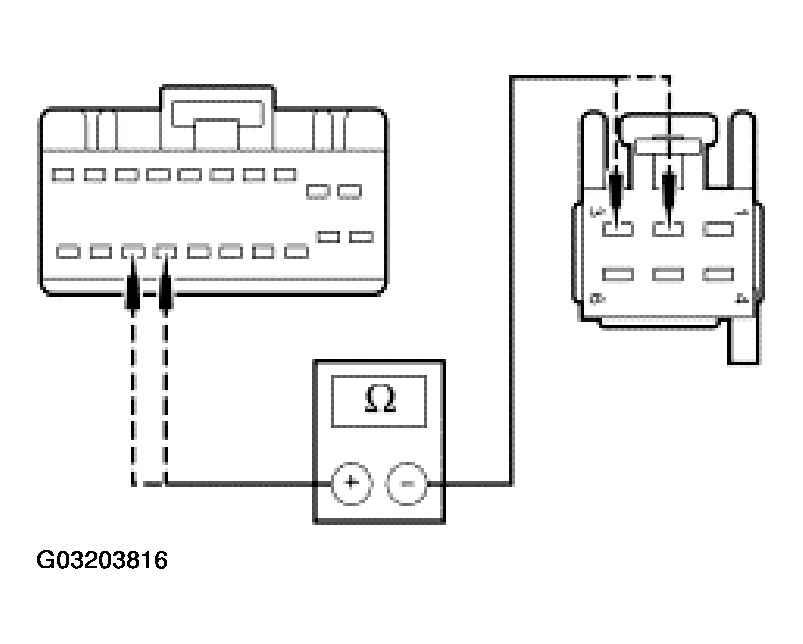

      Fig 3: Measuring Resistance Between Driver Seat Cushion TED C3035-3, Circuit 8-HC23 (WH/BK), Harness Side
      G03203816Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    1. Yes  : GO to V11.
    2. No  : REPAIR the affected circuit. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  11. V11 CHECK THE SEAT CUSHION TEMPERATURE SENSOR
    • Measure the resistance between the seat cushion TED pin 3 and pin 2, component side.

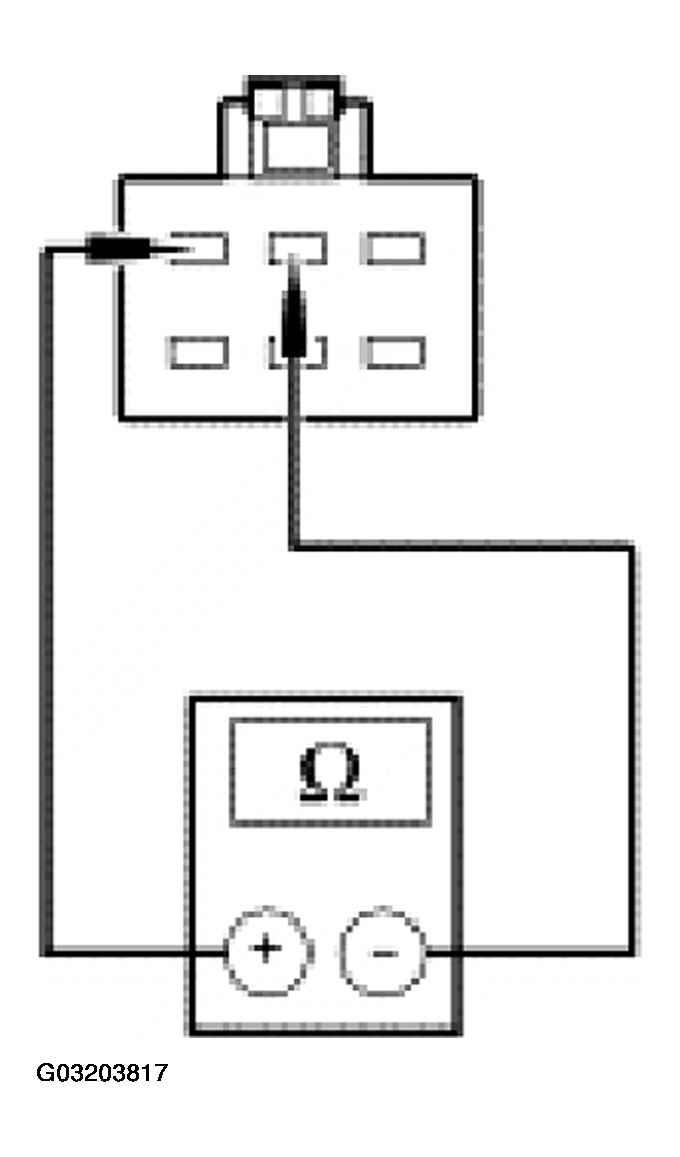

      Fig 4: Measuring Resistance Between Seat Cushion TED Pin 3 And Pin 2, Component Side
      G03203817Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 1,000 ohms?
    1. Yes  : INSTALL a new CCSM. CONFIGURE the CCSM. REFER to MODULE COMMUNICATIONS NETWORK - LS . CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
    2. No  : INSTALL a new seat cushion TED. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  12. V12 CHECK THE SEAT CUSHION AND SEAT BACKREST TEMPERATURE PIDS
    • Enter the following diagnostic mode on the diagnostic tool: CCSM Active Command Menu TED HEAT MODE.
      • NOTE: After the active command TED HEAT is commanded to the ON state, the climate controlled seat TED will operate for 15 seconds then turn off.
    • NOTE: The CCSM is not the source of the fault if the active command mode is operational.
    • Monitor PIDs CSHTEMP and BK_TEMP while commanding the TED HEAT active command ON.
    • Did the PID values change?
    1. Yes  : REPAIR the climate controlled seat for airflow leaks. INSPECT the fan, TEDs, ducts, foam wedges, foam pads, trim covers and their connection points and REPAIR as needed. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
    2. No  : If PID CSHTEMP does not change, GO to V13.

      If PID BK_TEMP does not change, GO to  V21.

  13. V13 CHECK THE SEAT CUSHION TED HEATING ELEMENT CIRCUITS 31S-HC17 (BK/OG) AND 20S-HC17 (PK) FOR A SHORT TO VOLTAGE
    • Key in OFF position.
    • Disconnect: Driver Seat Cushion TED C3035.
    • Disconnect: Driver CCSM C3031b.
    • Key in ON position.
    • Measure the voltage between driver seat cushion TED C3035-4, circuit 31S-HC17 (BK/OG), harness side and ground; and between driver seat cushion TED C3035-6, circuit 20S-HC17 (PK), harness side and ground.
      Fig 5: Measuring Voltage Between Driver Seat Cushion TED C3035-4, Circuit 31S-HC17 (BK/OG), Harness Side And Ground
      G03203818Courtesy of FORD MOTOR CO.
    • Are the voltages less than 0.2 volt?
    1. Yes  GO to V14.
    2. No  : REPAIR the affected circuits. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  14. V14 CHECK THE SEAT CUSHION TED HEATING ELEMENT CIRCUITS 31S-HC17 (BK/OG) AND 20S-HC17 (PK) FOR A SHORT TO GROUND
    • Key in OFF position.
    • Measure the resistance between driver seat cushion TED C3035-4, circuit 31S-HC17 (BK/OG), harness side and ground; and between driver seat cushion TED C3035-6, circuit 20S-HC17 (PK), harness side and ground.

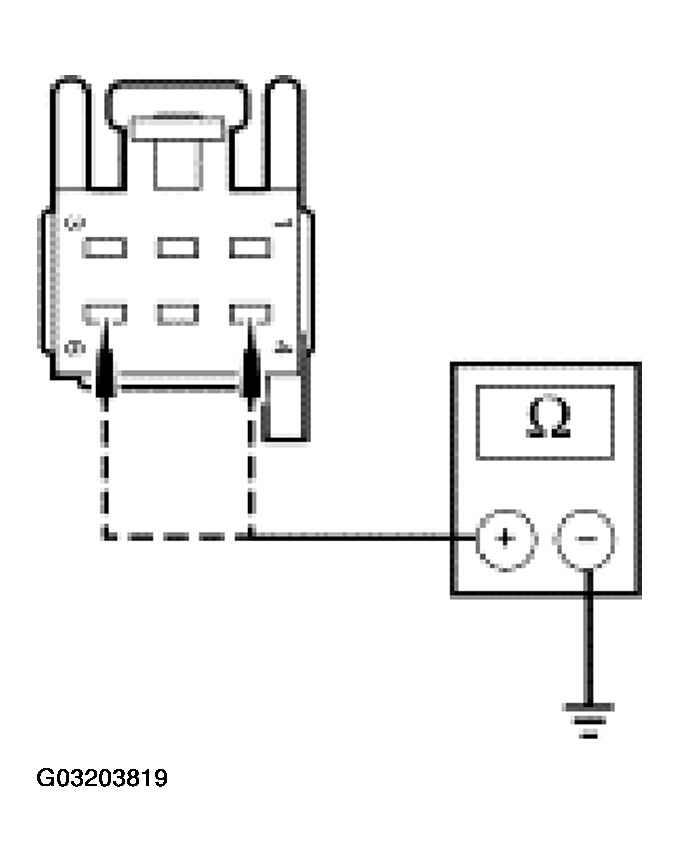

      Fig 6: Measuring Resistance Between Driver Seat Cushion TED C3035-4, Circuit 31S-HC17 (BK/OG), Harness Side And Ground
      G03203819Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    1. Yes  : GO to V15.
    2. No  : REPAIR the affected circuit(s). CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  15. V15 CHECK THE SEAT CUSHION TED HEATING ELEMENT CIRCUITS 31S-HC17 (BK/OG) AND 20S-HC17 (PK) FOR AN OPEN
    • Measure the resistance between driver seat cushion TED C3035-4, circuit 31S-HC17 (BK/OG), harness side and driver CCSM C3031b-2, circuit 31S-HC17 (BK/OG), harness side; and between driver seat cushion TED C3035-6, circuit 20S-HC17 (PK), harness side and driver CCSM C3031b-1, circuit 20S-HC17 (PK), harness side.

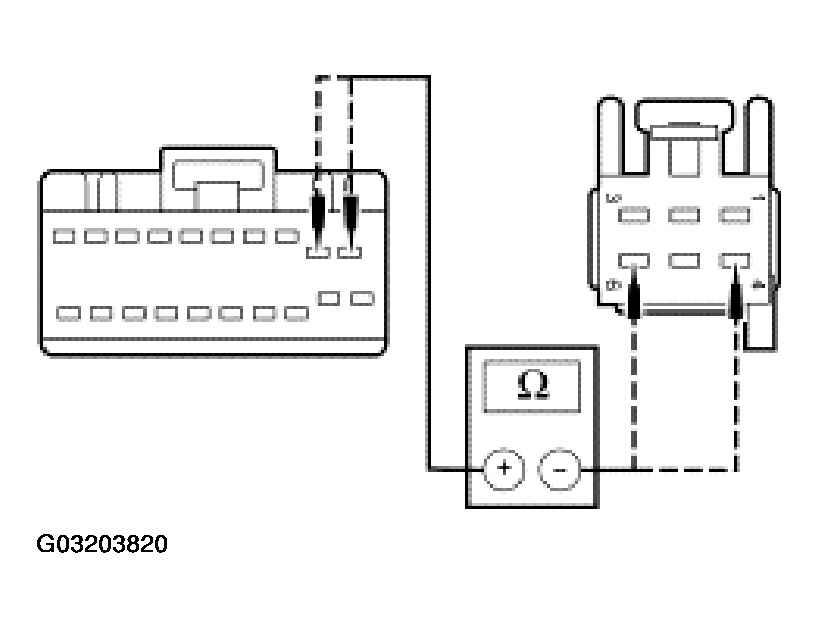

      Fig 7: Measuring Resistance Between Driver Seat Cushion TED C3035-4, Circuit 31S-HC17 (BK/OG), Harness Side
      G03203820Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    1. Yes  : GO to V16.
    2. No  : REPAIR the affected circuit. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  16. V16 CHECK THE SEAT CUSHION TED
    • Measure the resistance between the seat cushion TED pin 4 and pin 6, component side.

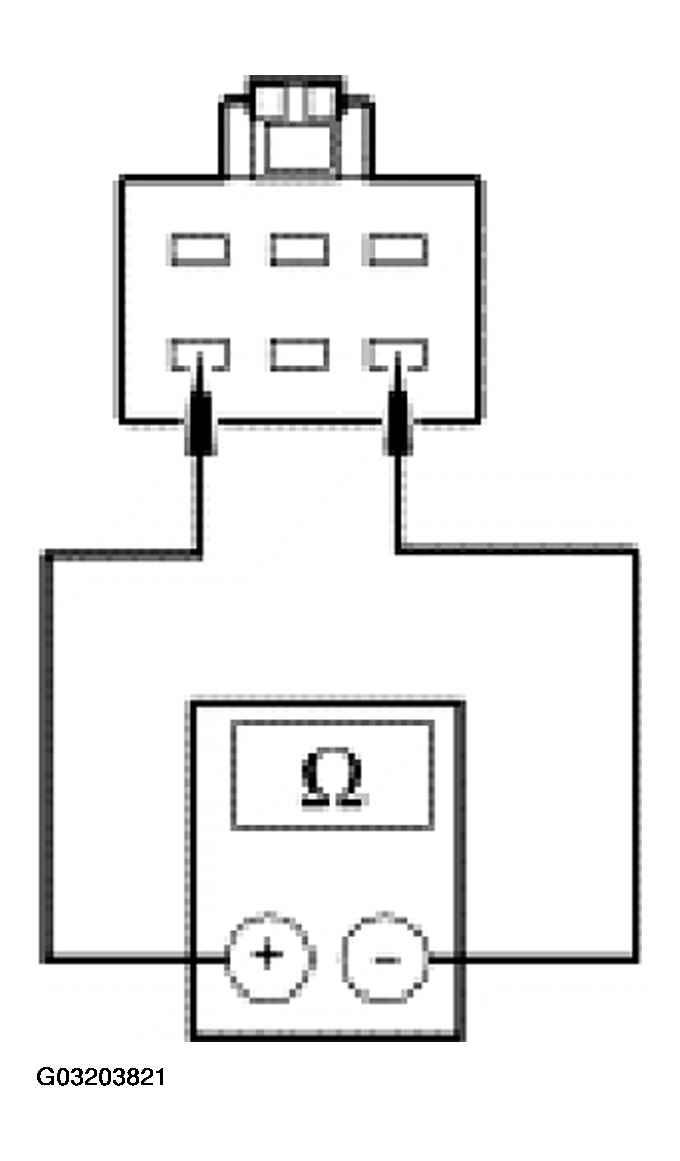

      Fig 8: Measuring Resistance Between Seat Cushion TED Pin 4 And Pin 6, Component Side
      G03203821Courtesy of FORD MOTOR CO.
    • Is the resistance between 0.5 and 7 ohms?
    1. Yes  : INSTALL a new CCSM. CONFIGURE the CCSM. REFER to MODULE COMMUNICATIONS NETWORK - LS . CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
    2. No  : INSTALL a new seat cushion TED. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  17. V17 CHECK THE SEAT BACKREST TED TEMPERATURE SENSOR CIRCUITS 8-HC16 (WH/RD) AND 9-HC16 (BN/RD) FOR A SHORT TO VOLTAGE
    • Key in OFF position.
    • Disconnect: Driver Seat Backrest TED C3034.
    • Disconnect: Driver CCSM C3031b.
    • Key in ON position.
    • Measure the voltage between driver seat backrest TED C3034-3, circuit 8-HC16 (WH/RD), harness side and ground; and between driver seat backrest TED C3034-2, circuit 9-HC16 (BN/RD), harness side and ground.

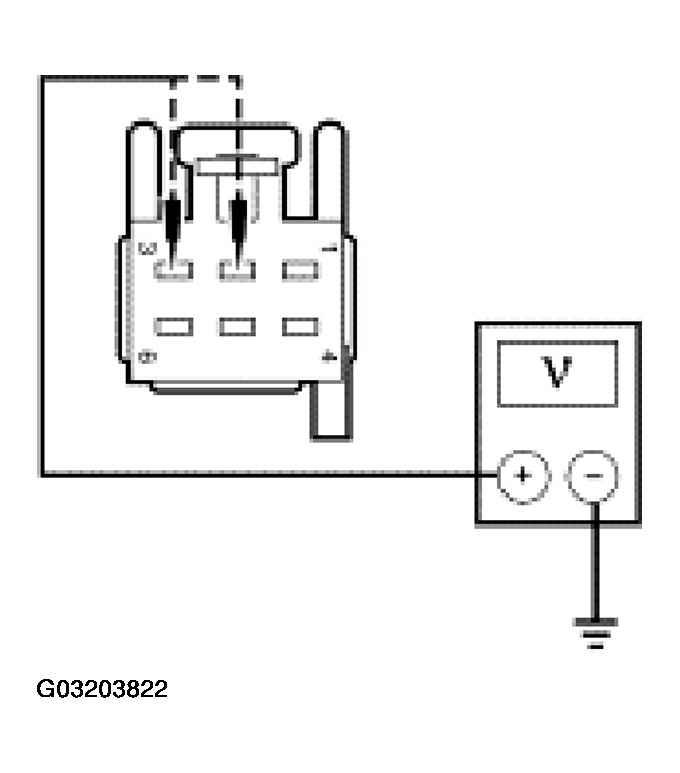

      Fig 9: Measuring Voltage Between Driver Seat Backrest TED C3034-3, Circuit 8-HC16 (WH/RD), Harness Side And Ground
      G03203822Courtesy of FORD MOTOR CO.
    • Are the voltages less than 0.2 volt?
    1. Yes  : GO to V18.
    2. No  : REPAIR the affected circuits. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  18. V18 CHECK THE SEAT BACKREST TED TEMPERATURE SENSOR CIRCUITS 8-HC16 (WH/RD) AND 9-HC16 (BN/RD) FOR A SHORT TO GROUND
    • Measure the resistance between driver seat backrest TED C3034-3, circuit 8-HC16 (WH/RD), harness side and ground; and between driver seat backrest TED C3034-2, circuit 9-HC16 (BN/RD), harness side and ground.

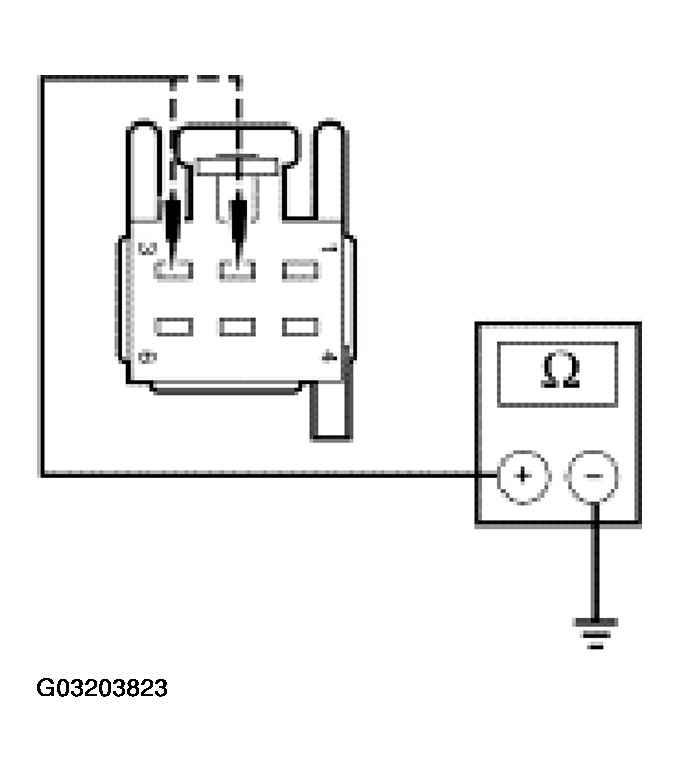

      Fig 10: Measuring Resistance Between Driver Seat Backrest TED C3034-3, Circuit 8-HC16 (WH/RD), Harness Side And Ground
      G03203823Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    1. Yes  : GO to V19.
    2. No  : REPAIR the affected circuit(s). CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  19. V19 CHECK THE SEAT BACKREST TED TEMPERATURE SENSOR CIRCUITS 8-HC16 (WH/RD) AND 9-HC16 (BN/RD) FOR AN OPEN
    • Measure the resistance between driver seat backrest TED C3034-3, circuit 8-HC16 (WH/RD), harness side and driver CCSM C3031b-19, circuit 8-HC16 (WH/RD), harness side; and between driver seat backrest TED C3034-2, circuit 9-HC16 (BN/RD), harness side and driver CCSM C3031b-20, circuit 9-HC16 (BN/RD), harness side.

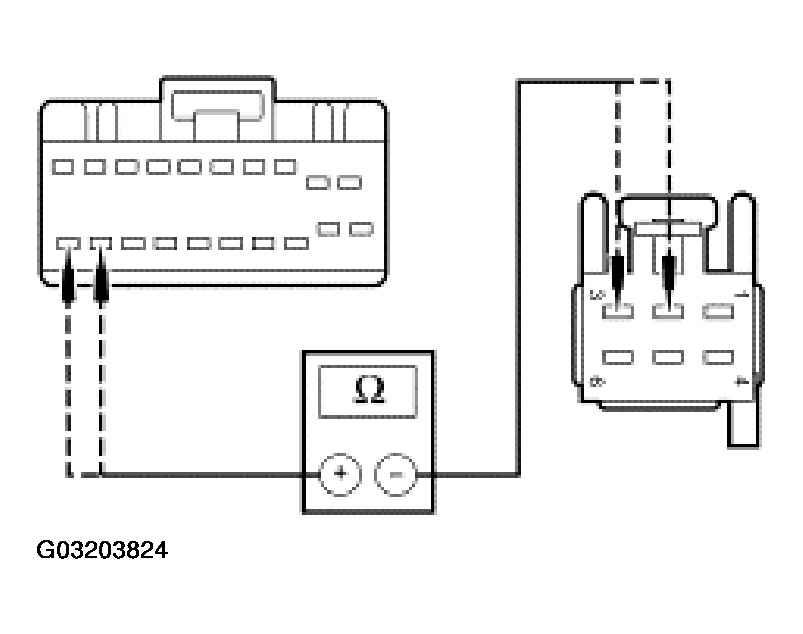

      Fig 11: Measuring Resistance Between Driver Seat Backrest TED C3034-3, Circuit 8-HC16 (WH/RD), Harness Side
      G03203824Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    1. Yes  : GO to V20.
    2. No  : REPAIR the affected circuit. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  20. V20 CHECK THE SEAT BACKREST TEMPERATURE SENSOR
    • Measure the resistance between the seat backrest TED pin 2 and pin 3, component side.

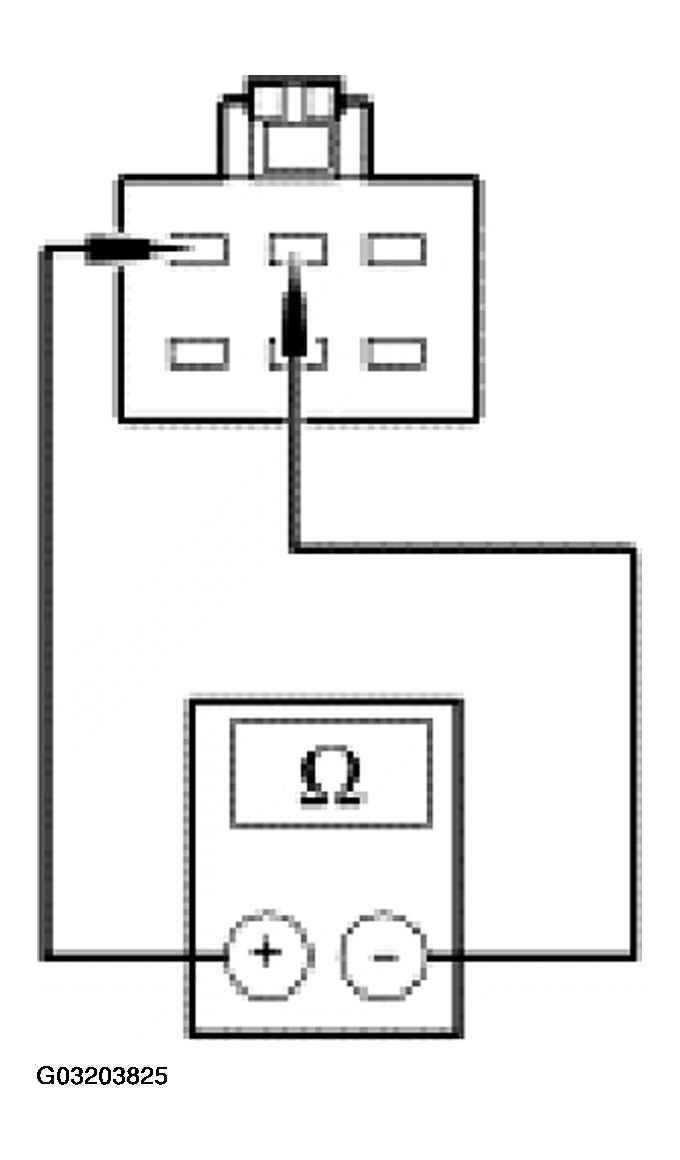

      Fig 12: Measuring Resistance Between Seat Backrest TED Pin 2 And Pin 3, Component Side
      G03203825Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 1,000 ohms?
    1. Yes  : INSTALL a new CCSM. CONFIGURE the CCSM. REFER to MODULE COMMUNICATIONS NETWORK - LS . CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
    2. No  : INSTALL a new seat backrest TED. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  21. V21 CHECK THE SEAT BACKREST TED HEATING ELEMENT CIRCUITS 31S-HC16 (BK/BU) AND 20S-HC16 (PK/BU) FOR A SHORT TO VOLTAGE
    • Key in OFF position.
    • Disconnect: Driver Seat Backrest TED C3034.
    • Disconnect: Driver CCSM C3031b.
    • Key in ON position.
    • Measure the voltage between driver seat backrest TED C3034-4, circuit 31S-HC16 (BK/BU), harness side and ground; and between driver seat backrest TED C3034-6, circuit 20S-HC16 (PK/BU), harness side and ground.
      Fig 13: Measuring Voltage Between Driver Seat Backrest TED C3034-4, Circuit 31S-HC16 (BK/BU), Harness Side And Ground
      G03203826Courtesy of FORD MOTOR CO.
    • Are the voltages less than 0.2 volt?
    1. Yes  : GO to V22.
    2. No  : REPAIR the affected circuits. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  22. V22 CHECK THE SEAT BACKREST TED HEATING ELEMENT CIRCUITS 31S-HC16 (BK/BU) AND 20S-HC16 (PK/BU) FOR A SHORT TO GROUND
    • Measure the resistance between driver seat backrest TED C3034-4, circuit 31S-HC16 (BK/BU), harness side and ground; and between driver seat backrest TED C3034-6, circuit 20S-HC16 (PK/BU), harness side and ground.
      Fig 14: Measuring Resistance Between Driver Seat Backrest TED C3034-4, Circuit 31S-HC16 (BK/BU), Harness Side And Ground
      G03203827Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    1. Yes  : GO to V23.
    2. No  : REPAIR the affected circuit(s). CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  23. V23 CHECK THE SEAT BACKREST TED HEATING ELEMENT CIRCUITS 31S-HC16 (BK/BU) AND 20S-HC16 (PK/BU) FOR AN OPEN
    • Measure the resistance between driver seat backrest TED C3034-4, circuit 31S-HC16 (BK/BU), harness side and driver CCSM C3031b-12, circuit 31S -HC16 (BK/BU), harness side; and between driver seat backrest TED C3034-6, circuit 20S-HC16 (PK/BU), harness side and driver CCSM C3031b-11, circuit 20S-HC16 (PK/BU), harness side.

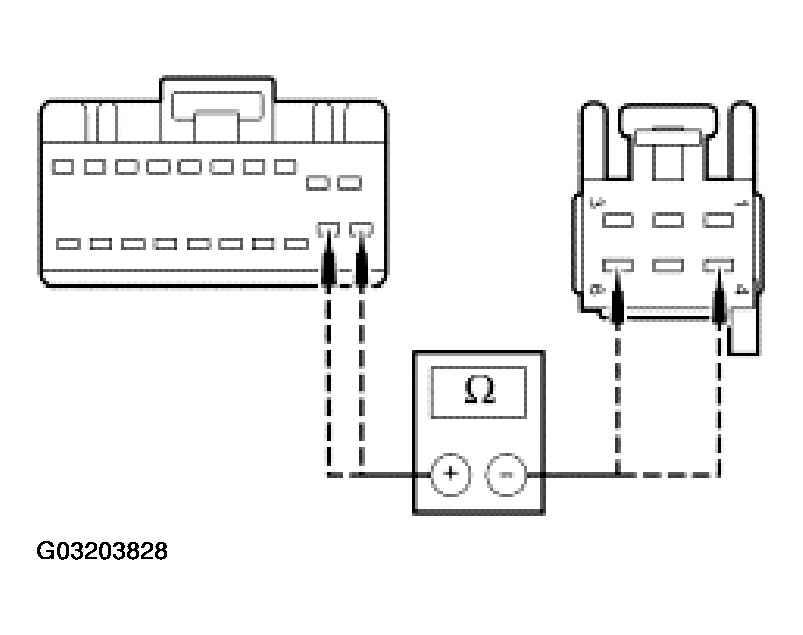

      Fig 15: Measuring Resistance Between Driver Seat Backrest TED C3034-4, Circuit 31S-HC16 (BK/BU), Harness Side
      G03203828Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    1. Yes  : GO to V24.
    2. No  : REPAIR the affected circuit. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
  24. V24 CHECK THE SEAT BACKREST TED
    • Measure the resistance between the seat backrest TED pin 4 and pin 6, component side.

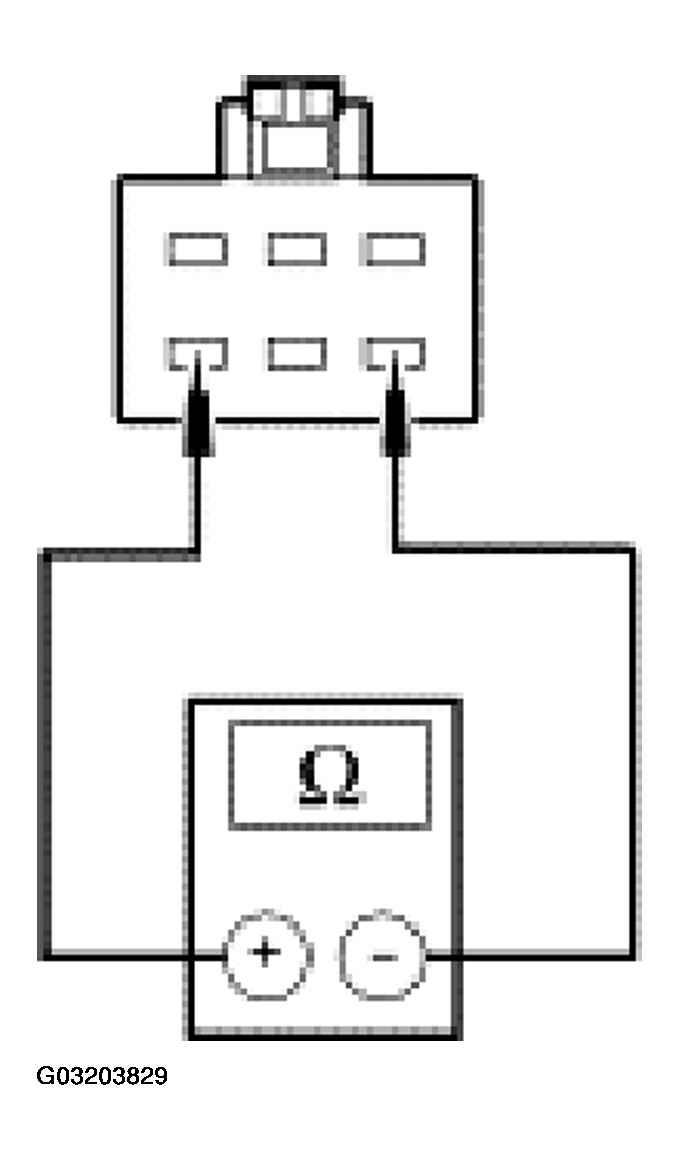

      Fig 16: Measuring Resistance Between Seat Backrest TED Pin 4 And Pin 6, Component Side
      G03203829Courtesy of FORD MOTOR CO.
    • Is the resistance between 0.5 and 7 ohms?
    1. Yes  : INSTALL a new CCSM. CONFIGURE the CCSM. REFER to MODULE COMMUNICATIONS NETWORK - LS . CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
    2. No  : INSTALL a new seat backrest TED. CLEAR the DTCs. REPEAT the self test. TEST the system for normal operation. TURN the ignition OFF. DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C316. CONNECT driver seat side air bag module C316. REPOWER the supplemental restraint system (SRS). REFER to AIR BAG RESTRAINT SYSTEMS .
