Radiator Grille Opening Panel

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper cover. For additional information, refer to FRONT BUMPER .
Remove the components in the order listed in the following illustration and table.

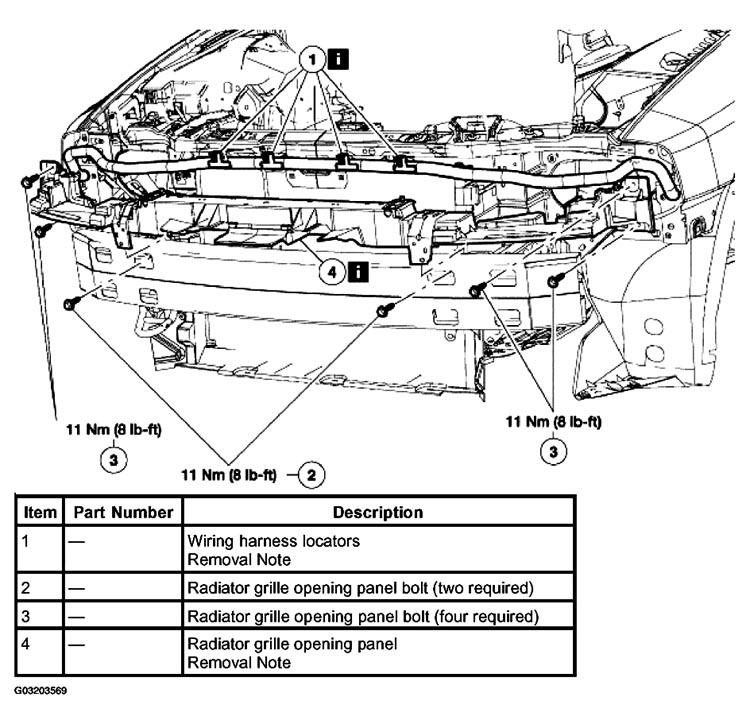

Fig 1: Removing Radiator Grille Opening Panel Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 1: Wiring Harness Removal Note

Release the wiring harness locators and position the harness aside.

Item 4: Radiator Grille Opening Panel Removal Note

Release the ambient air temperature sensor.

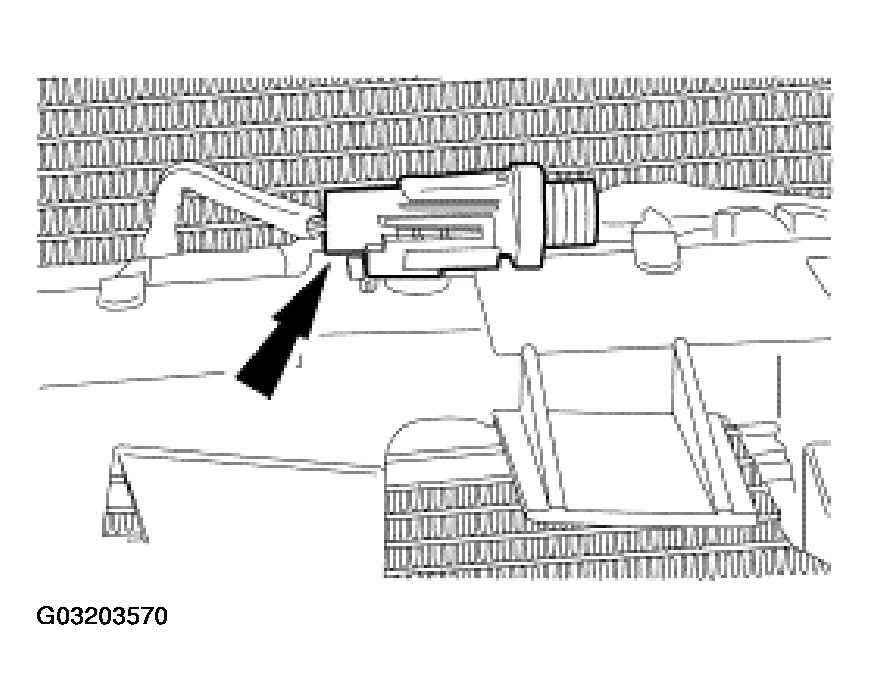

Fig 2: Releasing Ambient Air Temperature Sensor
Courtesy of FORD MOTOR CO.
