Pinpoint Test M: The STOPLAMPS Are Inoperative

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. M1 CHECK THE BPP SWITCH INPUT
    • Key in OFF position.
    • Connect the diagnostic tool.
    • Key in ON position.
    • Monitor the REM BPP switch status PID while pressing and releasing the brake pedal.
    • Does the PID indicate active with the brake pedal pressed and inactive with the brake pedal released?
    1. Yes  : GO to  M8.
    2. No  : GO to M2.
  2. M2 CHECK CIRCUIT 29-CF58 (OG/GN) FOR AN OPEN
    • Key in OFF position.
    • Disconnect: BPP Switch C278.
    • Measure the voltage between the BPP switch C278-1, circuit 29-CF58 (OG/GN), harness side and ground.

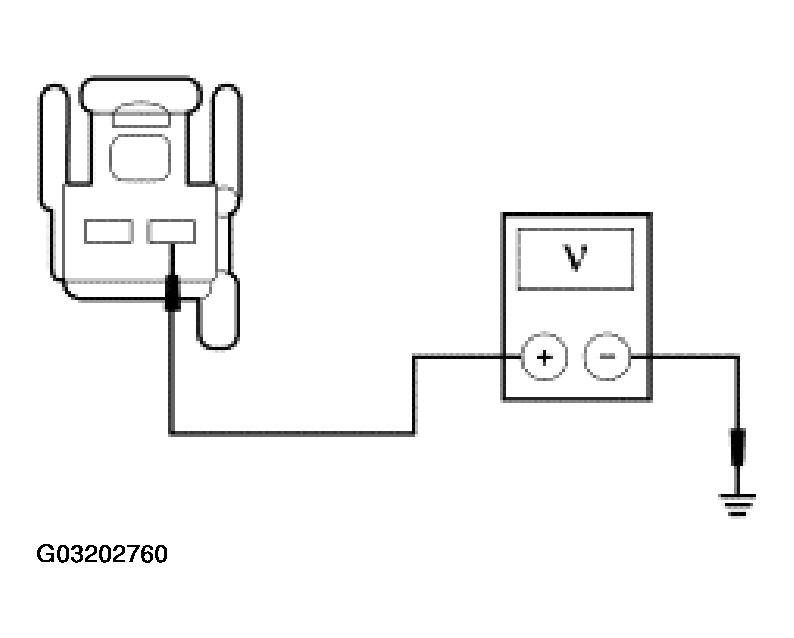

      Fig 1: Measuring Voltage Between BPP Switch C278-1, Circuit 29-Cf58 (OG/GN), Harness Side And Ground
      G03202760Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    1. Yes  : GO to M3.
    2. No  : REPAIR the circuit. TEST the system for normal operation.
  3. M3 CHECK THE BPP SWITCH
    • Connect a fused (5A) jumper wire between the BPP switch C278-1, circuit 29-CF58 (OG/GN), harness side and the BPP switch C278-2, circuit 29S-CF1 (OG/YE), harness side.

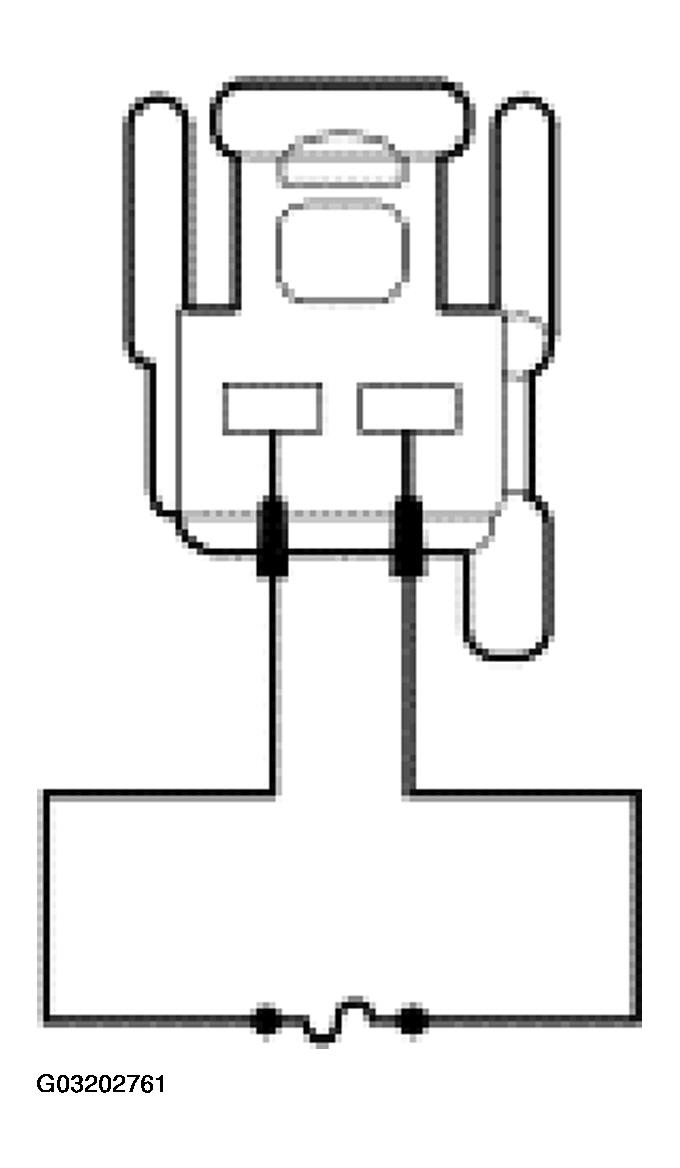

      Fig 2: Connecting Fused (5A) Jumper Wire Between BPP Switch C278-1, Circuit 29-Cf58 (OG/GN), Harness Side
      G03202761Courtesy of FORD MOTOR CO.
    • Do the stoplamps illuminate?
    1. Yes  : INSTALL a new BPP switch. REFER to BRAKE PEDAL POSITION (BPP) SWITCH . TEST the system for normal operation.
    2. No  : If not equipped with IVD, GO to M4.

      If equipped with IVD, GO to  M5.

  4. M4 CHECK THE BPP SWITCH INPUT CIRCUIT TO THE REM
    • Connect: BPP Switch C278.
    • Disconnect: REM C420b.
    • Measure the voltage between the REM C420b-13, circuit 29S -DK30 (OG), harness side and ground while pressing the brake pedal.

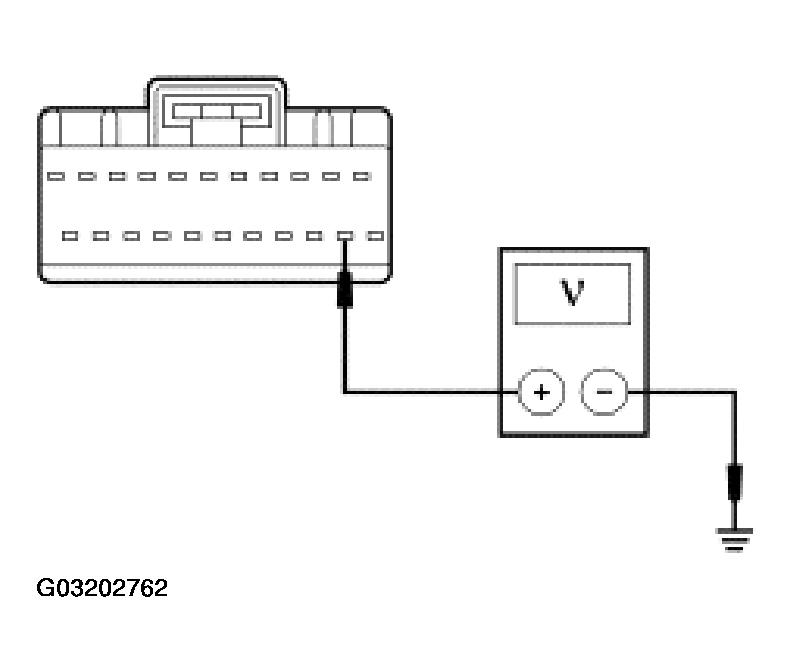

      Fig 3: Measuring Voltage Between REM C420B-13, Circuit 29S -Dk30 (OG), Harness Side And Ground
      G03202762Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    1. Yes  : GO to  M8.
    2. No  : REPAIR the BPP input circuit between the REM and BPP switch. TEST the system for normal operation.
  5. M5 CHECK THE BPP SWITCH OUTPUT CIRCUIT TO THE IVD MODULE
    • Disconnect: IVD Module C155.
    • Measure the voltage between the IVD module C155-41, circuit 29S-CF1 (OG/YE), harness side and ground while pressing the brake pedal.

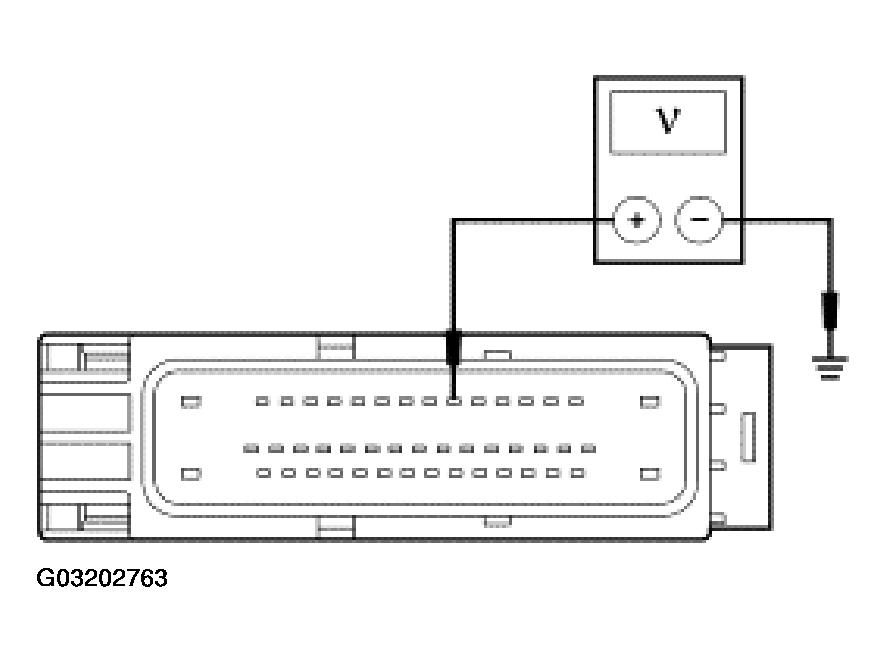

      Fig 4: Measuring Voltage Between IVD Module C155-41, Circuit 29S-Cf1 (OG/YE), Harness Side And Ground
      G03202763Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    1. Yes  : GO to M6.
    2. No  : REPAIR the BPP input circuit between the IVD module and BPP switch. TEST the system for normal operation.
  6. M6 CHECK THE IVD MODULE
    • Connect a fused (5A) jumper wire between the IVD module C155-41, circuit 29S-CF1 (OG/YE), harness side and the IVD module C155-44, circuit 29S-CF2 (OG/BU), harness side.

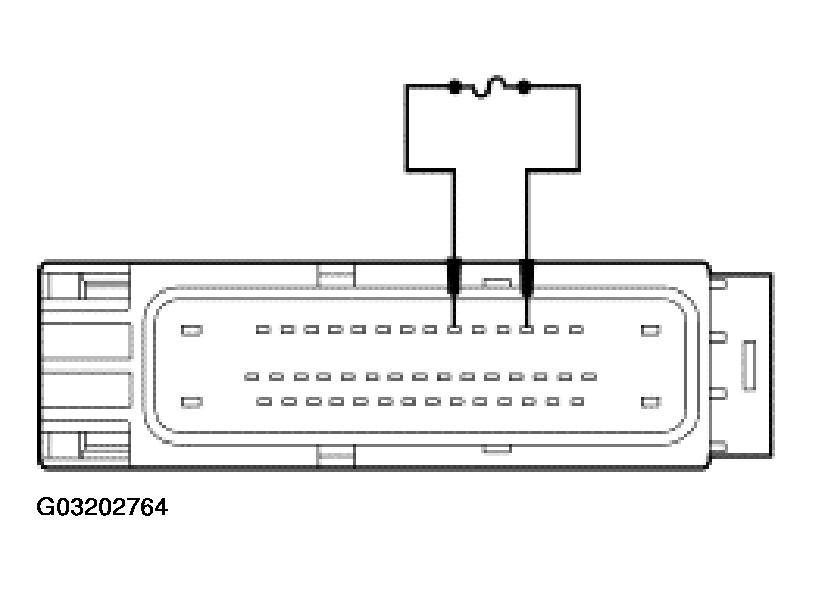

      Fig 5: Connecting Fused (5A) Jumper Wire Between IVD Module C155-41, Circuit 29S-CF1 (OG/YE), Harness Side
      G03202764Courtesy of FORD MOTOR CO.
    • Press the brake pedal and observe the stoplamps.
    • Do the stoplamps illuminate?
    1. Yes  : GO to  M9.
    2. No  : LEAVE the jumper wire connected. GO to M7.
  7. M7 CHECK THE IVD MODULE OUTPUT CIRCUIT TO THE REM
    • Disconnect: REM C420b.
    • Measure the voltage between the REM C420b-13, circuit 29S -DK30 (OG), harness side and ground while pressing the brake pedal.
      Fig 6: Measuring Voltage Between REM C420B-13, Circuit 29S -Dk30 (OG), Harness Side And Ground
      G03202765Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    1. Yes  : GO to M8.
    2. No  : REPAIR circuit 29S-CF2 (OG/BU) or 29S-DK30(OG). TEST the system for normal operation.
  8. M8 CHECK FOR REM OPERATION
    • Key in OFF position.
    • Disconnect all REM connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all REM connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
    1. Yes  : INSTALL a new REM. Refer to MODULE COMMUNICATIONS NETWORK TEST the system for normal operation.
    2. No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. REPEAT the self-test.
  9. M9 CHECK FOR IVD MODULE OPERATION
    • Key in OFF position.
    • Disconnect the IVD module connector.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect the IVD module connector and make sure it seats correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
    1. Yes  : INSTALL a new IVD module. REFER to ANTI-LOCK CONTROL . TEST the system for normal operation.
    2. No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. REPEAT the self-test.
