Brake Pedal Position (BPP) Switch

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order indicated in the following illustration and table.

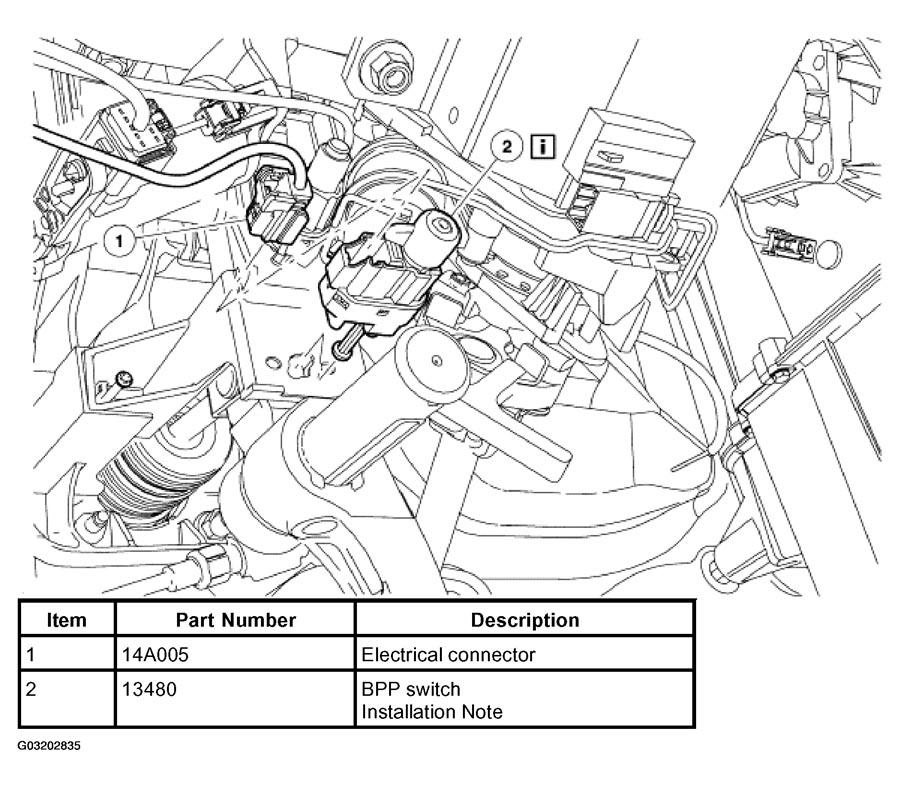

Fig 1: Removing Components In Order
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 2: BPP Switch Installation Note

CAUTION: Initial installation of the brake pedal position (BPP) switch allows for one adjustment. If additional adjustments are required, install a new BPP switch.

Rotate the knob counterclockwise to the stop to unlock.

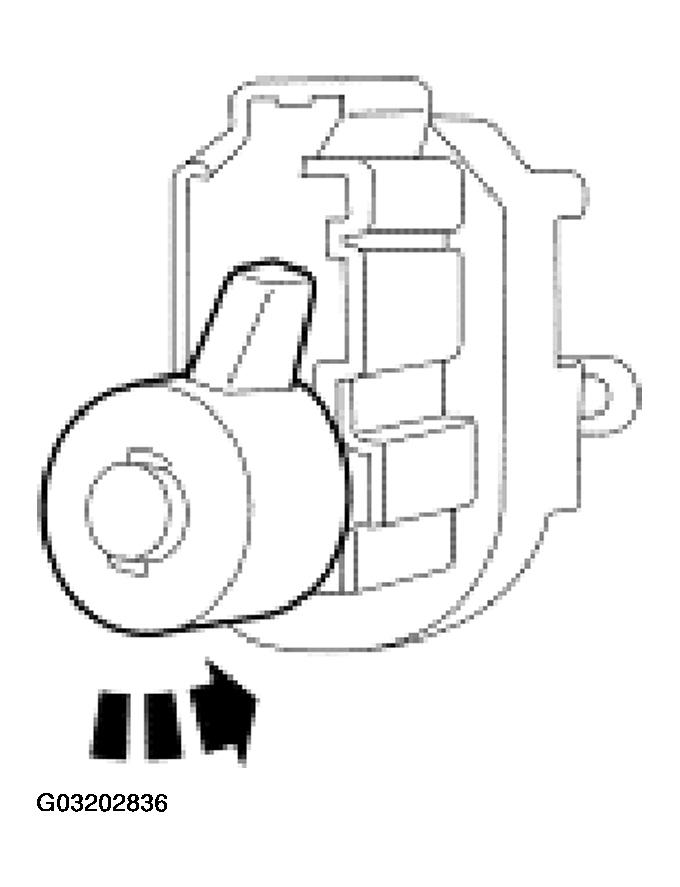

Fig 2: Rotating Knob Counterclockwise To Stop
Courtesy of FORD MOTOR CO.
With the engine running, fully depress the brake pedal.
Install the BPP switch and slowly release the brake pedal.
