Parking Aid Switch

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the parts in the order indicated in the following illustration and table.

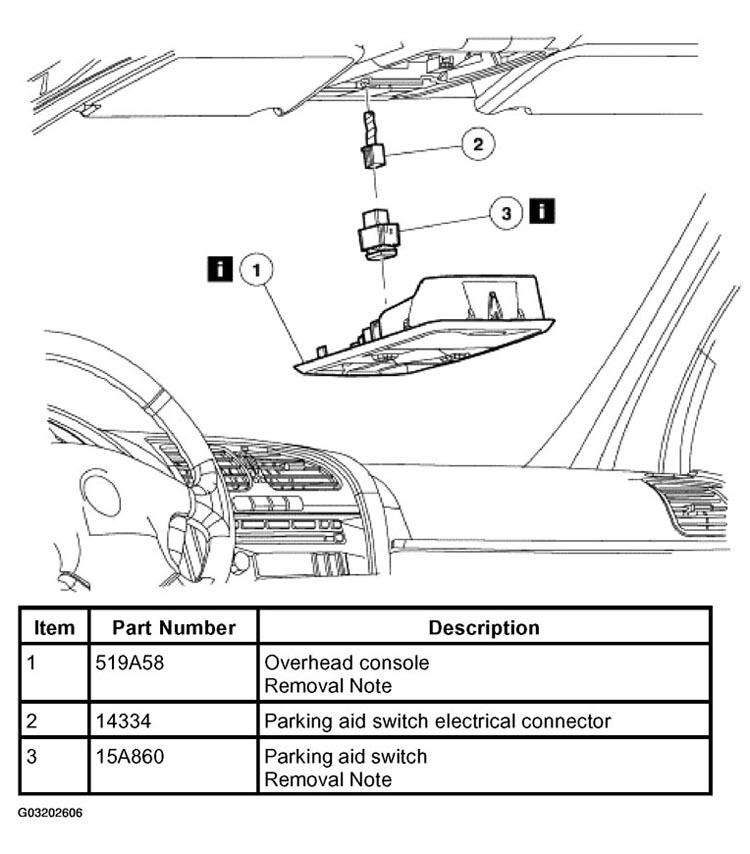

Fig 1: Identifying Removing Sequence Of Parking Aid Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 1: Overhead Console Removal Note

The overhead console is held in place by spring clips located on the panel.

Item 3: Parking Aid Switch Removal Note

Press the retaining tabs to remove the parking aid switch
