Parking Aid Sensor

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear bumper cover. For additional information, refer to EXTERIOR TRIM .
Remove the parts in the order indicated in the following illustration and table.

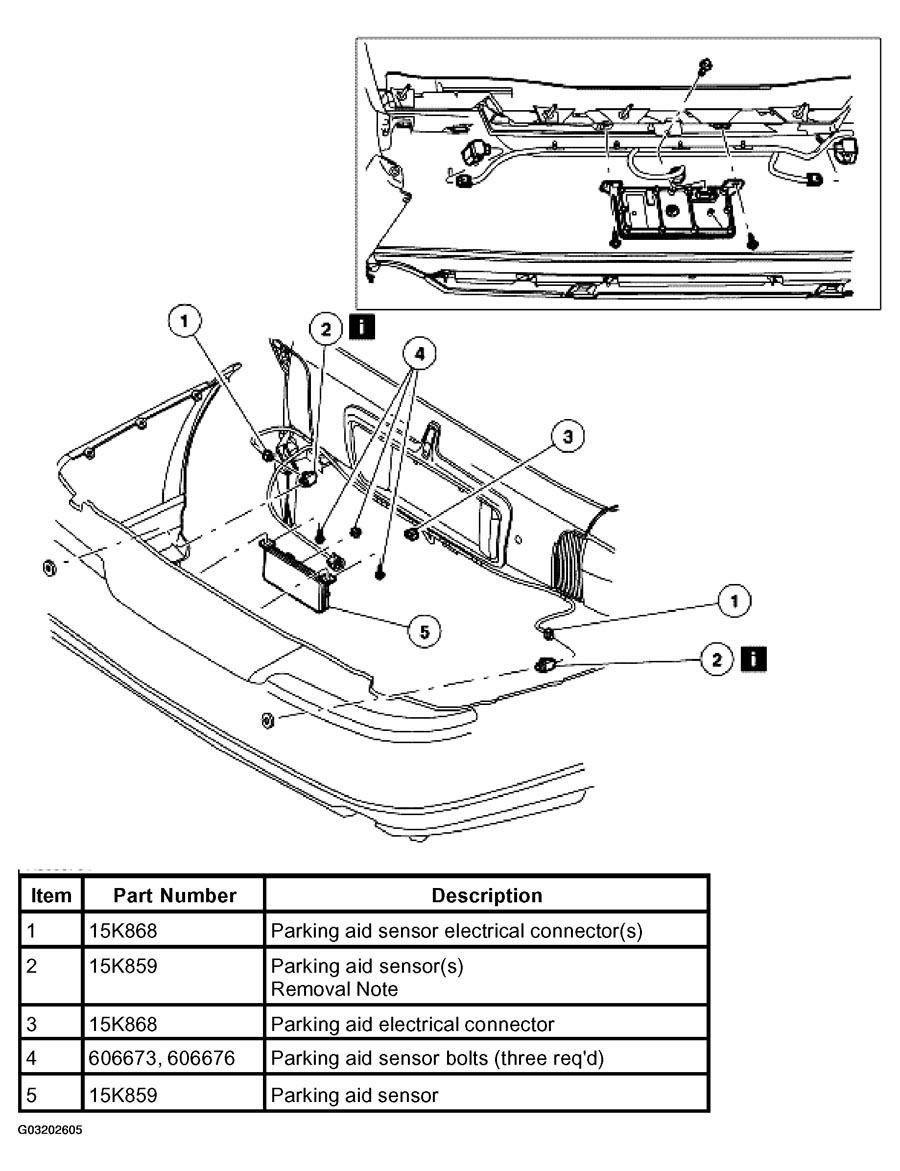

Fig 1: Identifying Removing Sequence Of Parking Aid Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 2: Parking Aid Sensor Removal Note

Press the retaining tabs to remove the parking aid sensor.
