Parking Aid Module

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parcel shelf. For additional information, refer to INTERIOR TRIM .
  2. Remove the parts in the order indicated in the following illustration and table.

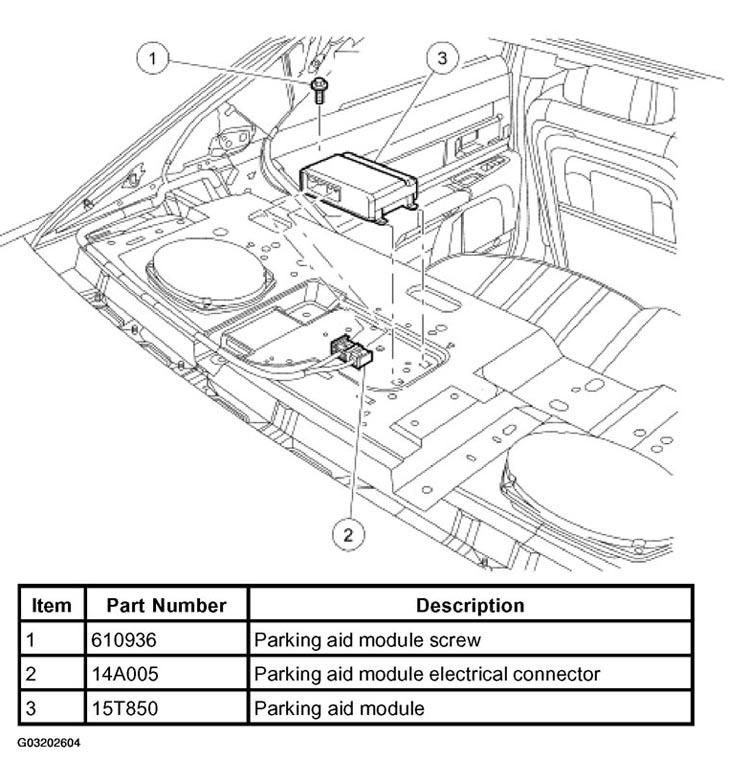

    Fig 1: Identifying Removing Sequence Of Parking Aid Module
    G03202604Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
