Instrument Cluster and Panel Illumination

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel steering column cover. For additional information, refer to INTERIOR TRIM .
Remove the parts in the order indicated in the following illustration and table.

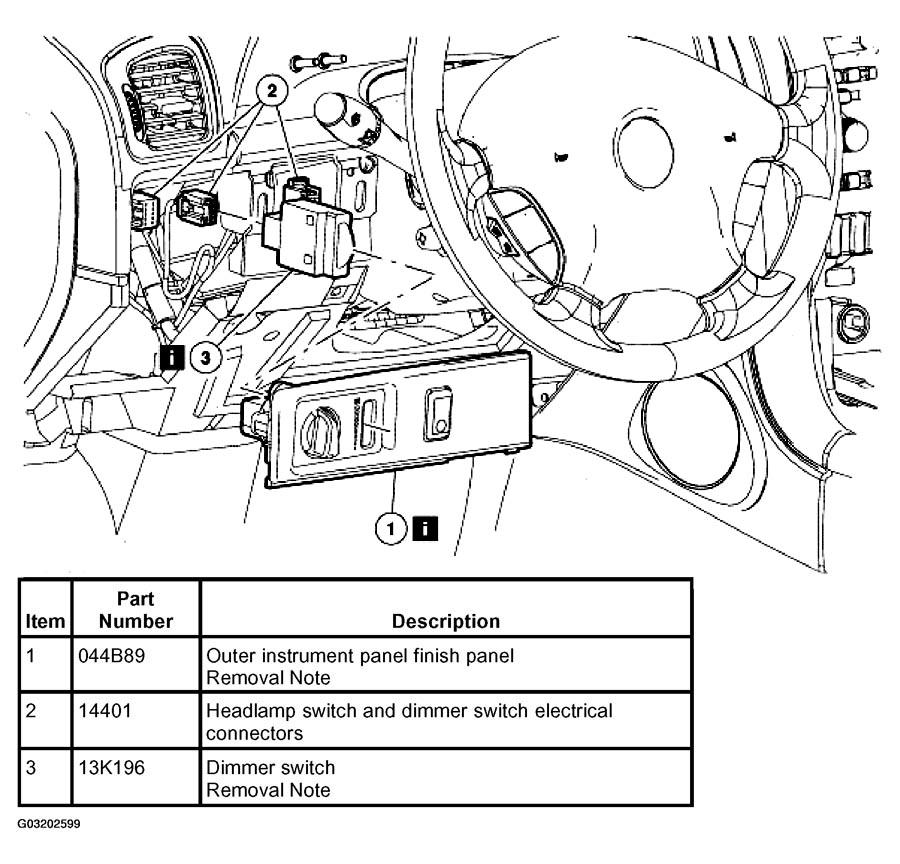

Fig 1: Identifying Removing Sequence Of Instrument Cluster And Panel Illumination
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 1: Outer Instrument Panel Finish Panel Removal Note

The outer instrument panel finish panel is held in place by spring clips located on the housing.

Item 3: Dimmer Switch Removal Note

Release the retaining tabs to remove the dimmer switch.
